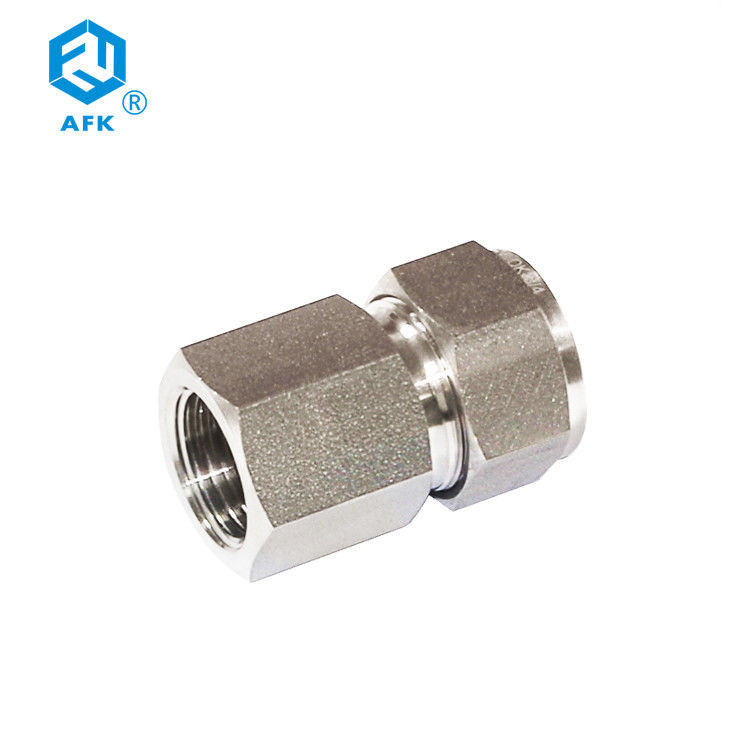

NPT Thread Stainless Steel Connector Custom Ferrule Forged

NPT Thread Stainless Steel Connector Custom Ferrule Forged
NPT Thread Stainless Steel Connector Custom Ferrule Forged NPT Thread Stainless Steel Connector Custom Ferrule Forged

Large Image :  NPT Thread Stainless Steel Connector Custom Ferrule Forged

Product Details:
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: FC
Payment & Shipping Terms:
Minimum Order Quantity: 1~10
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 1WEEK
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000PC

NPT Thread Stainless Steel Connector Custom Ferrule Forged

Description
Material: Stainless Steel,Stainless Steel 304 Or 316,Stainless Steel304 316L Head Code: Other
Connection: Male,Female Technics: Forged
Thread: NPT Medium: Water,Gas
Warranty: 1 Year Siez: 1/4 , 1/8 , 1/2 , 3/4
High Light:

Custom Ferrule Stainless Steel Connector

,

NPT Thread Stainless Steel Connector

,

Forged Metal Tube Connector

Components Of Ferrule Joint

AFK ferrule joint is composed of front ferrule, rear ferrule, ferrule nut and joint body. Advanced design and strict quality control ensure that the pipe joint is completely sealed under the correct installation.



Features of AFK ferrule joint

easy to install correctly;

installation will not transfer the torsion cabinet to ferrule.



NPT Thread Stainless Steel Connector Custom Ferrule Forged 0

Selection Table

Part No.

Tube OD

T

P

NPT

Dimensions(mm)

E

Min.

h H F I L
inch mm inch mm inch mm
FC-0202N 1/8 3.17 1/8 2.3 9/16 14.28 7/16 11.11 12.7 22.1 28.7
FC-0204N 1/8 3.17 1/4 2.3 3/4 19.05 7/16 11.11 12.7 26.9 33.5
FC-0302N 3/16 4.76 1/8 3.0 9/16 14.28 1/2 12.70 13.7 23.1 29.7
FC-0402N 1/4 6.35 1/8 4.8 9/16 14.28 9/16 14.28 15.2 23.9 31.2
FC-0404N 1/4 6.35 1/4 4.8 3/4 19.05 9/16 14.28 15.2 28.4 35.8
C-0406N 1/4 6.35 3/8 4.8 7/8 22.22 9/16 14.28 15.2 30.2 37.6
FC-0408N 1/4 6.35 1/2 4.8 1-1/16 26.98 9/16 14.28 15.2 35.1 42.4
FC-0502N 5/16 7.93 1/8 6.4 9/16 14.28 5/8 15.87 16.3 24.6 32.0
FC-0504N 5/16 7.93 1/4 6.4 3/4 19.05 5/8 15.87 16.3 29.5 36.8
FC-0602N 3/8 9.52 1/8 7.1 5/8 15.87 11/16 17.46 16.8 25.4 32.8
FC-0604N 3/8 9.52 1/4 7.1 3/4 19.05 11/16 17.46 16.8 30.2 37.6
FC-0606N 3/8 9.52 3/8 7.1 7/8 22.22 11/16 17.46 16.8 31.8 39.1
FC-0608N 3/8 9.52 1/2 7.1 1-1/16 26.98 11/16 17.46 16.8 36.6 43.9
FC-0612N 3/8 9.52 3/4 7.1 1-5/16 33.33 11/16 17.46 16.8 40.4 47.8
FC-0804N 1/2 12.70 1/4 10.4 13/16 20.63 7/8 22.22 22.9 30.2 40.4
FC-0806N 1/2 12.70 3/8 10.4 7/8 22.22 7/8 22.22 22.9 31.8 41.9
FC-0808N 1/2 12.70 1/2 10.4 1-1/16 26.98 7/8 22.22 22.9 36.6 46.7
FC-0812N 1/2 12.70 3/4 10.4 1-5/16 33.33 7/8 22.22 22.9 38.1 48.3
FC-1006N 5/8 15.87 3/8 12.7 15/16 23.81 1 25.40 24.4 31.8 41.9
FC-1008N 5/8 15.87 1/2 12.7 1-1/16 26.98 1 25.40 24.4 36.6 46.7
FC-1208N 3/4 19.05 1/2 15.7 1-1/16 26.98 1-1/8 28.57 24.4 36.6 46.7
FC-1212N 3/4 19.05 3/4 15.7 1-5/16 33.33 1-1/8 28.57 24.4 38.1 48.3
FC-1412N 7/8 22.22 3/4 18.3 1-5/16 33.33 1-1/4 31.75 25.9 39.6 49.8
FC-1612N 1 25.40 3/4 22.4 1-3/8 34.92 1-1/2 38.10 31.2 41.1 53.3
FC-1616N 1 25.40 1 22.4 1/5-8 41.27 1-1/2 38.10 31.2 50.0 62.2
FC-2020N 1-1/4 31.75 1-1/4 27.7 2-1/8 53.98 1-7/8 47.63 41.1 52.6 74.7
FC-2424N 1-1/2 38.10 1-1/2 34.0 2-3/8 60.33 2-1/4 57.15 50.0 56.1 83.3
FC-3232N 2 50.80 2 46.0 2-7/8 73.03 3 76.20 67.6 64.3 101.6
