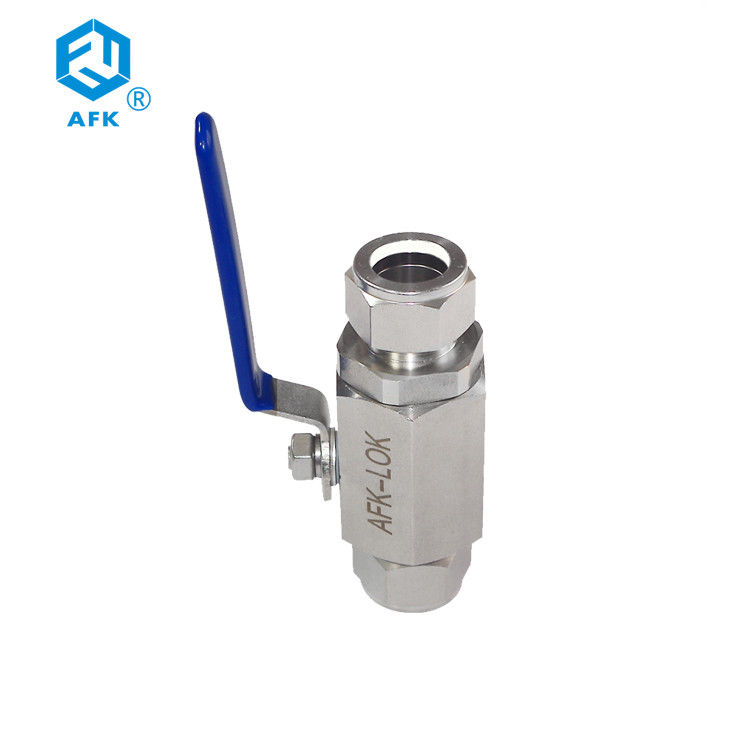

6000PSI Forged Stainless Steel Ball Valve ASME With Straight Handle
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Stainless Steel,316L,Stainless Steel 304 Or 316,Stainless Steel304 316L | Head Code | Other |
|---|---|---|---|
| Technics | Forged | Medium | Oil,Water,Gas |
| Pressure | 6000PSI | Warranty | 1 Year |
| Standard Or Nonstandard | Standard | Connection | Flanged, Threaded, Welded |
| High Light | Forged Stainless Steel Ball Valve,6000PSI Stainless Steel Ball Valve,ASME High Pressure Ball Valve |
||
Product Description
Features
1000WOG , PN63
Reduce Purt
Locking Device Handle Upon Request
Blow-Out Proof Stem
PTFE Packing Sealing
Design Standard : ASME B16.34
Thread : ASME B1.201/BS21/DIN2999/DIN259/ISO288/1
Testing Standard : API598/SP-110
pressure Testing
| Standard pressure : | 1000 PSI |
| Shell Pressure Tesing : | 10.4 Mpa |
| Water Seal Tesing : | 7.6 Mpa |
| Air Seal Testing : | 0.4-0.7 Mpa |
Selection Table
| Size | L | Φd | H | W | Torque N.M | cv |
| 1/4" | 41 | 5 | 35 | 65 | 3 | 2 |
| 3/8" | 45 | 7 | 37 | 70 | 3 | 1.2 |
| 1/2" | 55 | 9 | 44 | 90 | 3 | 1.3 |
| 3/4" | 59 | 12.5 | 47 | 90 | 4 | 2 |
| 1" | 70 | 15 | 50 | 105 | 5 | 3.4 |
| 1-1/4" | 76 | 20 | 57 | 105 | 7 | 7.1 |
| 1-1/2" | 84 | 25 | 69 | 130 | 8 | 12.4 |
| 2 | 97 | 32 | 75 | 130 | 15 | 20.3 |
| 2-1/2" | 124 | 40 | 95 | 180 | 22 | 28.5 |
| 3" | 148 | 49 | 105 | 180 | 25 | 47.5 |
Material List
| Item | Part Name | Material | ||
| 1 | Body | CF8M | CF8 | WCB |
| 2 | Thrust Washer | PTFE | ||
| 3 | Stem Packing | PTFE | ||
| 4 | Gland | SS304 | ||
| 5 | Handle | SS304 | ||
| 6 | Stop Washer | SS304 | ||
| 7 | Nut | SS304 | ||
| 8 | Stem | SS316 | SS304 | |
| 9 | Handle Cover | VINYL | ||
| 10 | Ball Seat | PTFE | R-PTFE | |
| 11 | Ball | SS316 | SS304 | |
| 12 | End cap | CF8M | CF8 | |
