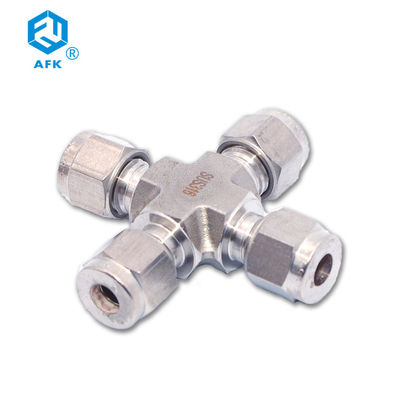

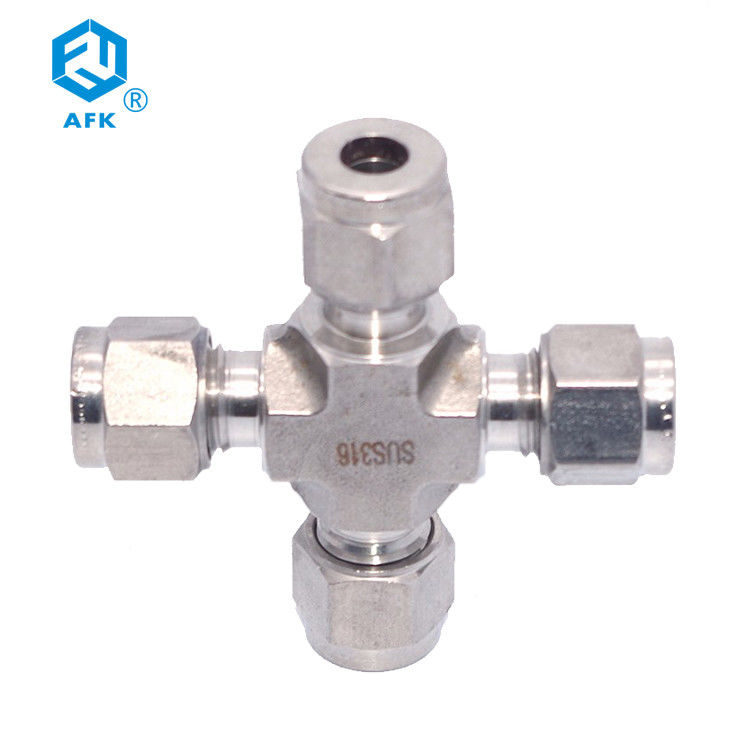

AFK Stainless Steel Pipe Fittings Four Way Ferrule Joint Dual Ferrule
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Stainless Steel,316L,Stainless Steel 304 Or 316,Stainless Steel304 316L | Technics | Forged |
|---|---|---|---|
| Medium | Gas | Name | Stainless Steel Tube Fittings |
| Connection Mode | Dual Ferrule | Shape | Equal |
| Head Code | Hexagon | Size | 1/4 , 1/8 , 1/2 , 3/8 |
| High Light | AFK Stainless Steel Pipe Fittings,Ferrule Joint Stainless Steel Pipe Fittings,Dual Ferrule Forged Stainless Steel Fittings |
||
Product Description
Short Description:
Product Name Union Cross
Material: stainless steel 316
Connection: OD
UNION CROSS
(METRIC)
|
T TUBE O.D. |
CATALOG NUMBER |
A | D | E | F | G | H | J | K |
| 3 | UCR-3-0 | 25.5 | 14.0 | 2.4 | 12 | 10 | 18.5 | 37 | 51.0 |
| 6 | UCR 书 2 | 30.2 | 15.2 | 5 | 14 | 14 | 23 | 46 | 60.4 |
| 8 | UCR-8-0 | 30.5 | 16.5 | 6 | 14 | 17 | 23 | 46 | 61.0 |
| 10 | UCR-10-0 | 31.5 | 19.5 | 8 | 17 | 19 | 24 | 48 | 63.0 |
| 12 | UCR-12-0 | 37.0 | 23.6 | 10 | 20 | 22 | 26 | 52 | 74.0 |
(FRACTIONAL)
|
T TUBE O.D. |
CATALOG NUMBER | A | D | E | F | G | H | J | K |
| 1/8 | UCR-01-0 | 25.5 | 14.0 | 2 | 12 | 10 | 18.5 | 37 | 51.0 |
| 1/4 | UCR-02-0 | 30.2 | 15.2 | 5 | 14 | 14 | 23 | 46 | 60.4 |
| 3/8 | UCR-03-0 | 31.5 | 18.8 | 8 | 17 | 19 | 24 | 48 | 63.0 |
| 1/2 | UCR-04-0 | 37.0 | 23.6 | 10 | 22 | 22 | 26 | 52 | 74.0 |
