NPT Connector Union SS316 Screwed Tube Fittings 8mm 3000PSI

Product Details

Place of Origin: China

Brand Name: AFK

Certification: CE

Model Number: MC

Payment & Shipping Terms

Minimum Order Quantity: 1~10

Price: Negotiable

Packaging Details: Expotrt Packing

Delivery Time: 1WEEK

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 5000PC

Get Best Price
Contact Now
Specifications
Highlight:

NPT Connector Union Screwed Tube Fittings

,

SS316 Screwed Tube Fittings

,

3000PSI Stainless Steel Pipe Fittings

Material:
Stainless Steel,316L,Stainless Steel 304 Or 316,Stainless Steel304 316L
Head Code:
Hexagon
Connection:
Female
Technics:
Forged
Medium:
Water,Gas
Pressure:
3000PSI
Warranty:
1 Year
Size:
3mm , 4mm , 6mm , 8mm
Material:
Stainless Steel,316L,Stainless Steel 304 Or 316,Stainless Steel304 316L
Head Code:
Hexagon
Connection:
Female
Technics:
Forged
Medium:
Water,Gas
Pressure:
3000PSI
Warranty:
1 Year
Size:
3mm , 4mm , 6mm , 8mm
Description
NPT Connector Union SS316 Screwed Tube Fittings 8mm 3000PSI

Product Introduction

Product Name: MOP O-Seal Pipe Thread Connector Material:stainless steel 316, ss304

Working pressure :3000PSI

End Connection :Tube O.D. X male (BSPP, NPT, BSPT), Tube O.D. X female (BSPP, NPT, BSPT)

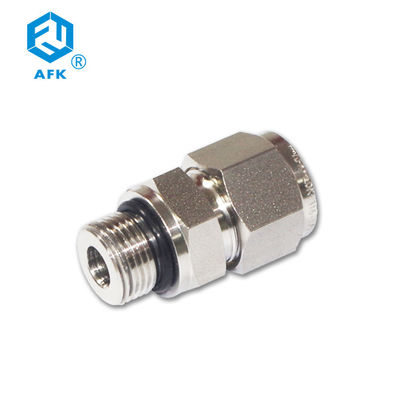

NPT Connector Union SS316 Screwed Tube Fittings 8mm 3000PSI 0

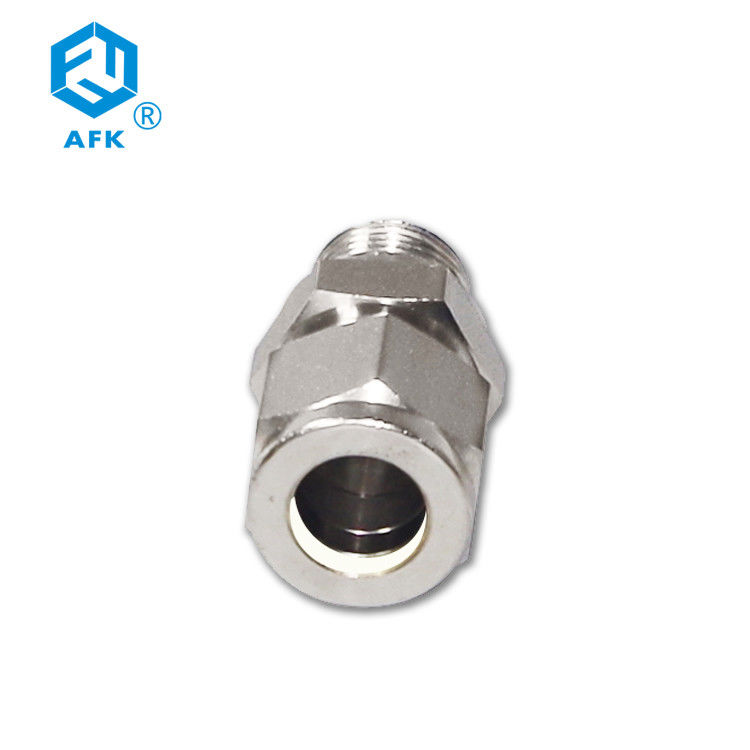

NPT Connector Union SS316 Screwed Tube Fittings 8mm 3000PSI 1

NPT Connector Union SS316 Screwed Tube Fittings 8mm 3000PSI 2

Connects Fractional Tube to Female NPT Thread

Part No.

Tube OD

T



P

(NPT)



Dimensions(mm)

E

Min

h H F I I1 L
inch mm inch mm inch mm
 MOS-0202N 1/8 3.17 1/8 2.3 3/4 19.05 7/16 11.11 12.7 26.2 7.1 32.8
MOS-0402N 1/4 6.35 1/8 4.8 3/4 19.05 9/16 14.28 15.2 27.7 7.1 35.1
MOS-0404 1/4 6.35 1/4 4.8 15/16 23.81 9/16 14.28 15.2 31.0 9.7 38.4
MOS-06-04 3/8 9.52 1/4 7.1 15/16 23.81 11/16 17.46 16.8 32.5 9.7 39.9
MOS-06-06 3/8 9.52 3/8 7.1 1-1/8 28.57 11/16 17.46 16.8 34.0 10.4 41.4
MOS-06-08 3/8 9.52 1/2 7.1 1-5/16 33.33 11/16 17.46 16.8 39.6 13.5

47.0

MOS-08-08 1/2 12.70 1/2 10.4 1-5/16 33.33 7/8 22.22 22.9 39.6 13.5 49.8
