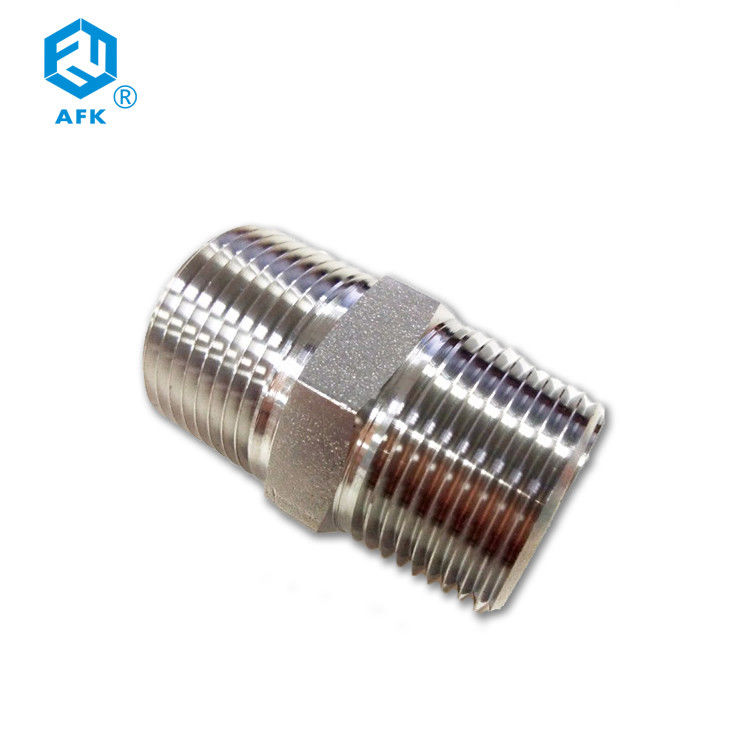

Forged Hexagon SS316 Threaded Joint Gas Pipe Fittings Double Thread NPT

Product Details

Place of Origin: China

Brand Name: AFK

Certification: CE

Model Number: HN

Payment & Shipping Terms

Minimum Order Quantity: 1~10

Price: Negotiable

Packaging Details: Expotrt Packing

Delivery Time: 1WEEK

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 5000PC

Get Best Price
Contact Now
Specifications
Highlight:

Forged Hexagon Gas Pipe Fittings

,

SS316 Threaded Joint Gas Pipe Fittings

,

Thread NPT Tube Threaded Joint

Material:
Stainless Steel,316L,Stainless Steel 304 Or 316,Stainless Steel304 316L
Shape:
Equal
Connection:
Male
Technics:
Forged
Application:
Water , Gas
Pressure:
3000psi
Material:
Stainless Steel,316L,Stainless Steel 304 Or 316,Stainless Steel304 316L
Shape:
Equal
Connection:
Male
Technics:
Forged
Application:
Water , Gas
Pressure:
3000psi
Description
Forged Hexagon SS316 Threaded Joint Gas Pipe Fittings Double Thread NPT
Type: Nipple
Material: Stainless Steel, Stainless Steel 316
Connection: Male, Double Male NPT
Shape:  Equal
Head Code:  Hexagon
Application:  Water Gas
Pressure:  3000PSI









Male NPT to Male NPT

Forged Hexagon SS316 Threaded Joint Gas Pipe Fittings Double Thread NPT 0



Part No.

P NPT

Dimensions (mm)

L

E

F

inch

mm

HM-02N

1/8

25.6

4.8

7/16

11.11

HN-04N

1/4

35.6

7.1

9/16

14.28

Hh-06N

3/8

36.3

9.6

11/16

17.46

HN-08lN

1/2

46.7

11.9

7/8

22.22

HN-12N

3/4

46.7

15.7

1-1/16

26.98

HN-16N

1

58.9

22.4

1-3/8

34.92

Male NPT to Male ISO Tapered Thread

Forged Hexagon SS316 Threaded Joint Gas Pipe Fittings Double Thread NPT 1

Part No.

P

NPT

P1

ISO7/1

Dimensions (mm)

L

E

F

inch

mm

HM-02N02R

1/8

1/8

25.6

4.8

7/16

11.11

HN-04N04R

1/4

1/4

35.6

7.1

9/16

14.28

HN-06N06R

3/8

3/8

36.3

9.6

11/16

17.46

HN-08N08R

1/2

1/2

46.7

11.9

7/8

22.22

HN-12N12R

3/4

3/4

46.7

15.7

1-1/16

26.98

HN-16N16R

1

1

58.9

22.4

1-3/8

34.92



Male NPT to Male SO Parallel Thread

Forged Hexagon SS316 Threaded Joint Gas Pipe Fittings Double Thread NPT 2

Part No.

P

NPT

P1

ISO7/1

Dimensions (mm)
L B C E F
inch mm
HM-02N02G 1/8 1/8 27.7 7.1 13.8 4.1 9/16 14.28
N-04N04G 1/4 1/4 36.8 11.2 18.0 5.8 3/4 19.05
HN-06N06G 3/8 3/8 37.6 11.2 21.8 7.9 7/8 22.22
HN-08N08G 1/2 1/2 44.4 14.2 26.0 11.9 1-1/16 26.98
HN-12N12G 3/4 3/4 49.0 15.7 32.0 15.7 1-5/16 33.33
HN-16N16G 1 1 56.6 18.3 39.0 19.0 1-5/8 41.2
