Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: BV
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 1WEEK
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000PC
Material: |
Stainless Steel |
Port Size: |
Standard |
Pressure: |
Medium Pressure,Low Pressure,3000PSI |
Temperature Of Media: |
Medium Temperature,Normal Temperature,Low Temperature |
Standard Or Nonstandard: |
Standard |
Media: |
Water,Gas,Oil |
Application: |
General |
Size: |
1/4" To 3/4" |
Connection: |
Threaded |
Valve Type: |
3way |
Material: |
Stainless Steel |
Port Size: |
Standard |
Pressure: |
Medium Pressure,Low Pressure,3000PSI |
Temperature Of Media: |
Medium Temperature,Normal Temperature,Low Temperature |
Standard Or Nonstandard: |
Standard |
Media: |
Water,Gas,Oil |
Application: |
General |
Size: |
1/4" To 3/4" |
Connection: |
Threaded |
Valve Type: |
3way |

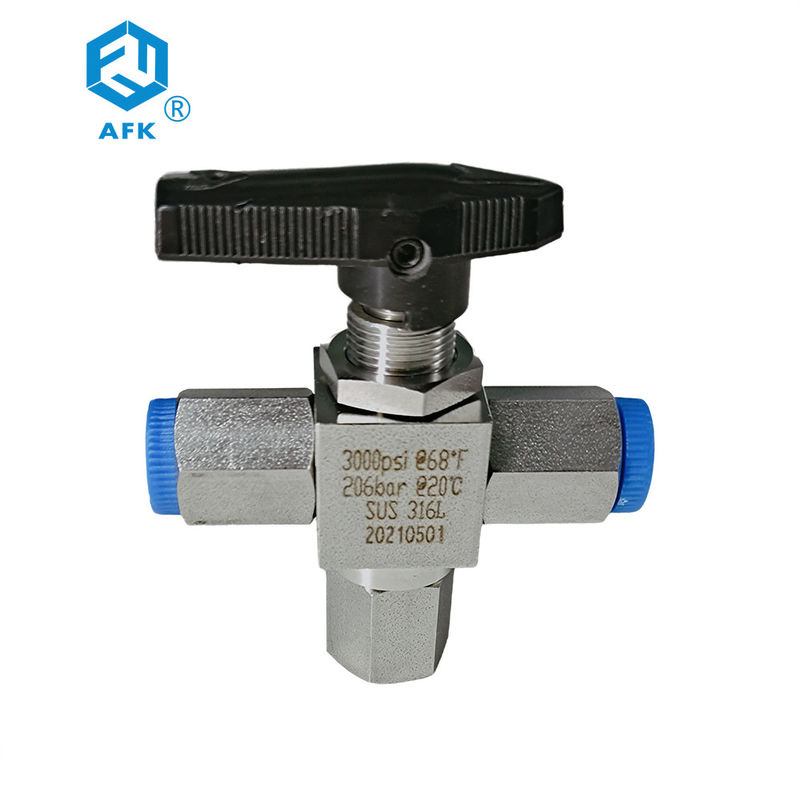

Product Description
Female Thread (fractional)
| conn./size | orifice | Dimensions(mm) | ||||||||
| inlet/outlet | mm | In. | A | B | C | D | E | F |
Panel hole size |
Max panel thickness |
| 1/8" | 5.0 | 0.19 | 45.4 | 22.7 | 35.0 | 30.2 | 55 | 34 | 14.0 | 6.0 |
| 1/4" | 5.0 | 0.19 | 52.4 | 26.2 | 35.0 | 33.7 | 55 | 34 | 14.0 | 6.0 |
| 3/8" | 10.0 | 0.39 | 62.0 | 31.0 | 42.3 | 42.5 | 75 | 45 | 15.8 | 6.0 |
| 1/2" | 10.0 | 0.39 | 64.0 | 32.0 | 42.3 | 43.5 | 75 | 45 | 15.8 | 6.0 |
