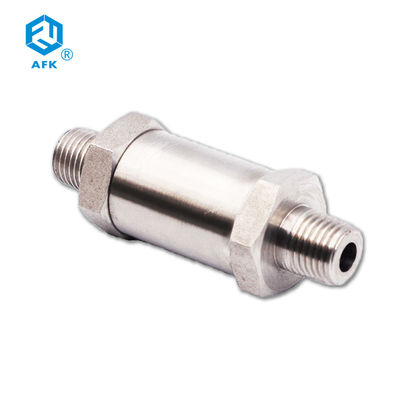

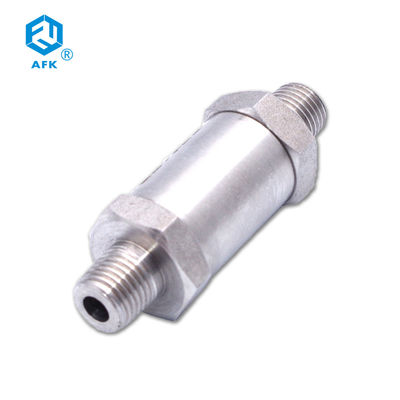

BSPT AFK SS304 3000PSI One Way Check Valve Male NPT No Return

Product Details

Place of Origin: China

Brand Name: AFK

Certification: CE

Model Number: CV

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Expotrt Packing

Delivery Time: 1WEEK

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 5000PC

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    3000PSI One Way Check Valve, BSPT One Way Check Valve, Male NPT  Electric Solenoid Valve


Application:	General	Material:	Stainless Steel
Temperature Of Media:	Normal Temperature	Media:	Gas
Standard Or Nonstandard:	Standard	Pressure:	3000PSI

Application:	General
Material:	Stainless Steel
Temperature Of Media:	Normal Temperature
Media:	Gas
Standard Or Nonstandard:	Standard
Pressure:	3000PSI

Description

BSPT AFK SS304 3000PSI One Way Check Valve Male NPT No Return

Product Description

Characteristics

End connections avail be with AFK tube end , BSPT or NPT female & male thread for option
Variable fixed cracking press re spring , range from 1 to 24psig ±5%
O-ring ensures leak proof shut off
Back stopped poppet minimizes spring stress

Features

Inline check valve stops reversed flow in order to protect instrumentation
Body material in Stainless Steel SS316/316L Cold drawn bar
Max. allowed working pressure 3000psi (206 bar)
100% factory tested

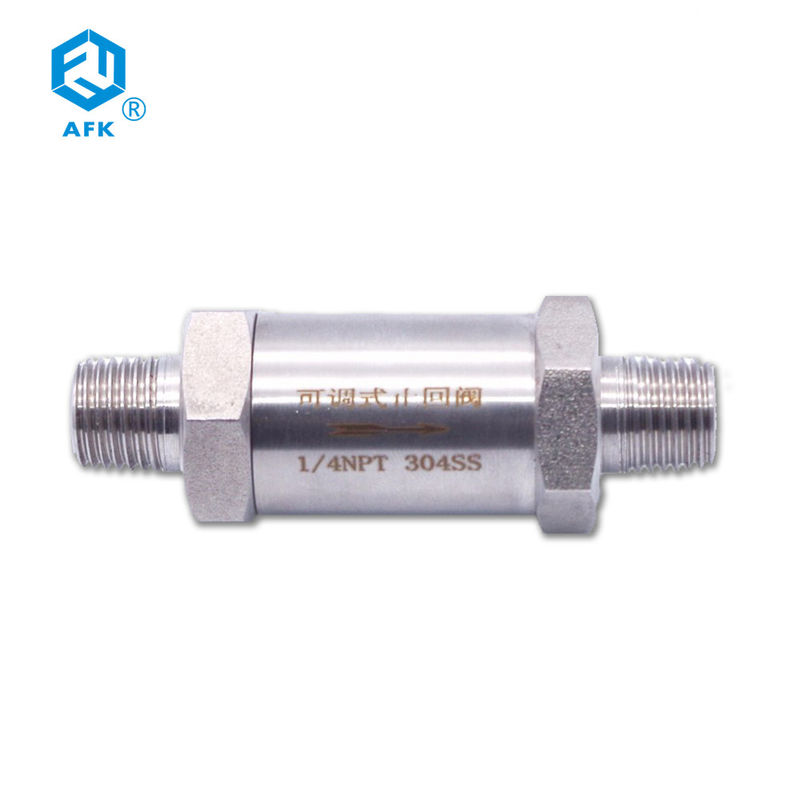

BSPT AFK SS304 3000PSI One Way Check Valve Male NPT No Return 0

Specification
Number	Part	SS316 VALVE	Brass valve
1	Valve body(Inlet)	SS316	Brass
2	Packing	SS316	Brass
3	O-Ring	fluororubber/BUNA	fluororubber/BUNA
4	Ball	SS316	Brass
5	Spring	SS316	Brass
6	Valve Body(Outlet)	SS316	Brass

Dimensions(inch)
Name	Size	A-PT/NPT/G	B-PT/NPT/G	C-(mm)	D(mm)
CV-01	1/8"	1/8"	1/8"	19	74
CV-02	1/4"	1/4"	1/4"	19	74
CV-03	3/8"	3/8"	3/8"	22	74
CV-04	1/2"	1/2"	1/2"	27	75.5
CV-06	3/4"	3/4"	3/4"	35	83.5
CV-8	1"	1"	1"	41	87.5
Can be customized according to customer's' requirements

Product Specification
Name:	Check valve
Model:	CV-02 OD
Size:	1/4"
Connection:	Ferrule OD
Pressure:	1000 Psi
Material:	Stainless steel 316
