Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: BV
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 1WEEK
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000PC
Material: |
Stainless Steel,SS304 |
Port Size: |
1/8" 1/4" 3/8" 1/2" |
Pressure: |
High Pressure,3000PSI |
Temperature Of Media: |
Medium Temperature,Normal Temperature,Low Temperature |
Power: |
Manual |
Standard Or Nonstandard: |
Standard |
Media: |
Gas,Air |
Application: |
General |
Size: |
3/4",1/4" NPT |
Connection: |
Threaded |
Valve Type: |
2 Way |
Material: |
Stainless Steel,SS304 |
Port Size: |
1/8" 1/4" 3/8" 1/2" |
Pressure: |
High Pressure,3000PSI |
Temperature Of Media: |
Medium Temperature,Normal Temperature,Low Temperature |
Power: |
Manual |
Standard Or Nonstandard: |
Standard |
Media: |
Gas,Air |
Application: |
General |
Size: |
3/4",1/4" NPT |
Connection: |
Threaded |
Valve Type: |
2 Way |

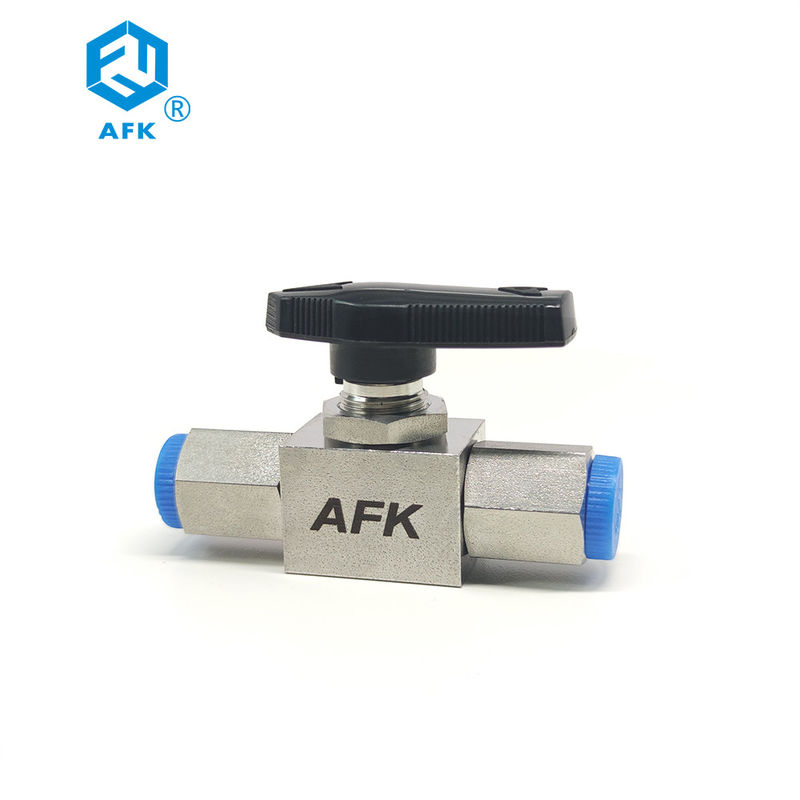

Characteristics
|
Black handles with arrow indicate flow direction as standard ; metal handles for option Packing bolt allows easy packing adjustment Panel mountable Bi-directional flow . Micro-finished floating ball ensures leak proof shut off End connections available with AFK tube end , BSPT or NPT female & male thread. |
Features
|
On/off service ball valve with 2 way pattern Diverter service ball valve with 3 way pattern Body material in stainless steel ss316/316L Max. allowed working pressure : 50kg , 3000psi , 6000psi With Viton O-ring 100% factory tested |
Materal of construction
| ltem | Part Description | Qty. | Material |
| 1 | Handle | 1 | Nylon |
| 2 | Handle Set Screw | 1 | Chrome-Plated Steel |
| 3 | Stem | 1 | SS316/316L |
| 4 | Packing Bolt | 1 | SS316/316L |
| 5 | Gland Packing | 2 | TFM1 600 |
| 6 | Stem O-ring | 1 | Viton |
| 7 | Panel Nut | 1 | SS304 |
| 8 | Body | 1 | SS316/316L |
| 9 | Ball | 1 | SS316/316L |
| 10 | Seat | 2 | TFM1600 |
| 11 | Body O-ring | 2 | Viton |
| 12 | End Cap | 2 | SS316/316L |
Ordering Information
| C- | 3 | BV- | S6- | 02 | A- | 3P | |
|
CLASSIFICATI ON |
PRODUCT TYPE |
VALVE TYPE | MATERIAL |
SIZE (FRACTIONAL) |
SIZE (METRIC) |
CONNECTION TYPE | MAX.WORKING PRESSURE |
| C:VALVE | 3:3PC | BV:2-WAY BALL VALVE | S6 :SS316 | 02:1/8" | 6:6mm | A:AFK TUBE END | 3P:3000PSIG |
| BVT:3-WAY BALL VALVE | S6L:SS316L | 04:1/4” | 8:8mm | MR:MALE BSPT THREAD | |||
| 06:3/8* | 10:10mm | FR:FEMALEBSPTTHREAD | |||||
| 08:1/2" | 12:1 2mm | MN:MALE NPT THREAD | |||||
| 012:3/4" | 14:14mm | FN:FEMALE NPT THREAD | |||||
| 16:1 6mm | |||||||
| 18:1 8mm |
