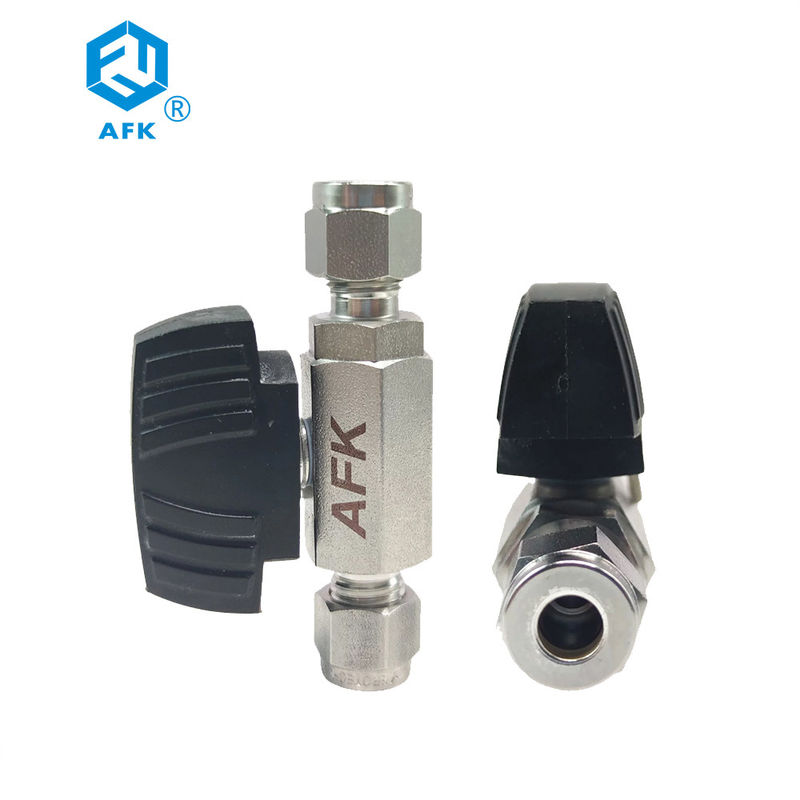

BSPT 1000psig High Pressure Ball Valve 1/4" NPT Stainless Steel
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Material | Stainless Steel,SS304 | Structure | Ball |
---|---|---|---|
Port Size | Standard,1/8" 1/4" 3/8" 1/2" | Pressure | Medium Pressure,Low Pressure,High Pressure,3000PSI |
Temperature Of Media | Medium Temperature,Normal Temperature,High Temperature | Standard Or Nonstandard | Standard |
Media | Water,Gas,Oil,Air,Acid | Size | 1/4" NPT |
Body Material | 304,Stainless Steel | Valve Type | 2 Way |
High Light | BSPT High Pressure Ball Valve,1000psig High Pressure Ball Valve,1/4" NPT Ss Ball Valve |
Product Description
Product Description
Features
- Two pieces cold drawn bar bady
- Body material in Stainless Steel SS316/316L
- Max.allowed working pressure 1000psig(69 bar)
- With Viton O-ring and PTFE packing
- 100% factory tested
Black handle with arrow indicates flow direction , End connections available with AFK tube end , BSPT or NPT male thread. |
Selection Table
C- | 2 | BV- | S6- | 02 | A- | 1P | |
Classific Ation | Product Type | Valve Type | Material | Size(Fractional) | Size(Metric) | Connection Type | Max.Working Pressurs |
C:valve | 2:2PC | BV:2-way ball valve | S6:SS316 | 04:1/4" | 6:6mm | A:AFK Tube End | 1P:1000P SIG |
S6L:SS316L | 06:3/8" | 8:8mm | MR:Male BSPT Thread | ||||
08:1/2" | 10:10mm | MN:Male NPT Thread | |||||
012:3/4" | 12:12mm | ||||||
18:18mm |
Type | Conn./Size | Orifice | Dimensions(mm) | |||||
Inlet/Outlet | mm | In. | A | B | C | D | ||
AFK TUBE END | Fractional | 1/4' | 5.0 | 0.19 | 72.9 | 41.0 | 31.4 | 8.5 |
3/8" | 7.5 | 0.27 | 78.2 | 41.0 | 33.1 | 9.5 | ||
1/2" | 9.0 | 0.35 | 90.5 | 50.0 | 41.3 | 13.5 | ||
3/4" | 12.5 | 0.49 | 108.9 | 58.5 | 48.5 | 16.0 | ||
Metric | 6mm | 5.0 | 0.19 | 72.6 | 41.0 | 31.4 | 8.5 | |
8mm | 5.0 | 0.19 | 74.5 | 41.0 | 31.4 | 8.5 | ||
10mm | 7.0 | 0.27 | 78.5 | 41.0 | 33.1 | 9.5 | ||
12mm | 9.0 | 0.35 | 90.1 | 50.0 | 41.3 | 13.5 | ||
18mm | 12.5 | 0.49 | 108.9 | 58.5 | 48.5 | 16.0 | ||
Male BSPT Thread | Fractional | 1/4" | 5.0 | 0.19 | 72.9 | 41.0 | 31.4 | 8.5 |
Male NPT Thread | Fractional | 1/4" | 5.0 | 0.19 | 72.9 | 41.0 | 31.4 | 8.5 |
