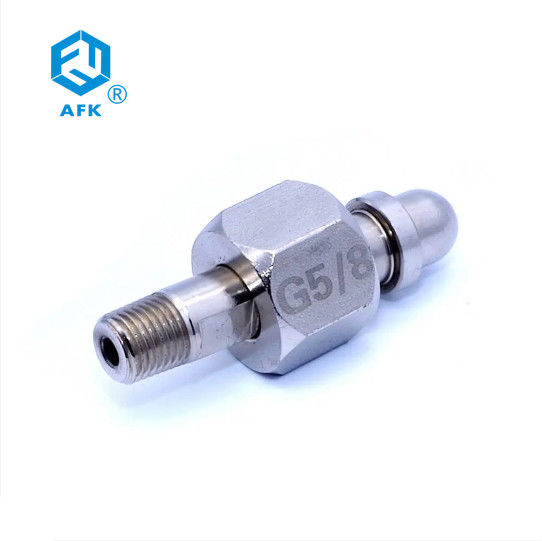

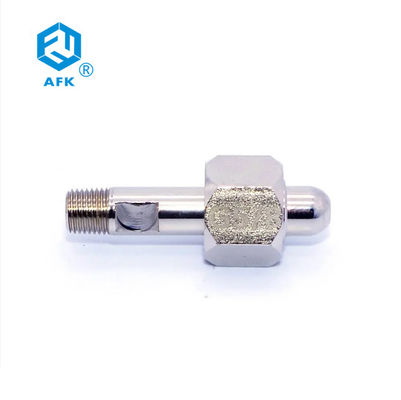

Hexagon DIN477 BS341 CGA Gas Cylinder Adapter 316 Male Thread

Product Details

Place of Origin: China

Brand Name: AFK

Certification: CE

Model Number: DIN477

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Expotrt PackingProduct Name: cylinder connector Connection 1: BS341, DIN477, CGA, GB standard Connection 2: 1/4″NPT M or 1/4″BSPP male Body material: ss316, nickel plated brass

Delivery Time: 1WEEK

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 5000PC

Get Best Price
Contact Now
Specifications
Highlight:

CGA Gas Cylinder Adapter

,

Hexagon Gas Cylinder Adapter

,

DIN477 Stainless Steel Cylinder Adapter

Material:
Stainless Steel,Stainless Steel 304 Or 316,Stainless Steel304 316L
Connection:
Male
Standard:
DIN
Medium:
Gas
Name:
Stainless Steel Gas Cylinder Adapter
Warranty:
1 Year
Shape:
Equal
Head Code:
Hexagon
Technics:
Forged
Material:
Stainless Steel,Stainless Steel 304 Or 316,Stainless Steel304 316L
Connection:
Male
Standard:
DIN
Medium:
Gas
Name:
Stainless Steel Gas Cylinder Adapter
Warranty:
1 Year
Shape:
Equal
Head Code:
Hexagon
Technics:
Forged
Description
Hexagon DIN477 BS341 CGA Gas Cylinder Adapter 316 Male Thread

Product Name: cylinder connector

Connection 1: BS341, DIN477, CGA, GB standard

Connection 2: 1/4″NPT M or 1/4″BSPP male

Body material: ss316, nickel plated brass







Configuration Item Number Cylinder Connection Thread Length Pressure Rating
009 BS341 No.3(Base Entry) 1/4” NPT Male 95mm-101mm/3.75”-4.00” 250 bar / 3625 PSI
010 BS341 No.3 1/4” NPT Male 95mm-101mm / 3.75” -4.00” 250 bar / 3625 PSI
011 BS341 No.4 (Base Entry) 1/4″ NPT Male 67mm/2.625” 250 bar/3625 PSI
012 BS341 No.4 1/4” NPT Male 95mm-101mm/3 75”-4.00” 250 bar/3625 PSI
013 BS341 No.6 1/4” NPT Male 95mm-101mm/3 75”-4.00” 250 bar / 3625 PSI
014 BS341 No.7 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 250 bar/ 3625 PSI
015 BS341 No.8 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 250 bar/ 3625 PSI
016 BS341 No.10 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 250 bar/3625 PSI
017 BS341 No 11 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 250 bar 7 3625 PSI
018 BS341 No. 13 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 50 bar/725 PSI
019 BS341 No 14 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 250 bar/3625 PSI
020 BS341 No.15 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 250 bar 7 3625 PSI
021 BS341 No30 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 300 bar/4350 PSI
022 BS341 No 31 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 300 bar/4350 PSI
023 BS341 No32 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 300 bar 74350 PSI
024 BS341 No 38 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 300 bar/4350 PSI
025 DIN 477 No.1 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 300 bar/4350 PSI
026 DIN 477 No.2 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 300 bar/4350 PSI
027 DIN 477 No.3 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 25 bar/ 360 PSI
028 DIN 477 No 31 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 25 bar/360 PSI
029 DIN 477 No.5 1/4″ NPT Male 95mm-101mm/3 75”-4.00” Refer to DIN 477 Standard
030 DIN 477 No.6 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 300 bar/4350 PSI
031 DIN 477 No.7 1/4″ NPT Male 95mm-101mm/3 75”-4.00” Refer to DIN 477 Standard
032 DIN 477 No.8 1/4″ NPT Male 95mm-101mm/3 75”-4.00” Refer to DIN 477 Standard
033 DIN 477 No. 9 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 300 bar/4350 PSI
034 DIN 477 No.10 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 300 bar/4350 PSI
035 DIN 477 No.11 1/4″ NPT Male 95mm-101mm/3 75”-4.00” Refer to DIN 477 Standard
036 DIN 477NO.12 1/4″ NPT Male 95mm-101mm/3 75”-4.00” Refer to DIN 477 Standard
037 DIN 477 NO.13 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 300 bar/4350 PSI
038 DIN 477 NO 14 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 300 bar/4350 PSI
039 CGA170 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 207 bar/3000 PSI
040 CGA180 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 207 bar/3000 PSI
041 CGA280 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 207 bar/3000 PSI
042 CGA290 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 34 5 bar/500 PSI
043 CGA296 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 207 bar/3000 PSI
044 CGA300 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 34 5 bar/500 PSI
045 CGA320 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 207 bar/3000 PSI
046 CGA326 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 207 bar/3000 PSI
047 CGA330 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 207 bar/3000 PSI
048 CGA346 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 207 bar/3000 PSI
049 CGA350 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 207 bar/3000 PSI
050 CGA510 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 34.5 bar/500 PSI
0S1 CGA520 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 345 bar/500 PSI
052 CGA540 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 207 bar/3000 PSI
053 CGA580 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 207 bar/3000 PSI
0M CGA590 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 207 bar/3000 PSI
055 CGA660 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 207 bar/ 3000 PSI
056 CGA705 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 207 bar/ 3000 PSI
