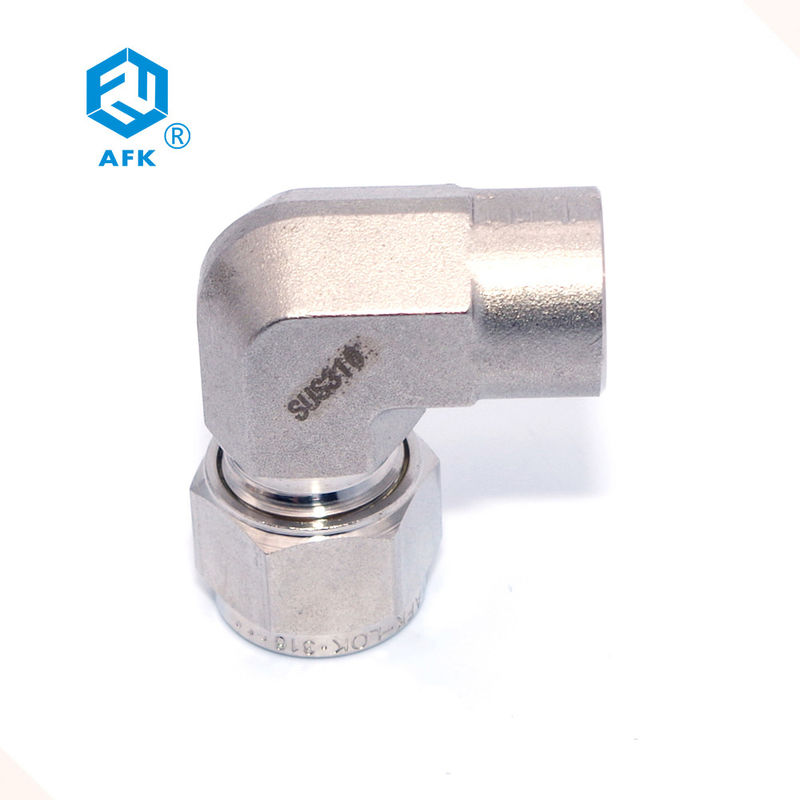

AFK GB Hexagon Female Elbow Pipe Fitting Connector 8mm SS316 Forged

AFK GB Hexagon Female Elbow Pipe Fitting Connector 8mm SS316 Forged
AFK GB Hexagon Female Elbow Pipe Fitting Connector 8mm SS316 Forged
AFK GB Hexagon Female Elbow Pipe Fitting Connector 8mm SS316 Forged AFK GB Hexagon Female Elbow Pipe Fitting Connector 8mm SS316 Forged AFK GB Hexagon Female Elbow Pipe Fitting Connector 8mm SS316 Forged AFK GB Hexagon Female Elbow Pipe Fitting Connector 8mm SS316 Forged AFK GB Hexagon Female Elbow Pipe Fitting Connector 8mm SS316 Forged

Large Image :  AFK GB Hexagon Female Elbow Pipe Fitting Connector 8mm SS316 Forged

Product Details:
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: FE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 1WEEK
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000PC

AFK GB Hexagon Female Elbow Pipe Fitting Connector 8mm SS316 Forged

Description
Material: Stainless Steel,316L,Stainless Steel304 316L Shape: Reducing
Head Code: Hexagon Connection: Ferrule OD X Female NPT
Technics: Forged Standard: GB
Medium: Gas Application: Water Gas
Size: 12mm , 10mm , 8mm , 6mm , 4mm
High Light:

GB Hexagon Female Elbow Pipe Fitting

,

AFK Female Elbow Pipe Fitting

,

SS316 Forged Elbow Pipe Connector







Product Name
Female Elbow
Material
stainless steel 316
Pressure
3000PSI
Connection
Ferrule OD x Female NPT
Brade
AFK
Materials
316
Used
Chemical and Petrochemical



(METRIC)

T               PT-NPT CATALOG

TUBE          MALE     NUMBER

O.D.            PIPE

                    SIZE                           A                 C            D              E              F               G               H

6 1/8 FE-6-1 27.0 19.1 15.3 5 14 14 19.6
6 1/4 FE-6-2 29.8 22.4 15.3 5 17 14 22.4
6 3/8 FE-6-3 34.6 22.4 15.3 5 22 14 27.2
6 1/2 FE-6-4 37.7 26.4 15.3 5 27 14 30.3
8 1/8 FE-8-1 29.3 20.4 16.2 6 14 17 21.8
8 1/4 FE-8-2 30.6 22.4 16.2 6 17 17 23.1
8 3/8 FE-8-3 34.0 27.7 16.2 6 22 17 26.5
8 1/2 FE-8-4 36.8 31.7 16.2 6 27 17 29.3
10 1/8 FE-10-1 31.5 19.0 17.2 8 17 19 23.9
10 1/4 FE-10-2 33.5 22.4 17.2 8 17 19 25.9
10 3/8 FE-10-3 37.5 27.7 17.2 8 17 19 29.9
10 1/2 FE-10-4 40.3 31.7 17.2 8 22 19 32.7
12 1/8 FE-12-1 36.0 22.4 22.8 10 22 22 25.9
12 1/4 FE-12-2 36.0 22.4 22.8 10 22 22 25.9
12 3/8 FE-12-3 36.0 22.4 22.8 10 22 22 29.9
12 1/2 FE-12-4 38.8 28.4 22.8 10 27 22 28.7
12 3/4 FE-12-6 41.8 32.4 22.8 10 32 22 31.7
14 3/8 FE-14-3 39.8 25.4 24.4 10 27 27 29.7
14 1/2 FE-14-4 39.8 28.4 24.4 10 27 27 29.7
14 3/4 FE-14-6 42.8 32.4 24.4 10 32 27 32.7
15 3/8 FE-15-3 39.8 25.4 24.4 11 27 27 29.7
15 1/2 FE-15-4 39.8 28.4 24.4 11 27 27 29.7
15 3/4 FE-15-6 42.8 32.4 24.4 11 32 27 32.7
16 3/8 FE-16-3 39.8 25.4 24.4 12 27 27 29.7
16 1/2 FE-16-4 39.5 28.4 24.4 12 27 27 29.7
16 3/4 FE-16-6 42.8 32.4 24.4 12 32 27 32.7
18 3/8 FE-18-3 40.5 25.4 24.4 14 27 30 30.4
18 1/2 FE-18-4 40.5 28.4 24.4 14 27 30 30.4
18 3/4 FE-18-6 43.5 32.4 24.4 14 32 30 33.4
20 1/2 FE-20-4 43.5 31.4 26.0 16 32 32 33.4
20 3/4 FE-20-6 46.5 35.4 26.0 16 32 32 36.4
22 1/2 FE-22-4 43.5 31.4 26.0 18 32 32 33.4
22 3/4 FE-22-6 46.5 35.4 26.0 18 32 32 36.4
25 1/2 FE-25-4 47.5 33.4 31.5 21 34 38 35.2
25 3/4 FE-25-6 50.5 37.4 31.5 21 34 38 38.2



(FRACTIONAL)

1/4 1/8 FE-02-1 27.0 19.1 15.3 5 14 14 19.6
1/4 1/4 FE-02-2 29.7 22.4 15.3 5 17 14 22.4
1/4 3/8 FE-02-3 34.6 22.4 15.3 5 22 14 27.2
1/4 1/2 FE-02-4 37.7 28.4 15.3 5 27 14 30.3
3/8 1/8 FE-03-1 30.5 19.8 16.8 7 17 17 23.1
3/8 1/4 FE-03-2 31.2 22.4 16.8 7 17 17 24.0
3/8 3/8 FE-03-3 33.3 22.4 16.8 7 V 17 26.0
3/8 1/2 FE-03-4 36.1 28.4 16.8 7 27 17 28.7
1/2 1/8 FE-04-1 36.0 22.4 22.8 10 22 22 25.9
1/2 1/4 FE-04-2 36.1 22.4 22.8 10 22 22 26.0
1/2 3/8 FE-04-3 36.1 22.4 22.8 10 22 22 26.0
1/2 1/2 FE-04-4 39.0 28.4 22.8 10 27 22 28.7
1/2 3/4 FE-04-6 41.8 32.4 22.8 10 32 22 31.7
5/8 3/4 FE-05-6 42.8 32.4 24.4 12 32 27 32.7
3/4 1/2 FE-06-4 39.9 28.4 24.4 15 27 30 29.7
3/4 3/4 FE-06-6 44.7 32.4 24.4 15 32 30 34.5
1 3/4 FE-08-6 49.0 32.4 31.3 21 34 38 36.8
