1/4in Female Air Compressor Check Valve High Pressure 6000psi Stainlees Steel
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Application | General | Material | Stainless Steel |
---|---|---|---|
Pressure | High Pressure | Temperature Of Media | Medium Temperature |
Media | Water,Gas,Oil | Standard Or Nonstandard | Standard |
Type | 2-way | Warranty | 1 Year |
Size | 1/4" | ||
High Light | 1/4in Female Air Compressor Check Valve,Stainlees Steel Air Compressor Check Valve,6000psi High Pressure Check Valve |
Product Description

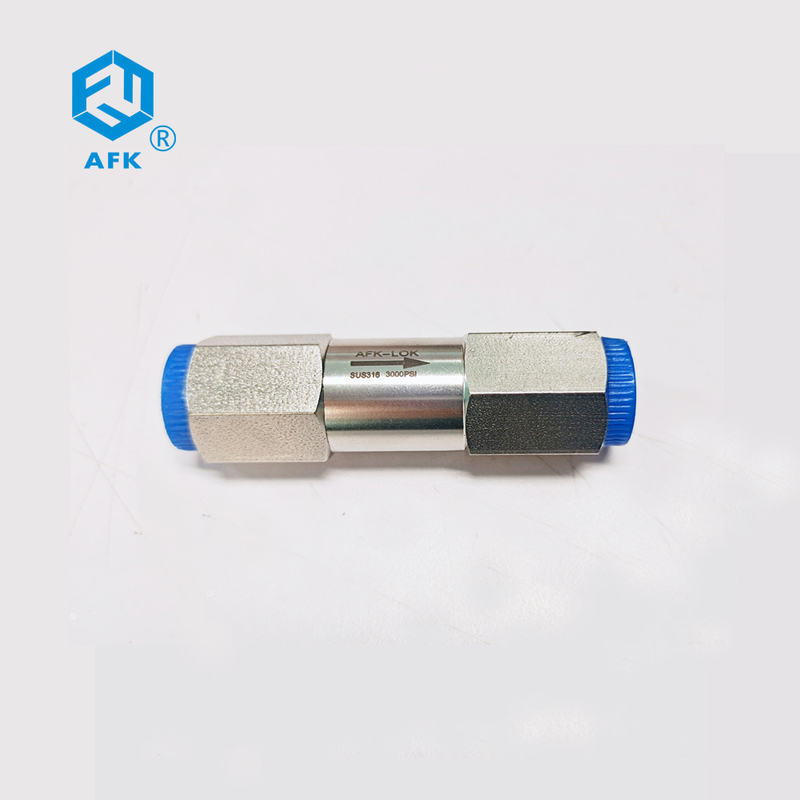

AFK High Pressure Stainlees Steel 6000psi 1/4in Female Check Valve
Features Of 6000psi 1/4in Female Check Valve
1 | Inline check valve stops reversed flow in orde to protect instrumentation |
2 | Body material in stainless steel SS316/316L cold drawn bar |
3 | Max.allowed working pressure 3000psi (206bar) |
4 | With viton O-ring |
5 | 100% factory tested |
Item | Part Description | Qty | Material |
1 | inlet body | 1 | SS316/316L |
2 | outlet body | 1 | SS316/316L |
3 | seal ring | 1 | Fluororubber |
4 | poppet | 1 | SS316/316L |
5 | spring | 1 | SS304 |
Ordering Information | ||||||
C- | CV- | S6- | 04 | A- | 1# | |
classification | proudct name | material | size (fractional) | size(metric) | connection type | cracking pressure |
valve | check valve | S6:SS316 | 02:1/8" | size(metric) | connection type | 1#:1PSIG |
S6L:SS316L | 04:1/4" | 6:6mm | A:AFK tube end | 10#:10PSIG | ||
06:3/8" | 8:8mm | MR:male BSPT thread | 25#:25PSIG | |||
08:1/2" | 10:10mm | FR:female BSPT thread | ||||
12:3/4" | 12:12mm | MN:male NPT thread | ||||
1" | FN:female NPT thread |
