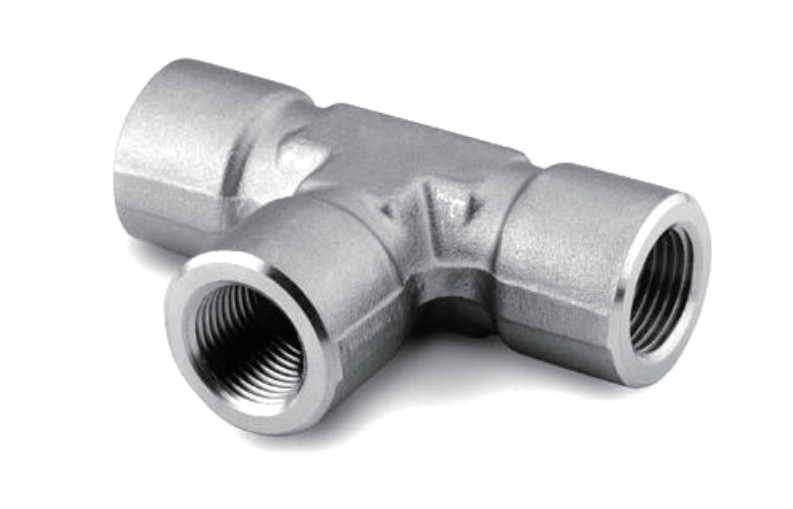

AFK Equal Shape Female Run Tee Hexagon Head 316 Stainless Steel Pipe Fittings

AFK Equal Shape Female Run Tee Hexagon Head 316 Stainless Steel Pipe Fittings
AFK Equal Shape Female Run Tee Hexagon Head 316 Stainless Steel Pipe Fittings

Large Image :  AFK Equal Shape Female Run Tee Hexagon Head 316 Stainless Steel Pipe Fittings

Product Details:
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: FT
Payment & Shipping Terms:
Minimum Order Quantity: 1~10
Price: Negotiable price
Packaging Details: Expotrt Packing
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000PC

AFK Equal Shape Female Run Tee Hexagon Head 316 Stainless Steel Pipe Fittings

Description
Material: Stainless Steel Shape: Equal
Head Code: Hexagon Connection: Female
Technics: Forged Size: 1/8"~1/2"
Color: Silver Thread: NPT
Medium: Gas Warranty: 1 Year
High Light:

Hexagon Head Female Run Tee

,

SS316 Female Run Tee

,

Female Tee stainless steel pipe fittings

AFK pipe fittings cross tee female 316 ss

Characteristic
1. All joints have high-quality appearance.
2. Each connector is marked with the manufacturer's name to facilitate tracing its source.
3. The external threads are protected with caps.

AFK Equal Shape Female Run Tee Hexagon Head 316 Stainless Steel Pipe Fittings 0

Female NPT to Female NPT

Part No

P

NPT

Dimensions(mm)
L F
inch mm
FT-02N 1/8 26.4 1/2 12.7
FT-04N 1/4 29.7 11/16 17.46
FT-06N 3/8 36.1 13/16 20.63
FT-08N 1/2 39.6 1 25.4



Material Standard

Material Bar Forging
316 Stainless Steel ASME SA479,ASTM A76 ASME SA 18,ASTM A18
Brass

ASME B16

ASTM B453

ASTM B83
Carbon Steel ASTM A108 --



Electroplating and Coating
In order to resist corrosion, all carbon steel joints are treated with electroplated zinc coating.



Clean
The components shall be cleaned to remove oil, grease and loose particles



Pressure Rating Basis
The rating is based on pressure pipe B31 at room temperature 3. Based on ASME Code of and process pipeline.

Material Allowable Stress Value
316 stainless steel 20000 psi(1378 bar)
Brass 10000 psi(689 bar)
Carbon Steel 20000 psi(1378 bar)



Temperature Rating
The system temperature may be limited by thread sealant or, where appropriate, gasket or O-ring material.



Joint Material

Material Maximum temperature ℃ (° F)
316 stainless steel 537(1000)
Brass 04(400)
Carbon Steel 190(375)



Gasket, O-ring Material

Element Material Science Maximum temperature ℃ (° F) Minimum temperature ℃ (℉)
RS Washer Nitrile rubber 110(30) -5(-13)
Fluorocarbon FKM 204(400) -15(5)
RG,RP Washer Copper 204(400) -198(-35)
SAE,O-ring Fluorocarbon FKM 204(400) -8(-0)
