AFK 316 Stainless Steel Quick Coupling Female Connection NPT Thread

AFK 316 Stainless Steel Quick Coupling Female Connection NPT Thread
AFK 316 Stainless Steel Quick Coupling Female Connection NPT Thread AFK 316 Stainless Steel Quick Coupling Female Connection NPT Thread

Large Image :  AFK 316 Stainless Steel Quick Coupling Female Connection NPT Thread

Product Details:
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: SF+PF
Payment & Shipping Terms:
Minimum Order Quantity: 1~10
Price: Negotiable price
Packaging Details: Expotrt Packing
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000PC

AFK 316 Stainless Steel Quick Coupling Female Connection NPT Thread

Description
Material: Stainless Steel 304 Or 316 Head Code: Other
Connection: Female Technics: Forged
Size: 1/8"~1" Color: Silver
Thread: NPT Medium: Gas
Name: Stainless Steel Quick Coupling
High Light:

316 stainless steel quick coupling

,

NPT Thread stainless steel quick coupling

,

Forged ss quick coupling

AFK Stainless Steel 316 Quick Coupling 1 / 8 " 1 / 4" 3 / 8 " 1 / 2"

Features

The shutoff valve build into the socket opens when the plug is inserted,and closes when the plug is removed.Therefore,it is not necessary to operate the main valve when inserting or removing the plug.

Both the socket and plug are available with male thread connection,female thread connection,or hose connection.Such connections can be combined as desired.

The NL-40 series are identical in size and interchangeable.The NL-20 series are also interchangeable. with one another.

The main body is made of steel,brass or stainless steel.

A variety of models are available.You can select the best model to suit your specific operating and applications.

AFK 316 Stainless Steel Quick Coupling Female Connection NPT Thread 0

Item Part Description
1 Adaper
2 Valve Spring
3

Socket Body

4 Valve
5 Packing
6 Sleeve
7 Sleeve Spring
8 Ball
9 Stop Ring
10 Plug

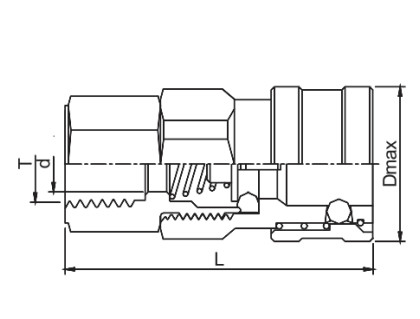

Model SF

Socket-Female Thread

Part No. Female Thread Size T(pt) Dimensions(mm)
L Damx. d
21SF 1/8" 44.5 φ25 φ5
22SF 1/4" 50.0 φ25 φ7
23SF 3/8" 51.0 φ25 φ9
24SF 1/2" 54.5 φ25 φ9
44SF 1/2" 60.0 φ35 φ15
46SF 3/4" 60.0 φ35 φ15
48SF 1" 68.0 φ35 φ15



Model PF

Plug-Female Thread

Part No. Female Thread Size T(pt) Dimensions(mm)
L Damx. d
21PF 1/8" 33.0 H14 φ7.5
22PF 1/4" 36.0 H17 φ7.5
23PF 3/8" 37.0 H19 φ7.5
24PF 1/2" 40.0 H24 φ7.5
44PF 1/2" 45.0 H24 φ12
46PF 3/4" 46.0 H30 φ12
48PF 1" 51.5 H38 φ12
