Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: SH+PH
Payment & Shipping Terms
Minimum Order Quantity: 1~10
Price: Negotiable price
Packaging Details: Expotrt Packing
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000PC
Material: |
Stainless Steel 304 Or 316 |
Connection: |
Socket |
Technics: |
Forged |
Size: |
1/8"~2" |
Color: |
Silver |
Thread: |
NPT |
Medium: |
Gas |
Name: |
Stainless Steel Tube Fittings |
Material: |
Stainless Steel 304 Or 316 |
Connection: |
Socket |
Technics: |
Forged |
Size: |
1/8"~2" |
Color: |
Silver |
Thread: |
NPT |
Medium: |
Gas |
Name: |
Stainless Steel Tube Fittings |
AFK Stainless Steel Socket Hose Nipple Quick Connector
Material Characteristics
| Size | NL-20 | NL-40 | ||||||
| 1/8" | 1/4" | 3/8" | 1/2" | 1/2" | 3/4" | 1" | ||
| Material of socket/Plug Body | Steel(Chrome plated)CS/Brass C3604/Stainless Steel 304 | |||||||
| Connection method | Socket | female thread(F)Male thread(M)/Hose nipple(H) | ||||||
| pulg | ||||||||
| Working pressure(max.working pressure)kgf/cm² | steel | 15(20) | ||||||
| stainless steel | 15(20) | |||||||
| O-ring and valve packing material | NBR/Fluororubber | |||||||
| Applicable fluid | steel | Air/Oil | ||||||
| barss | Air/Water/Oil | |||||||
| stainless steel | Air/Water/Oil | |||||||
| Use | pneumatic tool,pneumatic piping,pneumatic machinery,water piping,etc. | |||||||

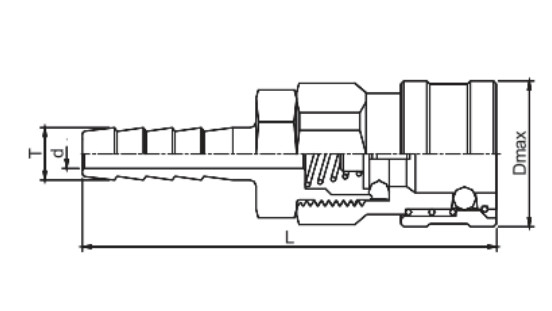

Model SH
Socket-Hose Nipple
| Part No | Hose Size | Dimensions(mm) | ||
| L | Damx | d | ||
| 21SH | 1/8" | 70.5 | φ25 | φ4 |
| 22SH | 1/4" | 71.5 | φ25 | φ5 |
| 23SH | 3/8" | 75.5 | φ25 | φ7.5 |
| 24SH | 1/2" | 75.5 | φ25 | φ9 |
| 44SH | 1/2" | 82.0 | φ35 | φ9 |
| 46SH | 3/4‘’ | 88.0 | φ35 | φ15 |
| 48SH | 1" | 94.0 | φ35 | φ17 |
Model SH
Plug-Hose Nipple
| Part No | Hose Size | Dimensions(mm) | ||
| L | Damx | d | ||
| 21PH | 1/8" | 56.5 | φ16 | φ7.5 |
| 22PH | 1/4" | 57.5 | φ16 | φ7.5 |
| 23PH | 3/8" | 61.5 | φ16 | φ7.5 |
| 24PH | 1/2" | 61.5 | φ18 | φ7.5 |
| 44PH | 1/2" | 65.0 | φ24 | φ9 |
| 46PH | 3/4‘’ | 71.0 | φ24 | φ12 |
| 48PH | 1" | 79.5 | φ30 | φ12 |
FAQ
Q1. What products can you provide?
Re: Compression fittings(connections), hydraulic fittings, tube fittings, ball valves, needle valves etc.
Q2. Can you make the products based on our requests, such as size, connection, thread, shape and so on?
Re: Yes, We have experienced techincal team and can design and produce the products according to your requirements.
Q3. What about the quality and price?
Re: Quality is very good. Price is not low but pretty reasonable at this quality level.
Q4. Can you provide samples to test? For free?
Re: Of course, you can take several to test firstly. Your side shall bear the cost due to its high value.
Q5. Can you operate OEM orders?
Re: Yes, OEM is supported though we also have our own brand named AFK.
Q6. What payment methods for chose?
Re: For small order, 100% Paypal, Western Union and T/T in advance. For bulk purchase, 50%T/T, Western Union, L/C as deposit, and 50% balance paid before shipment.
Q7. How about the lead time?
Re: Usually, delivery time is 5-7 working days for sample, 7-10 working days for mass production.
Q8. How will you ship the goods?
Re: For small amount, international express is used mostly such as DHL, FedEx, UPS, TNT. For large amount, by air or by sea. Besides, you also can have your own forwarder pick up the goods and arrange the shipment.
