AFK 4mm 6mm 8mm 10mm Ferrule Reducer Stainless Steel Straight Tube Fitting

AFK 4mm 6mm 8mm 10mm Ferrule Reducer Stainless Steel Straight Tube Fitting
AFK 4mm 6mm 8mm 10mm Ferrule Reducer Stainless Steel Straight Tube Fitting

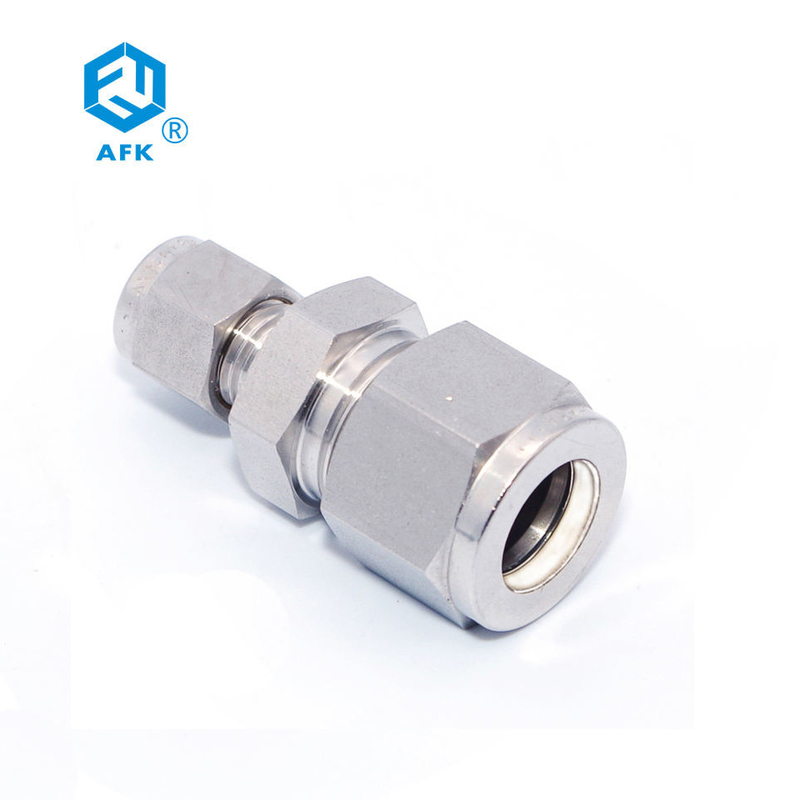

Large Image :  AFK 4mm 6mm 8mm 10mm Ferrule Reducer Stainless Steel Straight Tube Fitting

Product Details:
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: RU
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Special packaging
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs

AFK 4mm 6mm 8mm 10mm Ferrule Reducer Stainless Steel Straight Tube Fitting

Description
Connection: Female, Male, Dual Ferrule, Tube, Welded Shape: Equal
Head Code: Hexagon Applicable Fluid: Nitrogen, Hydrogen,oxygen,argon,ammonia
Working Pressure Range: 0-3000psig Size: 4mm, 6mm, 8mm, 10mm
Application: Industry Keyword: Stainless Steel 316 Ferrule Fittings
Technics: Forged
High Light:

10mm ferrule reducer

,

stainless steel ferrule reducer

,

straight tube fitting ferrule reducer

AFK ferrule tube adapter ferrule reducer stainless steel straight tube fitting 4mm 6mm 8mm 10mm

Shape Instruction
Straight union: like U, MC, TAF etc. 90° elbow: like ME, UE, EBW, FE etc. T(tee, 3 way): like MRT, MBT, UT, MT etc. Cross(4 way): like UCR etc.


Connection Instruction
Thread: NPT male thread, NPT female thread, PT male thread, PT female thread. Ferrule: like U and UCR, it can be directly connected to tube or plastic hose. Welded: like one end of ODSW. Tube: like one end of TAM.


Feature
All the compression fittings are used for gas or oil. Highest pressure: 3000psi (206bar, 20.6MPa) Very very low leak, can be negligible (zero leak). Long service life Warranty one year

AFK 4mm 6mm 8mm 10mm Ferrule Reducer Stainless Steel Straight Tube Fitting 0

model T Tube OD Tx Tube OD
RU-4-6 4 6
RU-6-8 6 8
RU-6-10 6 10
RU-6-12 6 12
RU-8-10 8 10
RU-8-12 8 12





FAQ
Q1. What products can you provide?
Re: Compression fittings(connections), hydraulic fittings, tube fittings, ball valves, needle valves etc.

Q2. Can you make the products based on our requests, such as size, connection, thread, shape and so on?
Re: Yes, We have experienced techincal team and can design and produce the products according to your requirements.

Q3. What about the quality and price?
Re: Quality is very good. Price is not low but pretty reasonable at this quality level.

Q4. Can you provide samples to test? For free?
Re: Of course, you can take several to test firstly. Your side shall bear the cost due to its high value.

Q5. Can you operate OEM orders?
Re: Yes, OEM is supported though we also have our own brand named AFK.

Q6. What payment methods for chose?
Re: For small order, 100% Paypal, Western Union and T/T in advance. For bulk purchase, 50%T/T, Western Union, L/C as deposit, and
50% balance paid before shipment.

Q7. How about the lead time?
Re: Usually, delivery time is 5-7 working days for sample, 7-10 working days for mass production.

Q8. How will you ship the goods?
Re: For small amount, international express is used mostly such as DHL, FedEx, UPS, TNT. For large amount, by air or by sea.
Besides, you also can have your own forwarder pick up the goods and arrange the shipment.



Buying Guide
My dear friend, if you wanna know more information about our products such as dimension size and drawing, kindly send us inquiry
or email, we will reply you within 24 hours!

Please provide the following parameters in your inquiry as many as possible:

1. Model No. . Or describe shape: straight union, 90° elbow, T(3 way), cross(4 way)
2. Connection: NPT male threaded, NPT female threaded, ferrule, welded, tube, hose barb.
3. Material: SS316, SS304
4. Fluid: what fluid is used for? Gas,oil?
5. Actual working pressure
6. Quantity


Please advise the model no. or describe what kind of fittings do you need, then we can send you the exact model and quotation.
For example,
A. UT, 1/2" tube ferrule, SS
