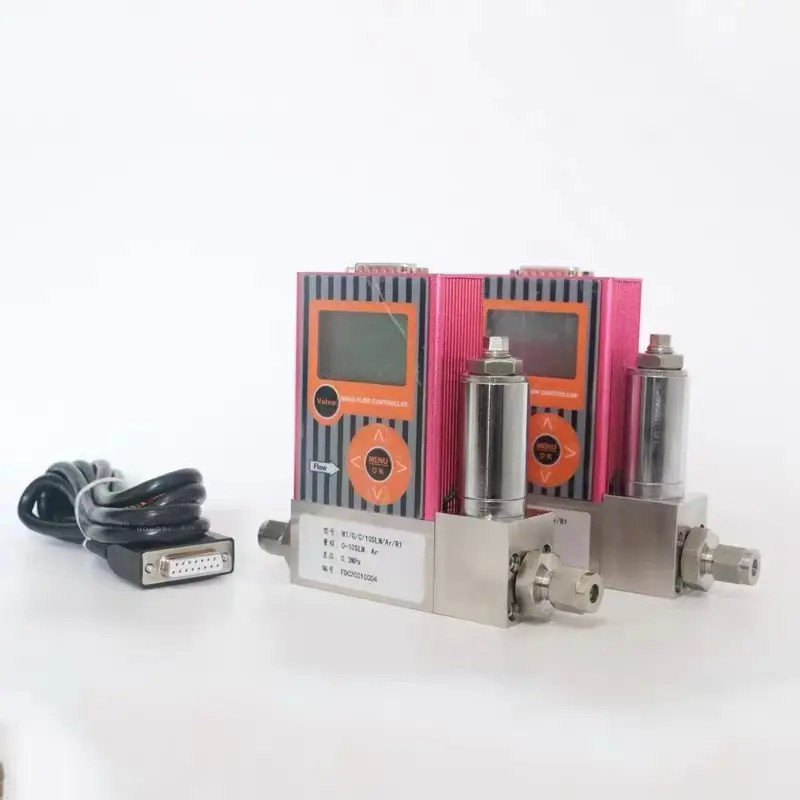

High Precision RS485 RS232 Gas Pressure Test Gauge Gas Mass Flow Meter

  • High Precision RS485 RS232 Gas Pressure Test Gauge Gas Mass Flow Meter
  • High Precision RS485 RS232 Gas Pressure Test Gauge Gas Mass Flow Meter
Place of Origin Chain
Brand Name AFK
Certification CE
Model Number MFC485
Minimum Order Quantity 1
Price Negotiable
Packaging Details General packaging
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Flow Range 0~500SCCM Accuracy ±1%F.S ±0.5%F.S
Linearity ±0.5~1.5%F.S Repeatability ±0.2%F.S
Output 0-5v/4-20mA Fitting 1/4" 3/8" 6mm 10mm
Communication RS485 Or RS232 Sealing PTFE/CR/NBR
Power Supply ±15V/24V
High Light

RS232 Gas Pressure Test Gauge

,

500SCCM Gas Pressure Test Gauge

,

RS485 Gas Mass Flow Meter
Leave a Message
Product Description

High Precision RS485 RS232 Gas Pressure Test Gauge Gas Mass Flow Meter



Product Introduction of Mass Flow Meters

High Precision RS485 RS232 Gas Pressure Test Gauge Gas Mass Flow Meter 0

Gas mass flowmeter main function is to measure a variety of single gas or mixed gas, no control function, divided into digital type with display (left), analog type without display (right), digital type mainly has RS485 communication can be connected to a computer or PLC can be field panel adjustment: analog type output 0-5V or 4-20MA can not be field adjustment, can be connected to PLC or flow control instrument.



FEATURES of High quality flow meters
1. Small size, does not occupy space

2. With display, fast reading flow rate

3. Good material, longer service life

4. Control mode and analog quantity can be selected

5. High accuracy

6. Fast response time

7. Low failure rate



Specification of Flowmeter

High Precision RS485 RS232 Gas Pressure Test Gauge Gas Mass Flow Meter 1



Gas flow meter parameters
1 Flow range (0~5,10,20,30,50,100,200,300,500...)SCCM
(0~1,2,3,5,10,50,100,200,500...) SLM
2 Accuracy: ±1%F.S
±0.5%F.S
3 Linearity ±0.5~1.5%F.S
4 Repeatability ±0.2%F.S
5 Responding time Electrical characteristics:10sec gas characteristics :
(1~4)sec
6 Differential pressure range 0.1~0.5MPa
7 Max pressure 3MPa
8 Working temperature 0~70℃
9 Digital value RS485 MODBUS
10 Analog value DC 0~5V ,4~20mA
11 Power supply DC +15V/24V,flow meter＜400mA,flow controller＜
600mA
12 Electrical connection DB15
13 Leakage rate 1×10-8SCCSHe
14 Material of base 316L Stainless steel
15 Seal material FKM,nitrile butadiene rubber,chloroprene rubber
16 Glad hand Φ3,Φ6,Φ10,1/8〞,1/4〞,3/8〞



High Precision RS485 RS232 Gas Pressure Test Gauge Gas Mass Flow Meter 2

High Precision RS485 RS232 Gas Pressure Test Gauge Gas Mass Flow Meter 3 High Precision RS485 RS232 Gas Pressure Test Gauge Gas Mass Flow Meter 4 High Precision RS485 RS232 Gas Pressure Test Gauge Gas Mass Flow Meter 5

SS316L MATERIAL


The base material of the flow meter controller is S316L,and the material that contacts the gas is also SS316L.It can measure some weak corrosive gases. When measuring other sfrong corrosive gases and organic solvent gases, it should be declared when ordering.

0.5%HIGHPRECISION







The standard accuracy of gas mass flowmeters is 0.5%. 1.0% of reading,and the repeatability of 0.5% full scale accuracy is 0.2%.The accuracy of the
controller is 1.0%(full scale accuracy)

FLOW CONTROLLER






The flow range of the miniature gas massflowcontroller is the same as that of the flowmeterthe valve control range ratio is 50:1and the
proportional control valve accuracy is 1.0%.



High Precision RS485 RS232 Gas Pressure Test Gauge Gas Mass Flow Meter 6

Application

High Precision RS485 RS232 Gas Pressure Test Gauge Gas Mass Flow Meter 7

High Precision RS485 RS232 Gas Pressure Test Gauge Gas Mass Flow Meter 8



FAQ



1. What’s the MOQ?
A: All products are in stock, MOQ is 1 pcs, Generally according to the requirements of customers, no matter how
many we can accept.



2. Do you test all goods before delivery?
A: We have the stric QC process and offer you the videos of all step.


3. If any question when I got the product,how to solve it?
A: The product have warranty and we will offer you the online or video technical support.



4. Do you accept OEM order? (Can I make in my brand or any sticker? )
A: Yes, MOQ is 100 piece.



5. How long will the shipment take?
A: If it's express, it will take 3~7days. If it by sea,it will take about 20~20days



6. What kinds of payment do you accept?
A: T/T,Western Union, Paypal, credit card and trade assurance on Alibaba.
