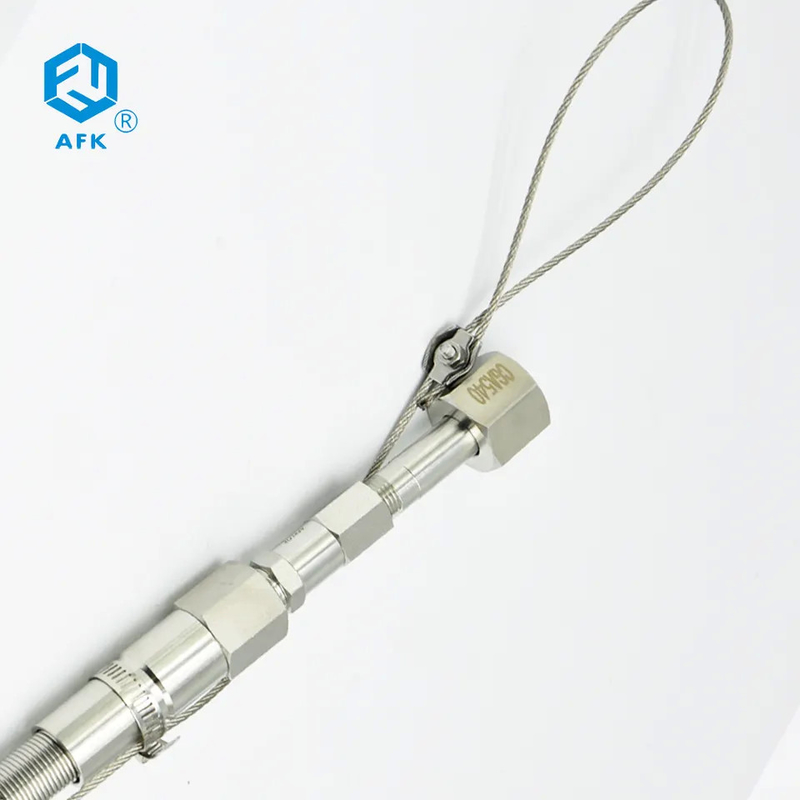

304SS Flexible Metal Hose With Safety Cable For LPG Gas Cylinder
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xTechnics | Casting | Connection | Male |
---|---|---|---|
Head Code | Hexagon | Shape | Equal |
Product Name | High Pressure Hose | Size | 0.5m~2m |
Material | 304SS | Working Temperature | 0~200 |
High Light | Flexible Metal Hose With Safety Cable,304SS Flexible Metal Hose,Flexible Metal Hose For Gas Cylinder |
Selection
lengths | Size | Inner Tube Material | Mesh sleeve spring material 304 |
0.3m | 1/4 NPT Female thread | 316 | Mesh sleeve spring 304 |
0.4m | 1/4 NPT Female thread | 316 | Mesh sleeve spring 304 |
0.6m | 1/4 NPT Female thread | 316 | Mesh sleeve spring 304 |
1m | 1/4,3/8 NPT Female thread | 316 | Mesh sleeve spring 304 |
1.5m | 1/4 NPT Female thread | 316 | Mesh sleeve spring 304 |
2m | 1/4,3/8 NPT Female thread | 316 | Mesh sleeve spring 304 |
3m | 1/4,1/2 NPT Female thread | 316 | Mesh sleeve spring 304 |
8m | 1/4 NPT Female thread | 316 | Mesh sleeve spring 304 |
10m | 1/4 NPT Female thread | 316 | Mesh sleeve spring 304 |
The working principle of stainless steel high pressure hose
Working Principle: When a fluid or gas is pumped through the hose, the inner tube resists expansion due to the pressure and the braided layer provides reinforcement to prevent bursting. The outer layer protects the hose from external damage and provides a barrier against the environment. The stainless steel construction of the hose allows it to withstand high pressures and temperatures, as well as resist corrosion and damage from exposure to the elements.
Applications: Stainless steel high pressure hoses are typically used in applications where fluids or gases need to be conveyed under high pressure, such as hydraulic systems, chemical processing, and oil and gas applications. The hoses are able to withstand extreme conditions and provide a reliable and durable solution for high-pressure fluid and gas transport.
Overall, the working principle of a stainless steel high pressure hose is based on the combination of the physical properties of the stainless steel material and the design of the hose, which allows it to withstand high pressures and temperatures while resisting corrosion and damage.
Features of Flexible Air Hose with High Pressure Metal Braid
- All-metal hose promotes corrosion resistance.
- 316L stainless steel annular convoluted core.
- Working pressure rating from vacuum to 3000 psig (207 bar).
- Working temperature rating from -53°C(-65°F) to 260°C (500°F).
- Single braid layer of 316L stainless steel promotes hose pressure containment and exhibits strong performance in dynamic cycling applications.
- Commonly used in vacuum applications and medium-pressure corrosive environments, or where permeation is undesirable.
- End connections : NPT 1/4" female
Application scenarios for High Pressure Flexible Hoses
High-pressure flexible hoses are used in a variety of applications where a combination of high pressure and flexibility is required. Here are some common application scenarios for high-pressure flexible hoses:
Gas supply systems,Hydraulic systems,Pneumatic systems,Chemical processing,Waterjet cutting,Pressure testing.
Overall, high-pressure flexible hoses are critical components in many different types of industrial, commercial, and residential applications where a combination of high pressure and flexibility is required.
FAQ
1. What’s the MOQ?
A: All products are in stock, MOQ is 1 pcs, Generally according to the requirements of customers, no matter how many we can accept.
2. Do you test all goods before delivery?
A: We have the stric QC process and offer you the videos of all step.
3. If any question when I got the product,how to solve it?
A: The product have warranty and we will offer you the online or
video technical support.
4. Do you accept OEM order? (Can I make in my brand or any sticker? )
A: Yes, MOQ is 100 piece.
5. How long will the shipment take?
A: If it by sea,it will take about 20~30days.If it's express, it will take 3~7days.
6. What kinds of payment do you accept?
A: T/T,Western Union, Paypal, credit card and trade assurance on Alibaba.
