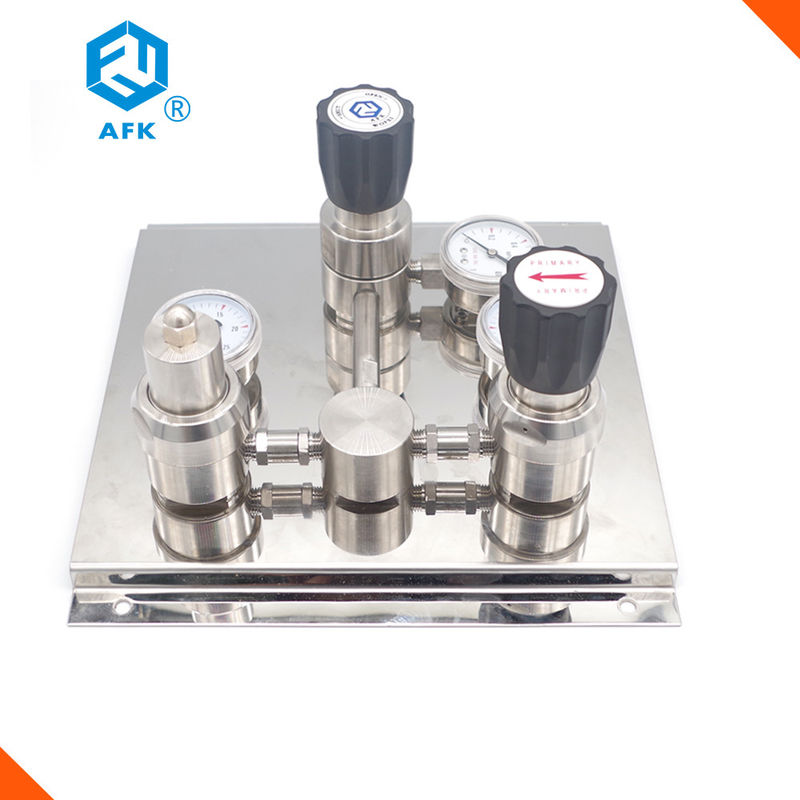

R1100 Semi-automatic Changeover Switch Device with Stainless Steel Pressure Reducing Valve

Place of Origin China
Brand Name AFK
Certification CE
Model Number R1100
Minimum Order Quantity 2
Price Negotiable
Packaging Details color box
Delivery Time 5-7days
Supply Ability 3000pcs per /week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Maximum Inlet Pressure 500psi, 3000psi Outlet Pressure 0~25, 0~50, 0~50,0~250,0~500psig
Body Material Ss316, Nickel Plated Brass
High Light

gas control panel

,

automatic switchover manifold

Leave a Message
Product Description
Technical Parameters


Specification
Body
SS316L, brass, nickel plated brass ( Weigh :0.9kg)
Cover
SS316L, brass, nickel plated brass
Diaphragm
SS316L
Stainer
SS316L(10um)
Valve Seat
PCTFE,PTFE,Vespel
Spring
SS316L
Plunger Valve Core
SS316L







Material
Maximun Input Pressure
500,3000 psig
Outlet pressure range
0~25, 0~50, 0~100, 0~250, 0~500 psig
Safety Testing Pressure
1.5 times of maximum input pressure
Working Temperature
-40°F~ +165°F (-40°C~ +74°C )
Leakage Rate
2×10-8 atm cc/sec He
CV Value
0.08







R1100 Semi-automatic Changeover Switch Device with Stainless Steel Pressure Reducing Valve 0

R1100 Semi-automatic Changeover Switch Device with Stainless Steel Pressure Reducing Valve 1

Ordering Information

R1100 L 150
Name of Series Body Material Pressure Contol Range
R1100 Series L:316L 25:0~25psig
  B:Brass 50:0~50psig
    100:0~100psig
    200:0~200psig

Please provide the following parameters in your inquiry as many as possible:

1. Inlet actual working pressure

2. Outlet actual working pressure

3. Inlet conenction and size

4. Outlet conenction and size

5. Material: brass, nickel plated brass, stainless steel

6. If you have special flow rate requirements and a panel, please indicate it.

7. Quantity

Notes: The ranges of pressure gauges, inlet connector, outlet connector can be equiped according your requirements. Please write the above descriptions as possible as you can. If you can not confirmed it at the moment, just send us inquiry, we also can recommend our regular model for you.



Application



R1100 Semi-automatic Changeover Switch Device with Stainless Steel Pressure Reducing Valve 2

R1100 Semi-automatic Changeover Switch Device with Stainless Steel Pressure Reducing Valve 3
