Piston Back Pressure Regulating Valve , 6000 Psi Back Pressure Relief Valve
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Structure | Piston-sensed Configuraton | Maximum Inlet Pressure | 6000 Psig |
|---|---|---|---|
| Proof Pressure | 1.5 Times Of Maximum Rated Presure | Working Temperature | -40° F ~+165° F(-40°C+74°C) |
| Leakage Rate | 2*10-8 Atm Cc/sec He | Cv | 0.15 |
| Body Material | 316L | Seat | Vespel |
| Port | SHENZHEN | ||
| High Light | back pressure control valve,pneumatic back pressure regulator |
||
Product Description
Product Description

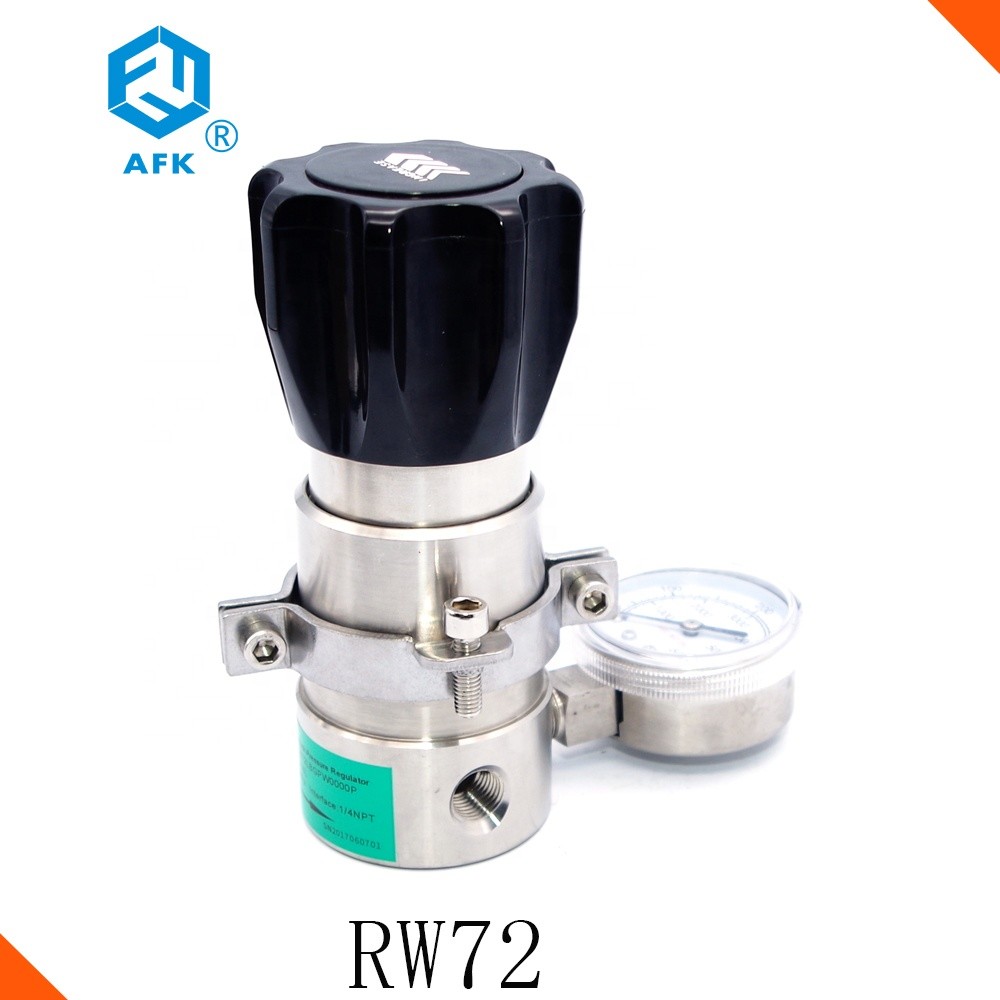

RW72 series back pressure regulator is piston-sensed configuration, applicable to high pressure gas or liquid applications.
Technical parameters
|
Maximum Inlet Pressure
|
6000psi
|
||
|
Proof pressure
|
1.5times maximum inlet pressure
|
||
|
Safety test pressure
|
1.5 times maximum inlet pressure
|
||
|
Operating Temperature
|
-40°F to 165°F / -40°c to 74°c
|
||
|
Leakage Rate Against Atmosphere
|
2*10-8atm cc/sec he
|
||
|
Cv value
|
0.15
|
||
Material of Parts
|
Body
|
316L
|
||
|
Seat
|
Vespel
|
||
|
Piston
|
316L
|
||
|
O-ring
|
Viton
|
||
Ordering Information
|
Series
|
Body material
|
Inlet pressure
|
G
|
Inlet connection
|
Outlet connection
|
|
RW72
|
A
|
D
|
G
|
02
|
02
|
|
|
A
|
L:0-500psig
|
W:none
|
01:1/4NPT (F)
|
01:1/4NPT (F)
|
|
|
B
|
K:0-800psig
|
P:PSI/bar
|
02:3/8NPT (F)
|
02:3/8NPT (F)
|
|
|
|
I:10-1500psig
|
G:MPa
|
04:1/2NPT (F)
|
04:1/2NPT (F)
|
|
|
|
H:15-2500psig
|
|
05:1/2NPT(M)
|
05:1/2NPT(M)
|
|
|
|
G:25-4000psig
|
|
12:3/8LOK
|
12:3/8LOK
|
|
|
|
Q:50-6000psig
|
|
13:1/2LOK
|
13:1/2LOK
|
|
|
|
M:200-10000psig
|
|
|
|
|
|
|
|
|
|
