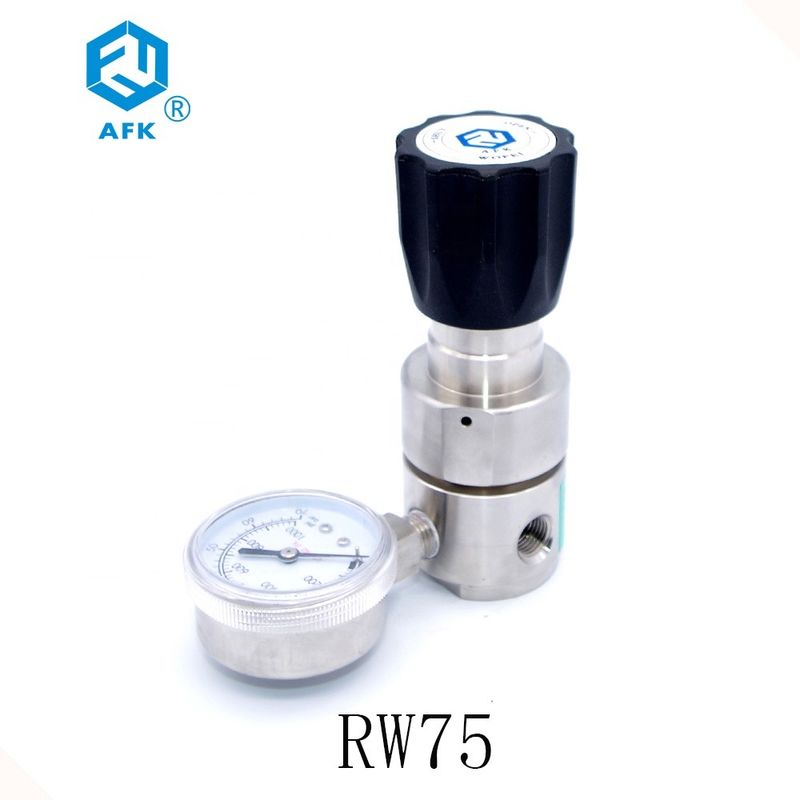

Low Pressure Back Pressure Regulating Valve 300 Psi Piston CE Certification

  • Low Pressure Back Pressure Regulating Valve 300 Psi Piston CE Certification
  • Low Pressure Back Pressure Regulating Valve 300 Psi Piston CE Certification
  • Low Pressure Back Pressure Regulating Valve 300 Psi Piston CE Certification
  • Low Pressure Back Pressure Regulating Valve 300 Psi Piston CE Certification
  • Low Pressure Back Pressure Regulating Valve 300 Psi Piston CE Certification
  • Low Pressure Back Pressure Regulating Valve 300 Psi Piston CE Certification
Place of Origin Guangdong, China (Mainland)
Brand Name AFK
Certification CE
Model Number RW75
Minimum Order Quantity >=1 Sets
Price Negotiable
Packaging Details Export packing
Supply Ability 10000 Set/Sets per Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Structure Piston-sensed Configuration Maximum Inlet Pressure 1500 Psi
Proof Pressure 1.5 Times Of Maximum Inlet Pressure Working Temperature -40° F ~+165° F(-40°C+74°C)
Leakage Rate 2*10-8 Atm Cc/sec He Cv 0.06
Body Material 316L Seat PCTFE, Vespel
Port SHENZHEN
High Light

backflow pressure regulator

,

pneumatic back pressure regulator
Leave a Message
Product Description

Main Features

Name: RW75 Back pressure regulator
Brand: AFK
Original: China
RW75 Series Back pressure Regulator is Piston-sensed single-stage regulator, applicable to where high pressure and low flow control is desired. Available in stainless steel.



Features

* Piston-sensed Configuration
*Body port size: 1/4" NPT (F)
*2" Pressure Gauge
*Proof Pressure: 1.5 times maximum inlet pressure
*Temperature Range: -40℉ to 160℉ (-40℃ to 74℃)

*Leak Rate: 2 X 10-8 atm. cc/sec He

*CV:0.06

Materials

* Body: 316L

* Seat: PCTFE, Vespel

* Piston: 316L

* O-ring: Viton

Typical applications

* Gas Chromatography

* Research Laboratories

* Petrochemical Industry

* Power Plant



Low Pressure Stainless Steel Nitrogen Gas Back Pressure Valve
Low Pressure Stainless Steel Nitrogen Gas Back Pressure Valve
ORDERING INFORMATION
SERIES
BODY MATERIAL
BODY PORTS
INLET PRESSURE
GAUGES
INLET CONNECTION
OUTLET CONNECTION
RW75
L
A
G
G
00
00

L: 316L
B: brass
A
B
G: 0-150Psi
I : 0-300Psi
K: 0-600Psi
L: 0-800Psi
H: 0-15000Psi


W: None
P: psi/bar
G: Mpa
00:1/4" NPT(F)
01:1/4" NPT(M)
10:1/8" LOK
11: 1/4" LOK
12: 3/8" LOK

00:1/4" NPT(F)
01:1/4" NPT(M)
10:1/8" LOK
11: 1/4" LOK
12: 3/8" LOK
