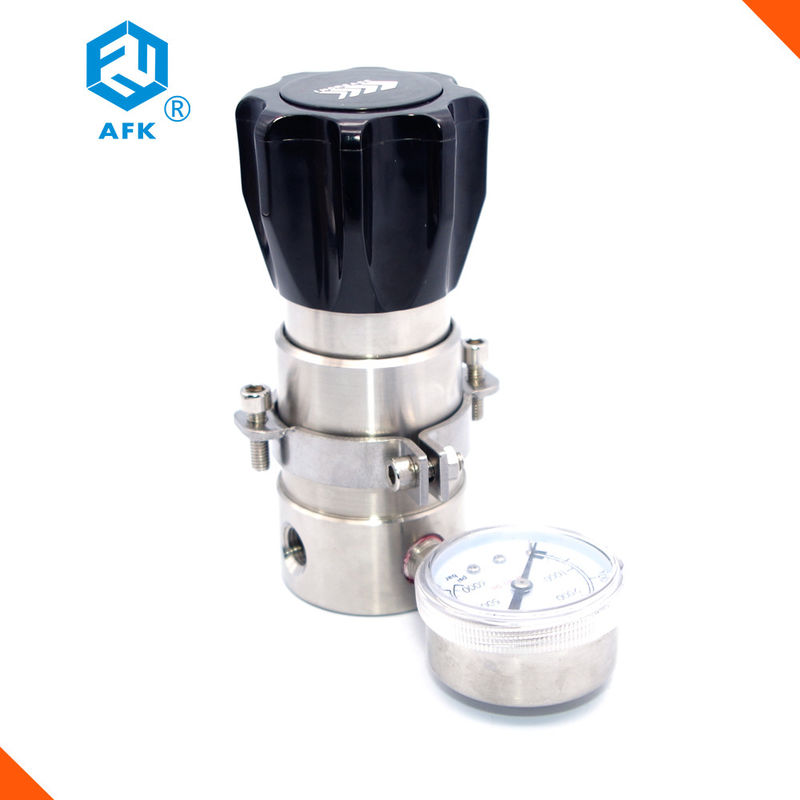

Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Certification: CE
Model Number: RW72
Payment & Shipping Terms
Minimum Order Quantity: >=1 Sets
Price: Negotiable
Packaging Details: Export packing
Supply Ability: 10000 Set/Sets per Week
Structure: |
Piston-sensed Configuraton |
Maximum Inlet Pressure: |
6000 Psig |
Proof Pressure: |
1.5 Times Of Maximum Rated Presure |
Working Temperature: |
-40° F ~+165° F(-40°C+74°C) |
Leakage Rate: |
2*10-8 Atm Cc/sec He |
Cv: |
0.15 |
Body Material: |
316L |
Seat: |
Vespel |
Port: |
SHENZHEN |
Structure: |
Piston-sensed Configuraton |
Maximum Inlet Pressure: |
6000 Psig |
Proof Pressure: |
1.5 Times Of Maximum Rated Presure |
Working Temperature: |
-40° F ~+165° F(-40°C+74°C) |
Leakage Rate: |
2*10-8 Atm Cc/sec He |
Cv: |
0.15 |
Body Material: |
316L |
Seat: |
Vespel |
Port: |
SHENZHEN |
*Body: 316L
*Seat: Vespel
*Piston: 316L
*O-ring: Viton
Typical applications
*Chromatography
*Laboratories
*Petrochemical industry
*Power plant equipments
* Piston-sensed Configuration
* Maximum inlet pressure: 6000psi
* Proof pressure: 1.5 times maximum inlet pressure
* Temperature Range: -40℉ to 160℉ (-40℃ to 74℃)
* Leak Rate: 2 X 10-8 atm. cc/sec He
* CV: 0.15
|
ORDERING INFORMATION
|
||||||
|
SERIES
|
BODY MATERIAL
|
BODY PORTS
|
INLET PRESSURE
|
GAUGES
|
INLET CONNECTION
|
OUTLET CONNECTION
|
|
RW72
|
L
|
A
|
D
|
G
|
02
|
02
|
|
|
L: 316L
B: brass
|
A
B
|
L: 0-500Psi
K: 0-800Psi
I: 10-1500Psi
H:15-2500Psi
G: 25-4000Psi
Q: 50-6000Psi
|
W: None
P: psi/bar
G: Mpa
|
01:1/4"NPT(F)
02:3/8"NPT(F)
04:1/2"NPT(F)
05:1/2"NPT(M)
12:3/8"LOK
13:1/2"LOK
|
01:1/4"NPT(F)
02:3/8"NPT(F) 04:1/2"NPT(F) 05:1/2"NPT(M) 12:3/8"LOK 13:1/2"LOK |
