Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Model Number: R11
Payment & Shipping Terms
Minimum Order Quantity: 1 - 9 Pieces
Price: Negotiable
Packaging Details: Each piece with a PP bag first, then put in a small box, outside is in carton.
Supply Ability: 2000 Piece/Pieces per Week
Material: |
316L SS |
Maximum Inlet Pressure: |
3000, 2200, 500PSI |
Output Pressure: |
0-25,0-50,0-100, 0-250, 0-500PSI |
Working Temperature: |
-23~+74 Deg C |
Applied Gas: |
Pure Gases, Standard Gases, Corrosive Gases And So On |
Bonnet Material: |
Ss316L |
Seat: |
PCTFE |
Spring: |
Ss316L |
O-ring: |
Viton |
Strainer: |
316L (um) |
Port: |
Shenzhen |
Material: |
316L SS |
Maximum Inlet Pressure: |
3000, 2200, 500PSI |
Output Pressure: |
0-25,0-50,0-100, 0-250, 0-500PSI |
Working Temperature: |
-23~+74 Deg C |
Applied Gas: |
Pure Gases, Standard Gases, Corrosive Gases And So On |
Bonnet Material: |
Ss316L |
Seat: |
PCTFE |
Spring: |
Ss316L |
O-ring: |
Viton |
Strainer: |
316L (um) |
Port: |
Shenzhen |
Maximum Inlet Pressure
|
500,3000psig
|
||
Outlet Pressure Ranges
|
0~25, 0~50, 0~50,0~250,0~500psig
|
||
Safety test pressure
|
1.5 times maximum inlet pressure
|
||
Operating Temperature
|
-40°F to 165°F / -40°c to 74°c
|
||
Leakage Rate Against Atmosphere
|
2*10-8atm cc/sec he
|
||
Cv value
|
0.14
|
Body
|
316L,Brass
|
||
Bonnet
|
316L. Brass
|
||
Diaphragm
|
316L
|
||
Strainer
|
316L(10mm)
|
||
Seat
|
PCTFE,PTEE,Vespel
|
||
Spring
|
316L
|
||
Plunger valve core
|
316L
|

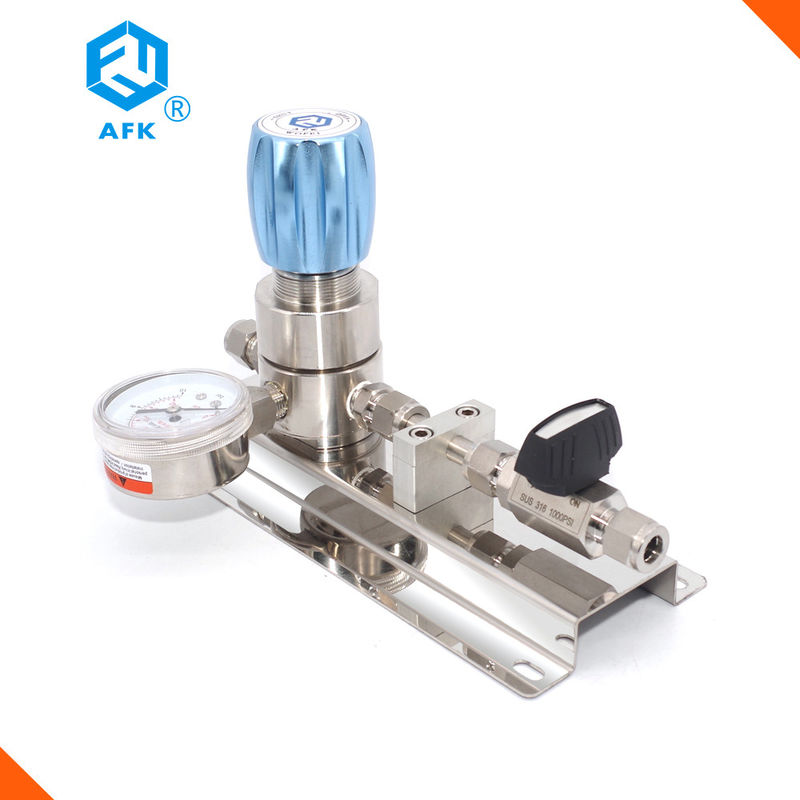

WL Secondary Pressure Reducing Regulator
Brand:AFK
One Panel to mount on the wall.
WL4
|
2
|
1
|
5
|
H
|
S
|
1
|
N2
|
Series
|
inlet connection
|
Outlet connection
|
Body
|
Inlet pressure
|
outlet pressure
|
Gauge
|
N2
|
WL4
|
1:6mm barb fitting
|
1: 1/4" welding
|
s: ss316
|
H:1000PSI
|
1:25PSI
|
1:Mpa
|
O2
|
|
2:1/4“O.D.
|
2: 3/8"welding
|
C:nickel plated brass
|
M:500psi
|
2:50PSI
|
2:bar/PSI
|
H2
|
|
3:8mm barb fitting
|
5.1/2" welding
|
|
L:300PSI
|
3:100PSI
|
3:PSI/kpa
|
C2H2
|
|
4:3/8"O.D.
|
7: 1/4"O.D.
|
|
|
4:150PSI
|
|
CH4
|
|
5:10mm barb fitting
|
8:3/8"O.D.
|
|
|
5:250PSI
|
|
AR
|
|
6:1/2"O.D.
|
9: 1/2"O.D.
|
|
|
|
|
HE
|
|
|
|
|
|
|
|
Air
|
