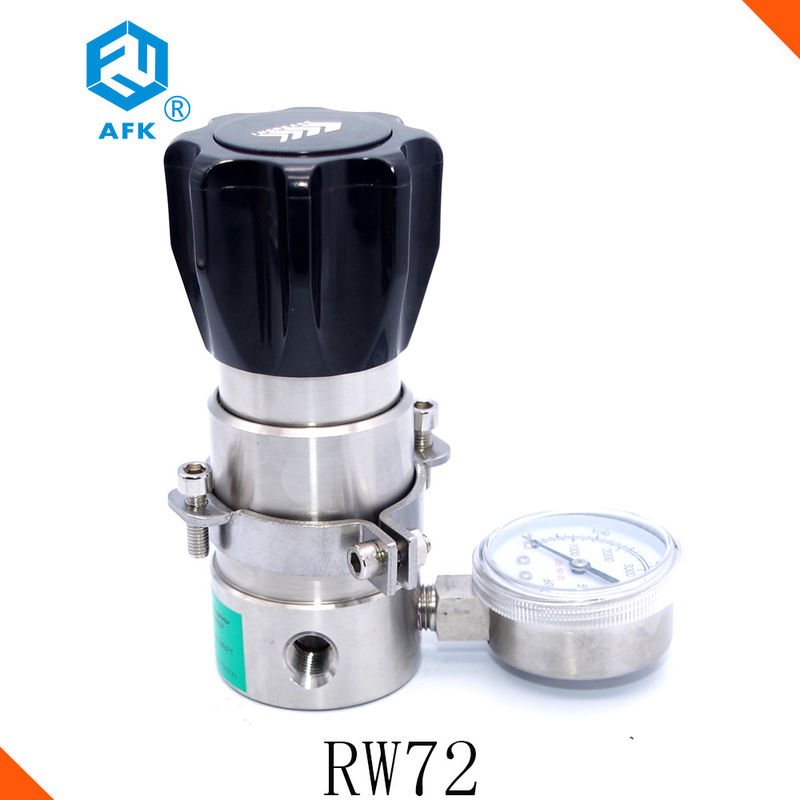

0.15 CV Back Pressure Regulating Valve , 316L Natural Gas Pressure Regulator

Product Details

Place of Origin: Guangdong, China (Mainland)

Brand Name: AFK

Certification: CE

Model Number: RW72

Payment & Shipping Terms

Minimum Order Quantity: >=1 Sets

Price: Negotiable

Packaging Details: Export packing

Supply Ability: 10000 Set/Sets per Week

Get Best Price
Contact Now
Specifications
Highlight:

backflow pressure regulator

,

pneumatic back pressure regulator

Structure:
Piston-sensed Configuraton
Maximum Inlet Pressure:
6000 Psig
Proof Pressure:
1.5 Times Of Maximum Rated Presure
Working Temperature:
-40° F ~+165° F(-40°C+74°C)
Leakage Rate:
2*10-8 Atm Cc/sec He
Cv:
0.15
Body Material:
316L
Seat:
Vespel
Port:
SHENZHEN
Structure:
Piston-sensed Configuraton
Maximum Inlet Pressure:
6000 Psig
Proof Pressure:
1.5 Times Of Maximum Rated Presure
Working Temperature:
-40° F ~+165° F(-40°C+74°C)
Leakage Rate:
2*10-8 Atm Cc/sec He
Cv:
0.15
Body Material:
316L
Seat:
Vespel
Port:
SHENZHEN
Description
0.15 CV Back Pressure Regulating Valve , 316L Natural Gas Pressure Regulator

Features

*Body: 316L

*Seat: Vespel

*Piston: 316L

*O-ring: Viton



Typical applications



*Chromatography

*Laboratories

*Petrochemical industry

*Power plant equipments

Features



* Piston-sensed Configuration
* Maximum inlet pressure: 6000psi
* Proof pressure: 1.5 times maximum inlet pressure
* Temperature Range: -40℉ to 160℉ (-40℃ to 74℃)
* Leak Rate: 2 X 10-8 atm. cc/sec He
* CV: 0.15

Water Industrial High Pressure Stainless Steel Back Pressure Regulator

Water Industrial High Pressure Stainless Steel Back Pressure Regulator



ORDERING INFORMATION
SERIES
BODY MATERIAL
BODY PORTS
INLET PRESSURE
GAUGES
INLET CONNECTION
OUTLET CONNECTION
RW72
L
A
D
G
02
02

L: 316L
B: brass
A
B
L: 0-500Psi
K: 0-800Psi
I: 10-1500Psi
H:15-2500Psi
G: 25-4000Psi
Q: 50-6000Psi

W: None
P: psi/bar
G: Mpa
01:1/4"NPT(F)
02:3/8"NPT(F)
04:1/2"NPT(F)
05:1/2"NPT(M)
12:3/8"LOK
13:1/2"LOK
01:1/4"NPT(F)
02:3/8"NPT(F)
04:1/2"NPT(F)
05:1/2"NPT(M)
12:3/8"LOK
13:1/2"LOK
