Co2 Brass Pressure Regulator With Flow Meter Outlet Connection M16-1.5RH
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max Inlet Pressure | 25 Mpa | Inlet Connection | G5/8" - RH(F) |
|---|---|---|---|
| Outlet Connection | M16-1.5RH(M) | Material | Brass |
| Pressure Gauge | 2" | Port | SHENZHEN |
| High Light | brass air regulator,plumbing pressure reducer |
||
Product Description
Product Description

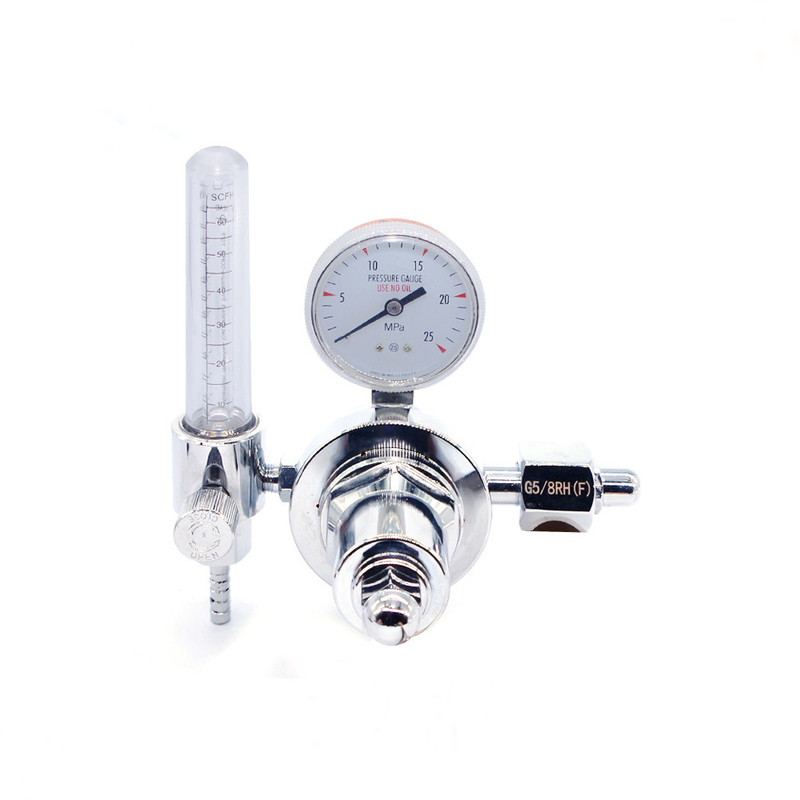

Brass Plated Nickel Single Stage CO2 Pressure Regulator with Flow Meter
R190 Series flow meter pressure regulator, suitable for industrial Manufacturing, laboratory, MIG/TIG gas protect and so on.
1)Model: R190 Gas Pressure Regulator
2)Outlet pressure: 25 Mpa
3)Gauge: One
4)Inlet connection: G5/8"-RH(F)
5)Outlet connection: M16-1.5RH(M)
Detailed Images
|
Feature highlight
|
|
|
1
|
Single stage pressure regulator
|
|
2
|
The whole is made of high quality brass
|
|
3
|
2" pressure gauge
|
|
4
|
The outlet pressure is set to 0.35 Mpa
|
|
5
|
Weight: 2.1KG
|
|
Main component material
|
|
|
Body
|
Brass
|
|
Bonnet
|
Brass
|
|
Diaphragm
|
Neoprene
|
|
Filter
|
Brass
|
|
Medium
|
CO2, Argon, Nitrogen
|
Product Model
| Model | Application Gas | Outlet Flowmeter | Inlet Gauge(MPa) | Inlet thread | Outlet Thread |
| R190C-25L | Carbon Dioxide | 0-25LPI CO2 | 25 | G5/8-RH(F) | M16-1.5RH(M) |
| R190A-26L | Argon | 0-25LPI Ar | 25 | G5/8-RH(F) | M16-1.5RH(M) |
| R190N-30L | Nitrogen | 0-30LPI N2 | 25 | G5/8-RH(F) | M16-1.5RH(M) |
Application Scenarios for Flow Meter Type Pressure Reducers
- A flow meter type pressure reducer can be used in various industrial and laboratory applications where a consistent gas flow rate is required. One common application scenario is in MIG/TIG gas shielded welding.
- During MIG/TIG welding, a flow of gas is required to protect the welding area from contamination and oxidation. The gas flow rate must be consistent to ensure that the weld is properly protected and that the process runs smoothly. A flow meter type pressure reducer can be used to regulate the flow of gas to the welding torch, ensuring that the gas flow rate is consistent and that the weld is properly protected.
- In industrial manufacturing, a flow meter type pressure reducer can be used in applications such as gas chromatography, chemical processing, and semiconductor manufacturing. In gas chromatography, a precise and consistent flow of gas is required to carry the sample through the column and to the detector. In chemical processing and semiconductor manufacturing, a consistent flow of gas is required to ensure that the process runs smoothly and that the final product meets quality standards.
- In laboratory settings, a flow meter type pressure reducer can be used in applications such as gas analysis, cell culture, and research experiments. In gas analysis, a precise and consistent flow of gas is required to ensure accurate results. In cell culture, a consistent flow of gas is required to maintain the appropriate environment for the cells. In research experiments, a flow meter type pressure reducer can be used to regulate the flow of gases such as nitrogen, oxygen, or carbon dioxide to create specific experimental conditions.
FAQ
Q1. What about the lead time?
A2: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q2. Do you have any MOQ limit ?
A2: Low MOQ 1 pic.
Q3. How do you ship the goods and how long does it take to arrive?
A3: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days. Airline and sea shipping also optional.
Q4. How to proceed an order ?
A1: Firstly let us know your requirements or application.
A2: Secondly We quote according to your requirements or our suggestions.
A3: Thirdly customer confirms the samples and places deposit for formal order.
A4: Fourthly We arrange the production.
