Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Certification: CE
Model Number: RW71
Payment & Shipping Terms
Minimum Order Quantity: >=1 Sets
Price: Negotiable
Packaging Details: Export packing
Supply Ability: 10000 Set/Sets per Week
Body Thread: |
1/4"NPT Female |
Maximum Inlet Pressure: |
250 Psig |
Structure: |
Diaphragm-sensed Single-stage |
Proof Pressure: |
1.5 Times Of Maximum Rated Presure |
Working Temperature: |
-40° F ~+165° F(-40°C+74°C) |
Leakage Rate: |
2*10-8 Atm Cc/sec He |
Cv: |
0.08 |
Body Material: |
316L |
Seat: |
PTFE, PCTFE |
Diaphragm: |
316L |
Port: |
SHENZHEN |
Body Thread: |
1/4"NPT Female |
Maximum Inlet Pressure: |
250 Psig |
Structure: |
Diaphragm-sensed Single-stage |
Proof Pressure: |
1.5 Times Of Maximum Rated Presure |
Working Temperature: |
-40° F ~+165° F(-40°C+74°C) |
Leakage Rate: |
2*10-8 Atm Cc/sec He |
Cv: |
0.08 |
Body Material: |
316L |
Seat: |
PTFE, PCTFE |
Diaphragm: |
316L |
Port: |
SHENZHEN |
Product Specification
1) Single-stage configuration
2)Body port: 1/4" NPT(F)
3)2" Pressure Gauge: 1.5 times maximum inlet pressure
4)Temperature range: -40℉ to 165℉ (-40℃ to 74℃)℉
5)Leak Rate: 2 x 10-8atm.cc/sec He
6)CV:0.08
7)Material: Stainless steel or Brass

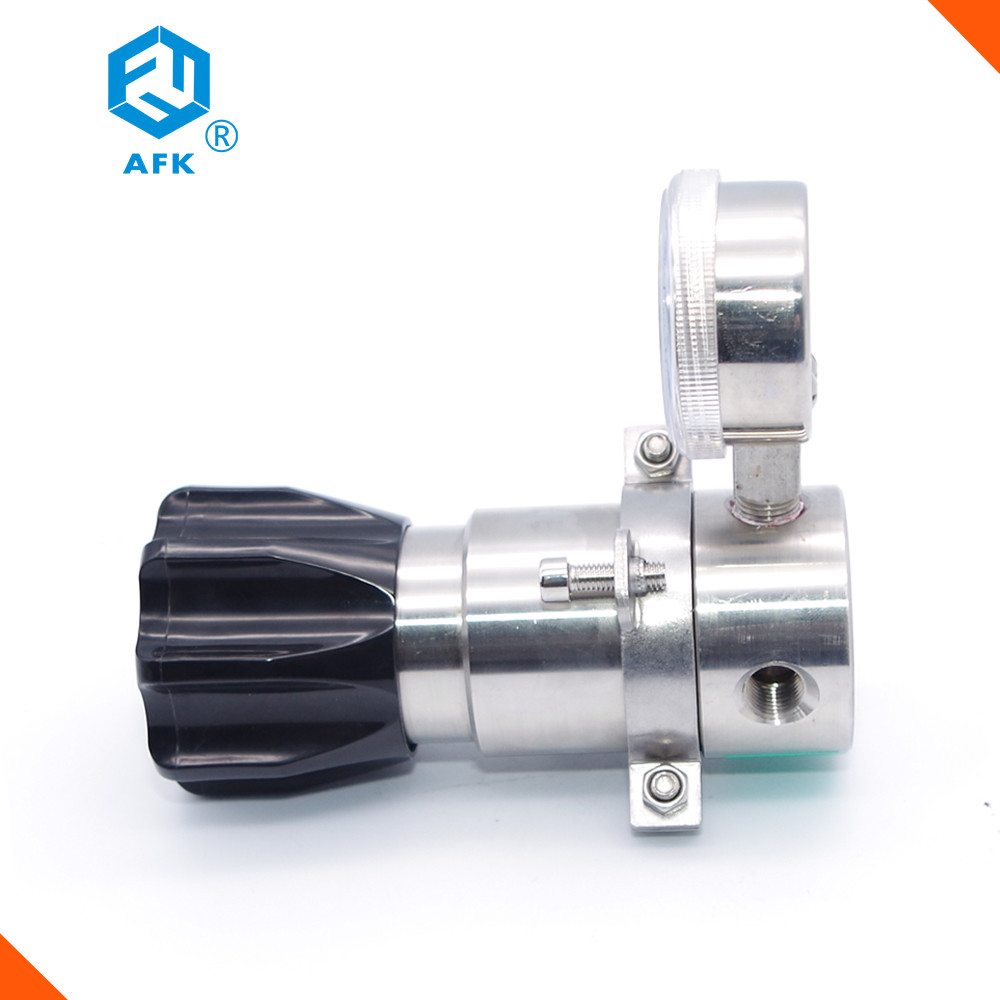

Name: RW71 Back pressure regulator
Brand: AFK
Original: China
RW71 Series regulator is a diaphragm-sensed single-stage, High Purity-style regulator, designed for application where a constant back pressure is desired. Available in nickel-plated brass and stainless steel.
*Body: 316L
*Seat: PCTFE, PTFE
*Diaphragm: 316L
Typical applications
*Process Control
*Laboratories
*Petrochemical industry
*Power plant equipments
|
ORDERING INFORMATION
|
|
||||||
|
SERIES
|
BODY MATERIAL
|
BODY PORTS
|
INLET PRESSURE
|
GAUGES
|
INLET CONNECTION
|
OUTLET CONNECTION
|
Optional
|
|
RW71
|
L
|
A
|
D
|
G
|
02
|
02
|
P
|
|
|
L: 316L
B: brass
|
A
B
|
G: 0-250Psi
I:0-100Psi
K:0-50Psi
L:0-25Psi
|
W: None
P: psi/bar
G: Mpa
|
00:1/4"NPT(F)
01:1/4"NPT(M)
10:1/8" LOK
11:1/4" LOK
12: 3/8" LOK
|
00:1/4"NPT(F)
01:1/4"NPT(M) 10:1/8" LOK 11:1/4" LOK 12: 3/8" LOK |
P: Panel
mounting
|
