Stainless Steel Back Pressure Regulating Valve Low Pressure For Power Plant

Product Details

Place of Origin: Guangdong, China (Mainland)

Brand Name: AFK

Certification: CE

Model Number: R75

Payment & Shipping Terms

Minimum Order Quantity: >=1 Sets

Price: Negotiable

Packaging Details: Export packing

Supply Ability: 10000 Set/Sets per Week

Get Best Price
Contact Now
Specifications
Highlight:

back pressure control valve

,

backflow pressure regulator

Structure:
Piston-sensed Configuration
Maximum Inlet Pressure:
1500 Psi
Proof Pressure:
1.5 Times Of Maximum Inlet Pressure
Working Temperature:
-40° F ~+165° F(-40°C+74°C)
Leakage Rate:
2*10-8 Atm Cc/sec He
Cv:
0.06
Body Material:
316L
Seat:
PCTFE, Vespel
Port:
SHENZHEN
Structure:
Piston-sensed Configuration
Maximum Inlet Pressure:
1500 Psi
Proof Pressure:
1.5 Times Of Maximum Inlet Pressure
Working Temperature:
-40° F ~+165° F(-40°C+74°C)
Leakage Rate:
2*10-8 Atm Cc/sec He
Cv:
0.06
Body Material:
316L
Seat:
PCTFE, Vespel
Port:
SHENZHEN
Description

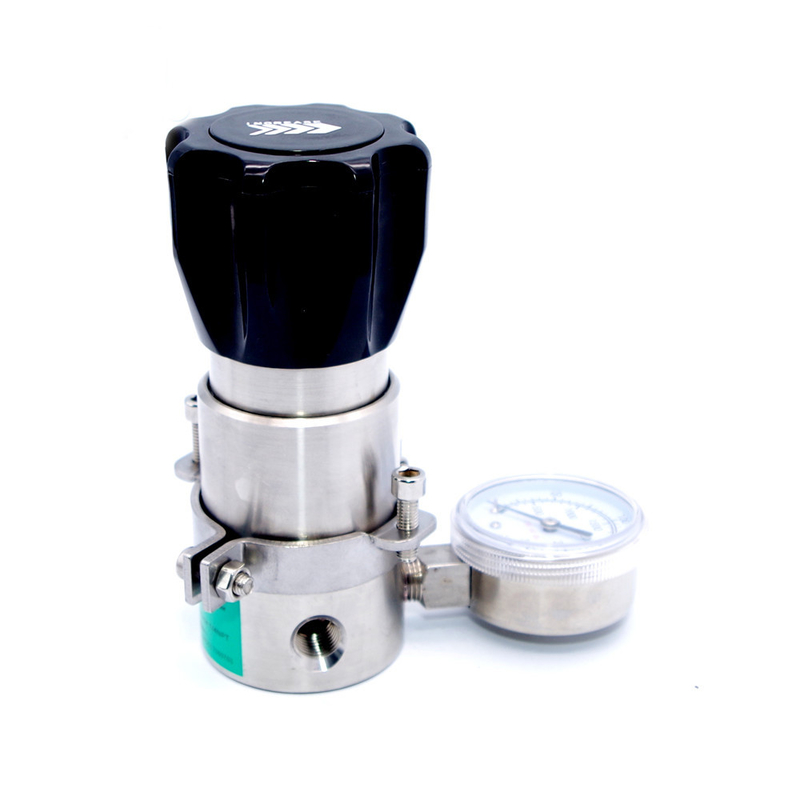

Stainless Steel Back Pressure Regulating Valve Low Pressure For Power Plant

Main Features

Name: RW75 Back pressure regulator
Brand: AFK
Original: China
RW75 Series Back pressure Regulator is Piston-sensed single-stage regulator, applicable to where high pressure and low flow control is desired. Available in stainless steel.



Features

* Piston-sensed Configuration
*Body port size: 1/4" NPT (F)
*2" Pressure Gauge
*Proof Pressure: 1.5 times maximum inlet pressure
*Temperature Range: -40℉ to 160℉ (-40℃ to 74℃)

*Leak Rate: 2 X 10-8 atm. cc/sec He

*CV:0.06

Materials

* Body: 316L

* Seat: PCTFE, Vespel

* Piston: 316L

* O-ring: Viton

Typical applications

* Gas Chromatography

* Research Laboratories

* Petrochemical Industry

* Power Plant



Low Pressure Stainless Steel Nitrogen Gas Back Pressure Valve
Low Pressure Stainless Steel Nitrogen Gas Back Pressure Valve
ORDERING INFORMATION
SERIES
BODY MATERIAL
BODY PORTS
INLET PRESSURE
GAUGES
INLET CONNECTION
OUTLET CONNECTION
RW75
L
A
G
G
00
00

L: 316L
B: brass
A
B
G: 0-150Psi
I : 0-300Psi
K: 0-600Psi
L: 0-800Psi
H: 0-15000Psi


W: None
P: psi/bar
G: Mpa
00:1/4" NPT(F)
01:1/4" NPT(M)
10:1/8" LOK
11: 1/4" LOK
12: 3/8" LOK

00:1/4" NPT(F)
01:1/4" NPT(M)
10:1/8" LOK
11: 1/4" LOK
12: 3/8" LOK
