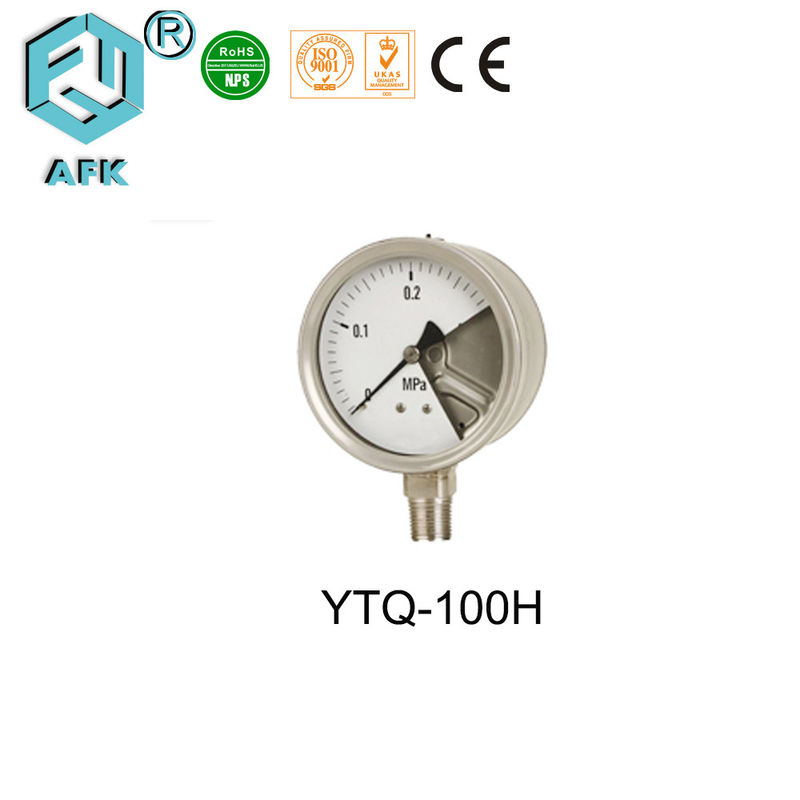

Diaphragm Structure Gas Pressure Test Gauge With Safety Glass / Case

Place of Origin Guangdong, China (Mainland)
Brand Name AFK
Certification CE
Model Number YTQ-100H
Minimum Order Quantity >=1 Sets
Price Negotiable
Packaging Details Export packing
Supply Ability 10000 Set/Sets per Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Accuracy 1% ; 1.5% Backwards Blow Out Stainless Steel Safety Case Design
Range -0.1/160Mpa Working Temperature -20℃-70℃
Wetted Part SUS316 Outward Laminated Safety Glass
Mounting Option Bottom; Center Back; Back Flush
High Light

natural gas line pressure gauge

,

gas cylinder pressure gauge

Leave a Message
Product Description
Diaphragm Gas Pressure Test Gauge Laminated Safety Glass Stainless Steel Safety Case



All stainless steel solid front safety pattern gauge

  • Accuracy: 1.%; 1.5%;
  • Backwards blow out, stainless steel safety case design
  • Wetted part SUS316
  • Range: -0.1/160 Mpa
  • Laminated safety glass
  • Mounting options: bottom; center back; back flush Related Products

Diaphragm Structure Gas Pressure Test Gauge With Safety Glass / Case 0

Polypropylene case safety pattern pressure gauge

  • Accuracy:1%; 1.5%
  • Range:-0.1~160 Mpa
  • Copper alloy internal standard, optional stainless steel internals corrosion-proof
  • Rugged built case with solid baffle and backwards blow out



Sanitary Diaphragm Pressure Gauge

  • Diameter :¢63 mm, ¢98 mm
  • Stainless steel case and internals
  • Accuracy:1%, 1.5%, 2.5%
  • Liquid-filled as option with Type plus " N"



Explosion-proof electric contact pressure gauges

  • Accuracy :1.6(1.5) 2.5
  • Nominal diameter : 160 mm
  • Measuring range : -0.1~0/40 Mpa
  • Contact capacity : 10VA (10W)
  • Maximum working voltage : 380V AC
  • Maximum working current : 0.7A
  • Environment temperature: -20~80℃
  • Explosion-proof mark : Exd II BT5

Stainless steel rugged safety gauges are commonly used in industrial applications where durability and reliability are of paramount importance. Here are some scenarios where stainless steel rugged safety gauges might be used:

  • Oil and gas industry: In the oil and gas industry, stainless steel rugged safety gauges are used to measure the pressure and temperature of the fluids in pipelines, tanks, and other equipment. These gauges are designed to withstand harsh environments, including high temperatures, corrosive fluids, and high pressure.
  • Chemical industry: In the chemical industry, stainless steel rugged safety gauges are used to measure and monitor the pressure and temperature of various chemicals and chemical processes. These gauges are designed to withstand exposure to corrosive and hazardous materials.
  • Food processing industry: In the food processing industry, stainless steel rugged safety gauges are used to monitor the pressure and temperature of food products during processing and storage. These gauges are designed to withstand harsh cleaning agents and high-pressure cleaning procedures.
  • Pharmaceutical industry: In the pharmaceutical industry, stainless steel rugged safety gauges are used to measure and monitor the pressure and temperature of various chemicals and processes used in the production of pharmaceuticals. These gauges are designed to withstand exposure to corrosive and hazardous materials.
  • Aerospace industry: In the aerospace industry, stainless steel rugged safety gauges are used to monitor the pressure and temperature of hydraulic and pneumatic systems in aircraft and spacecraft. These gauges are designed to withstand extreme temperatures, vibration, and shock.
  • Power generation industry: In the power generation industry, stainless steel rugged safety gauges are used to measure and monitor the pressure and temperature of steam, gas, and other fluids in power generation equipment. These gauges are designed to withstand high temperatures and pressures.
  • Automotive industry: In the automotive industry, stainless steel rugged safety gauges are used to monitor the pressure and temperature of engine oil, transmission fluid, and other fluids in vehicles. These gauges are designed to withstand exposure to high temperatures, vibration, and shock.

Overall, stainless steel rugged safety gauges are used in a wide variety of industrial applications where durability, reliability, and accuracy are critical.
