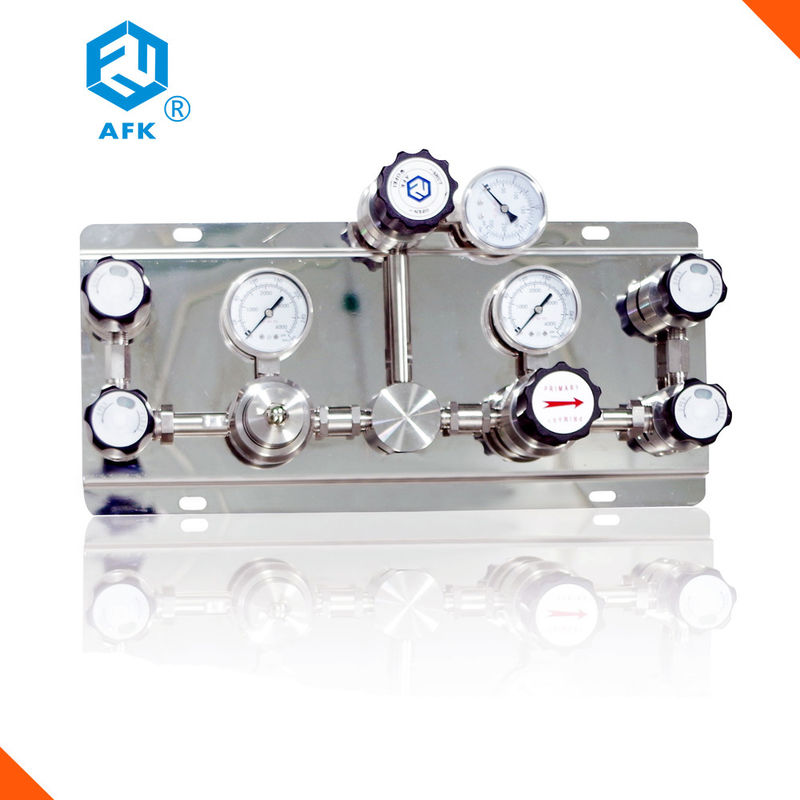

3000 Psi 316L Changeover Manifold Semi Automatic Changeover Swithing Station

  • 3000 Psi 316L Changeover Manifold Semi Automatic Changeover Swithing Station
  • 3000 Psi 316L Changeover Manifold Semi Automatic Changeover Swithing Station
  • 3000 Psi 316L Changeover Manifold Semi Automatic Changeover Swithing Station
  • 3000 Psi 316L Changeover Manifold Semi Automatic Changeover Swithing Station
Place of Origin China
Brand Name AFK
Certification RoSH
Model Number WL300
Minimum Order Quantity 1
Price Negotiable
Packaging Details Exporting Package
Delivery Time 5-7 days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 2000 pieces per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Stailess Steel Max Inlet Pressure 3000,2200 PSI
Max Outletpressure 25,50,100,150,250 Psi CV 0.14
Pressure Medium Pressure,High Pressure,Low Pressure Color Stainless Steel
High Light

gas control panel

,

pressure control panel
Leave a Message
Product Description



3000 Psi 316L Semi-Automatic Changeover Swithing Station for High Flow Rate Overview





Max Inlet Pressure: 2200, 3000 Psig



Outlet Pressure Range: 0~25, 0~50, 0~100, 0~150 , 0~250psig

Working Temperature: -40° F ~+165° F(-40°C+74°C)

Cv: 0.14

Valve Seat: PU, PTFE ,FCTFE

Body Material: 316L

BodyThread : 1/4NPT F

Body ports: 3 ports

Type: can't be adjustable

Body material: nickled plated brass


Warranty: 1 Year

Selling Units: Single Item

Single Package

Size : 36X15X26 Cm

Single Gross Weight: 7.0 Kg



Packaging & Delivery



Selling Units:
Single item
Single package size:
36X18X18 cm
Single gross weight:
7.0 kg
Package Type:
Export packing
Lead Time :
Quantity(Set) 1 - 200 >200
Est. Time(days) 10 To be negotiated


Main Features



1) Simple structure in linear type ,easy in installation and maintation.



2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.



3) High pressure double crank to control the die opening and closing.



4) Running in a high automatization and intellectualization,no pollution



5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .



ORDERING INFORMATION
WL3 1 1 1 S H 1 1 -N2
Series Function Options Outlet Connection Inlet Connection Body Material

Input

Pressure

Outlet

Pressure

 Gauge Gas Option
WL300 Series Semi-automatic Changeover Device 1.With emptying, purging distribution function 1:1/4”NPT(F) 1:1/4″Weldmg S:stainless H:3000psi 1:25psi 1:MPa Blank: None
  2.Wrthout Emptying, purging distribution function 2:1/4”Tube fitting 2:1/4”NPT(M) steel M:2200psi 2:50psi 2:Bar/psi N2:nitrogen
  3.Emptying. purging distnbuUon+pressure sensor 3:3/8”NPT(F) 3:3/8”Melding C:nickel plated L:1000psi 3:100psi 3:psi/KPa O2:oxygen
  4.With pressure sensor 4:3/8”Tube fitting 4:3/8”NPT(M) brass O: Other 4:150psi 4:Other H2:hydrogen
  5:Other 5:1/2”NPT(F) 5:1/2”Melding     5:250psi   C2H2:acetylene
    6:1/2”Tube fitting 6:1/2”NPT(M)     6:Other   CH4:methane
    7:Other 7:1/4”Tube fitting         Ar:argon
      8:3/8″Tube fitting         He:helium
      9:1/2″Tube fitting         Air:air
      10:Other

3000 Psi 316L Changeover Manifold Semi Automatic Changeover Swithing Station 0
