Product Details
Place of Origin: China
Brand Name: AFK
Certification: PCE

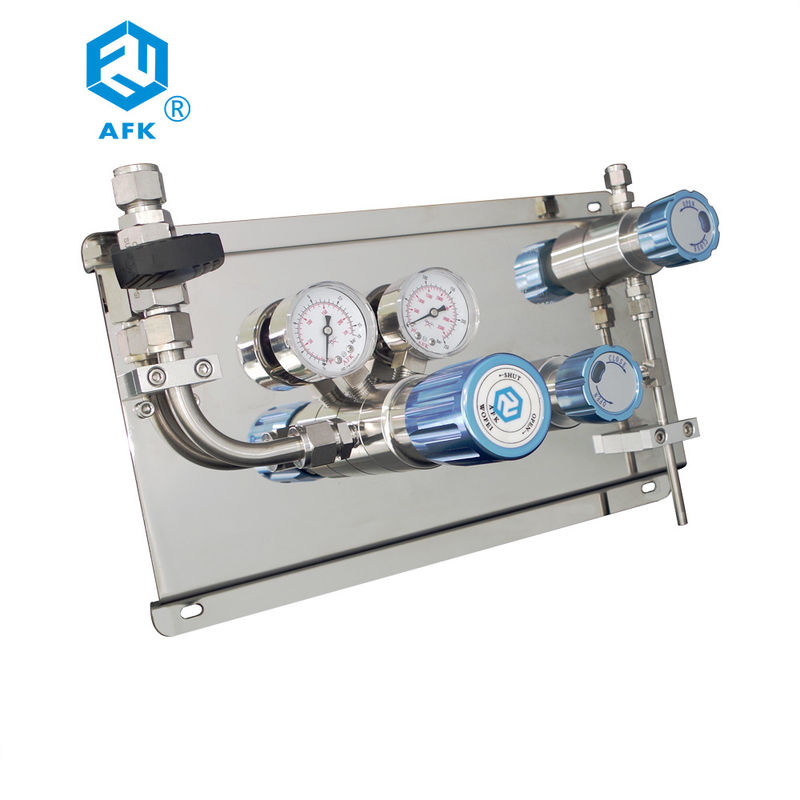

Model Number: Stainless Steel 316 Single Cylinder Gas Panel Manifold
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: WOODEN
Delivery Time: 1WEEK
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100PC
Material: |
Stainless Steel,316 |
Warranty: |
1 Year |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Condition: |
New |
Application: |
Industry Equipment |
Product Name: |
Stainless Steel Pressure Regulator |
Material: |
Stainless Steel,316 |
Warranty: |
1 Year |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Condition: |
New |
Application: |
Industry Equipment |
Product Name: |
Stainless Steel Pressure Regulator |
Feature:
Pressure Regulator for special gas
Equipped relief pressure valve
Pressure regulator and pipe through the pressure test and leakage test
2 stainless steel gauges,reading clearly
The knob of diaphragm valves “on/off” logo
Product Application
It is used in the double-sided high-pressure gas cylinder to reduce the pressure supply. It can be continuously switched on both sides to achieve continuous gas supply and purge function. The maximum input pressure can reach 20.7Mpa(3000psi), corrosion resistance, clean shop assembly test, gas analysis Such as high purity gas.
Materials of Construction
1.Body: stainless steel
2.Seat: PU, PTFE, PCTFE
3.Inlet Connection: 1/4″tube fitting, 1/4″FSR, 1/2″FSR
4.Outlet Connection: 1/4″ tube fitting , 1/4″FSR
5.Body of Diaphragm Valve: stainless steel
Specifications
1. Max. Inlet Pressure:3000, 2200 psi
2.Max. Outlet Pressure:25, 50, 100, 150, 250 psi
3.Working Temperature: -40°C ~ 74°C (-40°F ~ 165°F)
4.Flow Rate: see flow Curve Chart
5.Pressure Regulator Leakage Rate: 2 x 10-8 atm.cc/sec He
6.Cv: 0.08
Product Application
It is used in the double-sided high-pressure gas cylinder to reduce the pressure supply. It can be continuously switched on both sides to achieve continuous gas supply and purge function. The maximum input pressure can reach 20.7Mpa(3000psi), corrosion resistance, clean shop assembly test, gas analysis Such as high purity gas.
Materials of Construction
1.Body: stainless steel
2.Seat: PU, PTFE, PCTFE
3.Inlet Connection: 1/4″tube fitting, 1/4″FSR, 1/2″FSR
4.Outlet Connection: 1/4″ tube fitting , 1/4″FSR
5.Body of Diaphragm Valve: stainless steel
Specifications
1. Max. Inlet Pressure:3000, 2200 psi
2.Max. Outlet Pressure:25, 50, 100, 150, 250 psi
3.Working Temperature: -40°C ~ 74°C (-40°F ~ 165°F)
4.Flow Rate: see flow Curve Chart
5.Pressure Regulator Leakage Rate: 2 x 10-8 atm.cc/sec He
6.Cv: 0.08
| WL1 | 1 | 1 | 1 | S | H | 1 | 1 | -N2 |
| Series | Function Options | Outlet Connection | Inlet Connection | Body Material | Input Pressure | Output Pressure | Gauge | Gas Options |
| WL1 Series single side gas supply high pressure regulator system | 1.with emptying,purging distribution function | 1.1/4"NPT(F) | 1.1/4"Welding | S:stainless steel | H:3000psi | 1:25psi | 1.MPa | blank:none |
| 2.without emptying,purging distribution function | 2.1/4"tube fitting | 2.1/4"NPT(M) | C:nickel plated brass | M:2200psi | 2:50psi | 2.Bar/psi | N2:nitrogen | |
| 3.emptying,purging distribution+pressure sensor | 3.3/8"NPT(F) | 3.3/8"Welding | L:1000psi | 3:100psi | 3.psi/KPa | O2:oxygen | ||
| 4.with pressure sensor | 4.3/8"tube fitting | 4.3/8"NPT(M) | O:other | 4:150psi | 4.other | H2:hydrogen | ||
| 5.Others | 5.1/2"NPT(F) | 5.1/2"Welding | 5::250psi | C2H2:acetylene | ||||
| 6.1/2"tube fitting | 6.1/2"NPT(M) | 6:other | CH4:methane | |||||
| 7.Other | 7.1/4"tube fitting | Ar:argon | ||||||
| 8.3/8"tube fitting | He:helium | |||||||
| 9.1/2"tube fitting | Air:air | |||||||
| 10.Other |
FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
Q: How can I get your catalogue and price list?
A: Please let us know your email or contact us from website directly for our catalogue and price list;
Q: Can I negotiate the prices?
A: Yes, we may consider discounts for multiple container load of mixed goods.
Q: How much will the shipping charges be?
A: It depends on the size of your shipment and the method of shipping.
We will offer the charge to you as you requested.
