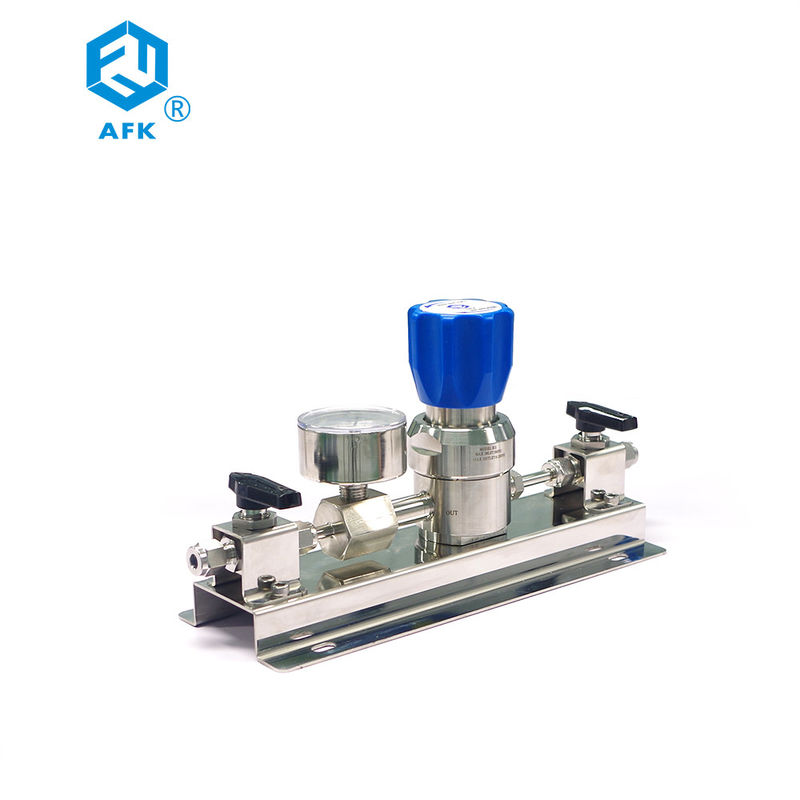

Wl400 Terminal 1/4" NPT Pressure Reducing Valve Stainless Steel PCE

  • Wl400 Terminal 1/4" NPT Pressure Reducing Valve Stainless Steel PCE
  • Wl400 Terminal 1/4" NPT Pressure Reducing Valve Stainless Steel PCE
  • Wl400 Terminal 1/4" NPT Pressure Reducing Valve Stainless Steel PCE
Place of Origin China
Brand Name AFK
Certification PCE
Model Number R11
Minimum Order Quantity 1
Price Negotiable
Packaging Details WOODEN
Delivery Time 1WEEK
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500PC

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Stainless Steel,Brass,SS304 Port Size 1/4 "
Media Gas Size 1/4" NPT
High Light

Wl400 Terminal Pressure Reducing Valve

,

1/4" NPT Pressure Reducing Valve

,

PCE Stainless Ball Valve
Leave a Message
Product Description



Product Application

It is applied to the terminal of gas pipeline, easy to use and control the gas flow. The maximum input pressure can reach 20.7mpa (3000psi), corrosion resistance, clean workshop assembly test, suitable for laboratory, gas analysis and other high-purity gas use.



Structural materials

Reducer matrix: stainless steel
Valve seat: Pu, PTFE, PCTFE
Panel air inlet connection: 1 / 4 'AFK, 1 / 4' FSR, 1 / 2 'FSR
Panel outlet connection: 1 / 4 'AFK, 1 / 4' FSR
Diaphragm valve body: stainless steel



Structural features

The valve is equipped with R11 pressure reducer and high pressure ball valve

The pressure test and leakage test are carried out for the pipeline

Wall mounted, easy to use. Safety is guaranteed

The pressure reducer and pipeline have been subjected to pressure test and leakage test

2 'stainless steel pressure gauge, read clearly



technical parameter

Maximum intake pressure: 3000,2200psi
Maximum outlet pressure: 25, 50,100,150,250psi
Working temperature: - 40 ℃ ~ 230 ℃
Flow: see flow curveLeakage
rate of pressure reducer: 2x10-8 atm.cc/sec He
Cv: 0.14



Wl400 Terminal 1/4" NPT Pressure Reducing Valve Stainless Steel PCE 0



Ordering Guide

WL4                                 2                               1                           S                           H                      5                     1                    -N2
       Series               outlet type                Inlet interface type       body          nput pressure   outlet pressure     Gauge         Gas Options
Wl4: terminal secondary pressure reducing valve assembly

1:6mm Pagoda joint

2:1/4" swagelok

3:8mm Pagoda joint

4:3/8" swagelok

5:10mm Pagoda joint

6:1/2" swagelok

7:Other

1:1/4" Welding

3:3/8" Welding

5:1/2" Welding

7:1/4" swagelok

8:3/8" swagelok

9:1/2" swagelok

10:Other

S:stainless steel

C:Barss

H:1000psi

M:500psi

L:300psi

O:Other

1:25psi

2:50psi

3:100psi

4:150psi

5:250psi

6:Other

1:Mpa

2:Bar/psi

3:psi/Kpa

4:Other

Blank: no gas mark

N2:Nitrogen

O2:oxygen

H2:hydrogen

C2H2:acetylene

CH4:methane

AR:argon

HE:helium

AIR: air



Wl400 Terminal 1/4" NPT Pressure Reducing Valve Stainless Steel PCE 1
