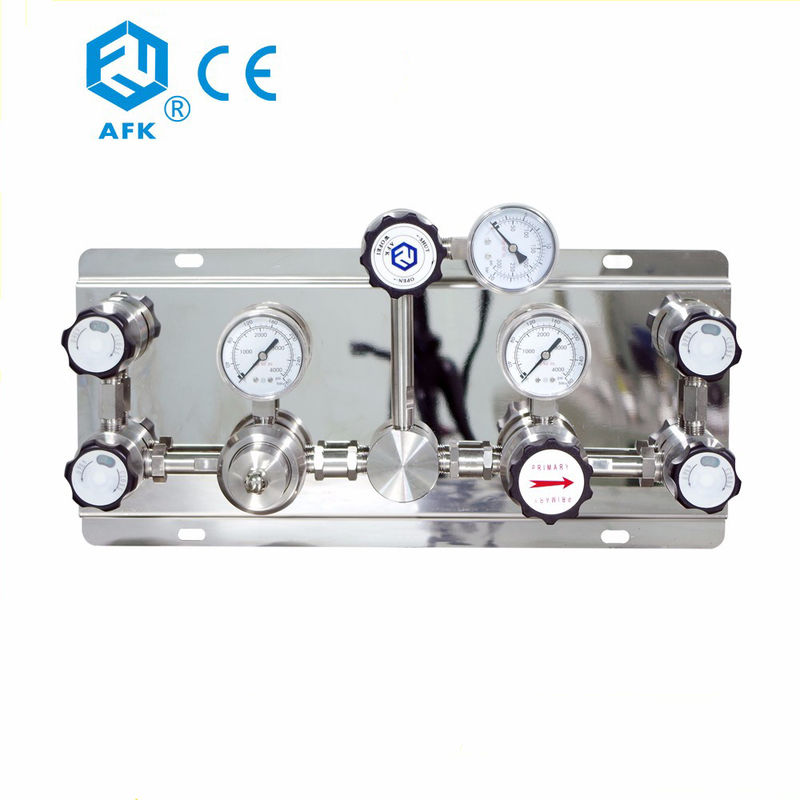

500psig Changeover Gas Panel Pressure Regulator NItrogen 200 Bar

Product Details

Place of Origin: China

Brand Name: AFK

Certification: CE

Model Number: WL300

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Expotrt Packing

Delivery Time: 1WEEK

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1000PC

Get Best Price
Contact Now
Specifications
Highlight:

Changeover Gas Panel Pressure Regulator

,

500psig Gas Panel Pressure Regulator

,

SS Pressure Regulator NItrogen

Material:
Stainless Steel,SS304/SS316L,316
Pressure:
3000, 500psig
Standard Or Nonstandard:
Standard
Output Pressure:
0~25, 0~50, 0~100, 0~250psig
Applied Gas:
High Pure Gases, Standard Gases, Corrosive Gases And So On
Warranty:
1 Year
Working Temperature:
-40~+74 Deg C
Cv:
0.14
Material:
Stainless Steel,SS304/SS316L,316
Pressure:
3000, 500psig
Standard Or Nonstandard:
Standard
Output Pressure:
0~25, 0~50, 0~100, 0~250psig
Applied Gas:
High Pure Gases, Standard Gases, Corrosive Gases And So On
Warranty:
1 Year
Working Temperature:
-40~+74 Deg C
Cv:
0.14
Description
500psig Changeover Gas Panel Pressure Regulator NItrogen 200 Bar

Product Description

It is suitable for high pressure gas cylinders and pressure relief gas supply on both sides, through the automatic changeover to realize continuous gas supply, with the function of purging.

The maximum input pressure of 20.7 Mpa (3000 psi), corrosion, clean workshop assembly test, suitable for laboratory, high purity gas such as gas analysis.







Materials of Construction Features
Body: stainless steel
Seat: PU, PTFE, PCTFE
Inlet Connection: 1/4"tube ftting, 1/4"FSR, 1/2"FSR
Outlet Connection: 1/4" tube fitting,1/4"FSR
Body of Diaphragm Valve: stainless steel

Equipped relief pressure valve

Pressure regulato and pipe through the

pressure test and leakage test

2"stainless steel pressure gauge, reading clearly

The knob of diaphragm valves with on/off logo

Spec fications
Spec fications
Max. Inlet Pressure:3000, 2200 psi
Max. Outlet Pressure:25, 50, 100, 150, 250 psi
Working Temperature: -40°C~ 74°C (-40°F ~165°F)
Flow Rate: see flow Curve Chart
Pressure Regulator Leakage Rate: 2 X 10-8
atm.cc/sec He
Cv: 0.14



500psig Changeover Gas Panel Pressure Regulator NItrogen 200 Bar 0

Ordering Information

WL300  1 1 1 S H 1 1 -N2
Series Function Options Outlet
Connection
Inlet Connection Body
Material
Input
Pressure

Outlet

Pressure

Gauge Gas
Options

WL300 Series

Semi-automatic

Changeover
Device

1Wih emptying, purging ! distribution function. 1:1/4"NPT(F) 2:14" Tube ftting 1:1/4"Welding S:stainless
steel
H:3000psi 1:25psi   Blank: None
  2.Without Emptying, purging distribution function 2:14" Tube ftting 2:14"NPT(M)   M:2200psi 2:50psi 1:MPa N2:nitrogen
  3.Emptying, purging distribution+pressure sensor 3:3/8"NPT (F ) 3:3/8"Welding C:nickel plated brass L.1000psi 3.100psi 2:Bar/psi O2:oxygen
  4.With pressure sensor 4:3/8" Tube ftting 4:3/8"NPT(M)   O: Other 4.150psi 3.psi/KPa H2:hydrogen
  5.Others 5:1/2INPT (F) 5:1/2"Welding     5:250psi 4:Other C2H2:acetylene
    6:1/2"Tube fiting 6:1/2"NPT(M)     6:Other   CH4.methane
    7:Other, 7:1/4"Tube ftting         Arargon
      8:3/8"Tube ftting         He:helium
      9:1/2"Tube fiting         Airair
      10:Other
