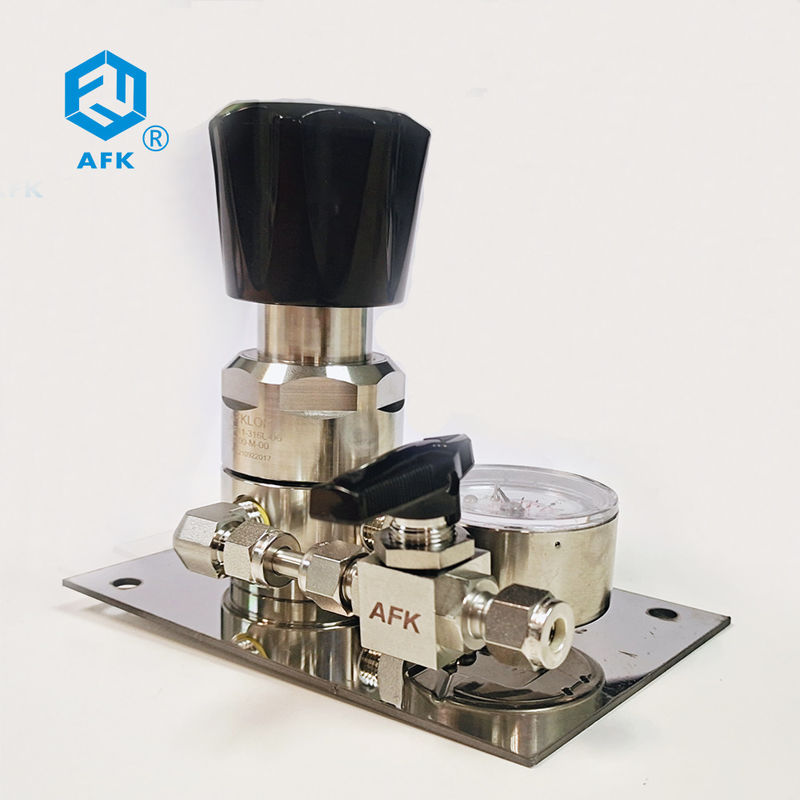

PCTFE Gas Pressure Regulator Decompression Structure R11 Reducer With Ball Valve

PCTFE Gas Pressure Regulator Decompression Structure R11 Reducer With Ball Valve

PCTFE Gas Pressure Regulator Decompression Structure R11 Reducer With Ball Valve

PCTFE Gas Pressure Regulator Decompression Structure R11 Reducer With Ball Valve

PCTFE Gas Pressure Regulator Decompression Structure R11 Reducer With Ball Valve

Product Details

Place of Origin: China

Brand Name: AFK

Certification: CE

Model Number: R11

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Expotrt Packing

Delivery Time: 10Day

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 200PC

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    PCTFE Gas Pressure Regulator, R11 Reducer Gas Pressure Regulator, Decompression Structure Stainless Steel Pressure Reducer


After-sales Service Provided:	Online Support	Material:	Stainless Steel
Warranty:	1 Year	Application:	Industry Equipment
Key Words:	Stainless Steel Pressure Regulator	CV:	0.08

After-sales Service Provided:	Online Support
Material:	Stainless Steel
Warranty:	1 Year
Application:	Industry Equipment
Key Words:	Stainless Steel Pressure Regulator
CV:	0.08

Description

PCTFE Gas Pressure Regulator Decompression Structure R11 Reducer With Ball Valve

R11 series pressure reducer, single-stage diaphragm pressure reducing structure, stainless steel diaphragm pressure transmission, stable output pressure, suitable for net gas, standard gas, corrosive gas, etc

Design features

Single stage decompression structure

The matrix and diaphragm are hard sealed

Female thread: 1/4" NPT (F)

The internal structure is easy to purge

Built in filter screen

Panel type or wall type installation can be adopted

1	matrix	316L,Brass
2	Upper cover	316L,Brass
3	diaphragm	316L
4	filter screen	316L(μm)
5	valve seat	PCTFE,PTFE,Vespel
6	Spring	316L
7	Valve core ejector rod	316L

PCTFE Gas Pressure Regulator Decompression Structure R11 Reducer With Ball Valve 0

PCTFE Gas Pressure Regulator Decompression Structure R11 Reducer With Ball Valve 1
