Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: R1100
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 20Day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200PC
After-sales Service Provided: |
Online Support |
Condition: |
New |
Material: |
Stainless Steel |
Warranty: |
1 Year |
Application: |
Industry Equipment |
Key Words: |
Stainless Steel Pressure Regulator |
CV: |
0.06 |
Maximum Inlet Pressure: |
3000psi |
Output Pressure: |
0~25, 0~50, 0~100, 0~200psig |
Working Temperature: |
-40℉~+165℉(-40℃~+74℃) |
After-sales Service Provided: |
Online Support |
Condition: |
New |
Material: |
Stainless Steel |
Warranty: |
1 Year |
Application: |
Industry Equipment |
Key Words: |
Stainless Steel Pressure Regulator |
CV: |
0.06 |
Maximum Inlet Pressure: |
3000psi |
Output Pressure: |
0~25, 0~50, 0~100, 0~200psig |
Working Temperature: |
-40℉~+165℉(-40℃~+74℃) |

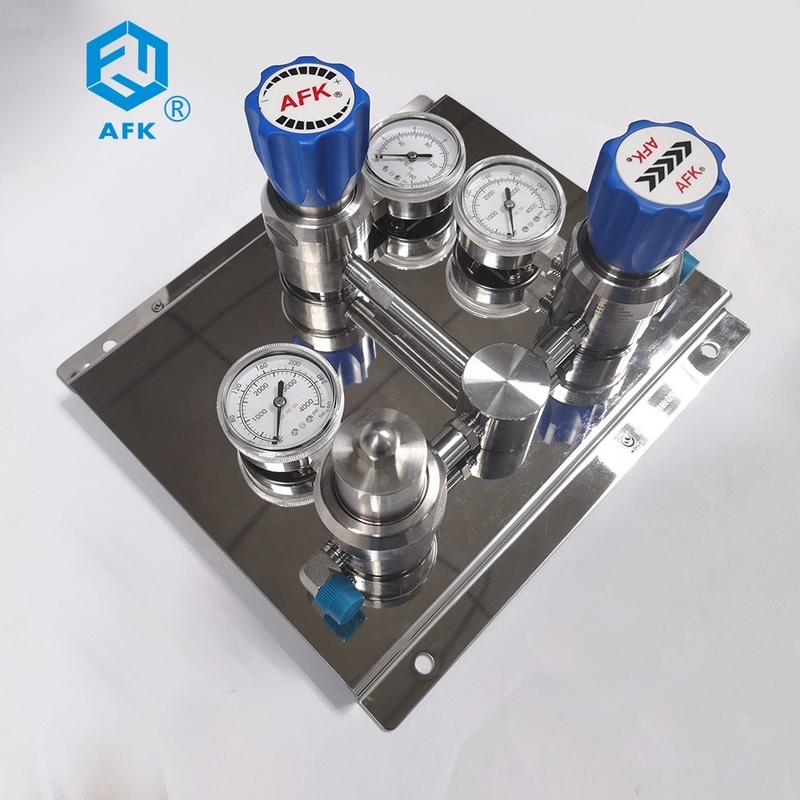

R1100 Serie semi-automatic devich device applied two pipe lines supply,that is main cylinder supply set and spare cylinder set.The device makes astable output by using secondary pressure regulator.
Design Features
Used R11 Serie Pressure reducing regulator
Metal-to-metal diaphragm seal
Inlet fitted with check valve
Wall mounting
Typical Applications
Laboreatory
Gas chromatography
Gas lasers
Specification
Maximum inlet pressure:3000psig
Output pressure:0~25,0~50,0~100,0~200psig.
Working temperature:-40℉~+165℉(-40℃~+74℃)
Cv:0.06
Material
Body:316L
Diaphragm:316L
Seat:PCTFE
Stem:316L
Weight:3.6kg
Ordering Information
| R1100 | L | 150 |
| Name Of Series | Body Material | Pressure Contol Range |
| R1100Series | L:316L | 25:0~25Psig |
| B:Brass | 50:0~50Psig | |
| 100:0~100Psig | ||
| 200:0~200Psig |
