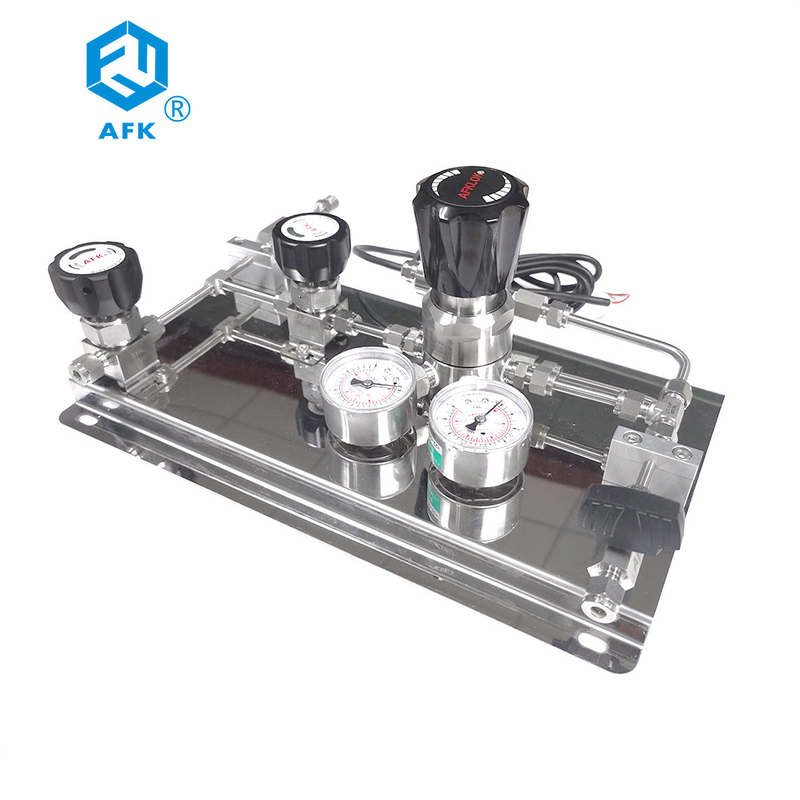

PCTFE 2200psi Stainless Steel Pressure Regulator Diaphragm Valves AFK WL100

  • PCTFE 2200psi Stainless Steel Pressure Regulator Diaphragm Valves AFK WL100
  • PCTFE 2200psi Stainless Steel Pressure Regulator Diaphragm Valves AFK WL100
  • PCTFE 2200psi Stainless Steel Pressure Regulator Diaphragm Valves AFK WL100
  • PCTFE 2200psi Stainless Steel Pressure Regulator Diaphragm Valves AFK WL100
  • PCTFE 2200psi Stainless Steel Pressure Regulator Diaphragm Valves AFK WL100
Place of Origin China
Brand Name AFK
Certification CE
Model Number WL100
Minimum Order Quantity 1
Price Negotiable
Packaging Details Expotrt Packing
Delivery Time one month
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 200PC

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Material Stainless Steel
Warranty 1 Year CV 0.14
Pressure Regulator Leakage Rate 2x10-8 Atm.cc/sec He Max.Inlet Pressure 3000,2200psi
Max.Outlet Pressure 25,50,100,150,250psi Working Temperature -40℃~74℃（-40℉~165℉）
High Light

PCTFE Stainless Steel Pressure Regulator

,

2200psi Stainless Steel Pressure Regulator

,

Diaphragm Valves Gas Pressure Regulator
Leave a Message
Product Description

It is used in high pressure gas cylinder decomression gas supply,with function Macimum input perssure up to 20.7Mpa(3000psi),corrosion protection,clen-room assembly test,suitable for laboratory,gas analysis and other high purity gas ues.



Features

Pressure regulator for special gas

Equipped relief pressure valve

Pressure regulator and pipe through the paressure test and leakage test

2"staninless steel pressure gauge,reading clearly

The knob of diaphragm valves with on/off logo

Ordering Information

WL1 1 1 1 S H 1 1 -N2
Series Function Options Outlet Connection Inlet Connection Body Material Input Pressure Output Pressure Gauge Gas Options
WL1 Series single side gas supply high pressure regulator system 1.with emptying,purging distribution function 1.1/4"NPT(F) 1.1/4"Welding S:stainless steel H:3000psi 1:25psi 1.MPa blank:none
  2.without emptying,purging distribution function 2.1/4"tube fitting 2.1/4"NPT(M) C:nickel plated brass M:2200psi 2:50psi 2.Bar/psi N2:nitrogen
  3.emptying,purging distribution+pressure sensor 3.3/8"NPT(F) 3.3/8"Welding   L:1000psi 3:100psi 3.psi/KPa O2:oxygen
  4.with pressure sensor 4.3/8"tube fitting 4.3/8"NPT(M)   O:other 4:150psi 4.other H2:hydrogen
  5.Others 5.1/2"NPT(F) 5.1/2"Welding     5::250psi   C2H2:acetylene
    6.1/2"tube fitting 6.1/2"NPT(M)     6:other   CH4:methane
    7.Other 7.1/4"tube fitting         Ar:argon
      8.3/8"tube fitting         He:helium
      9.1/2"tube fitting         Air:air
      10.Other



FAQ



Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.


Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.

Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.


Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.


Q: How can I get your catalogue and price list?

A: Please let us know your email or contact us from website directly for our catalogue and price list;


Q: Can I negotiate the prices?

A: Yes, we may consider discounts for multiple container load of mixed goods.


Q: How much will the shipping charges be?

A: It depends on the size of your shipment and the method of shipping.

We will offer the charge to you as you requested.
