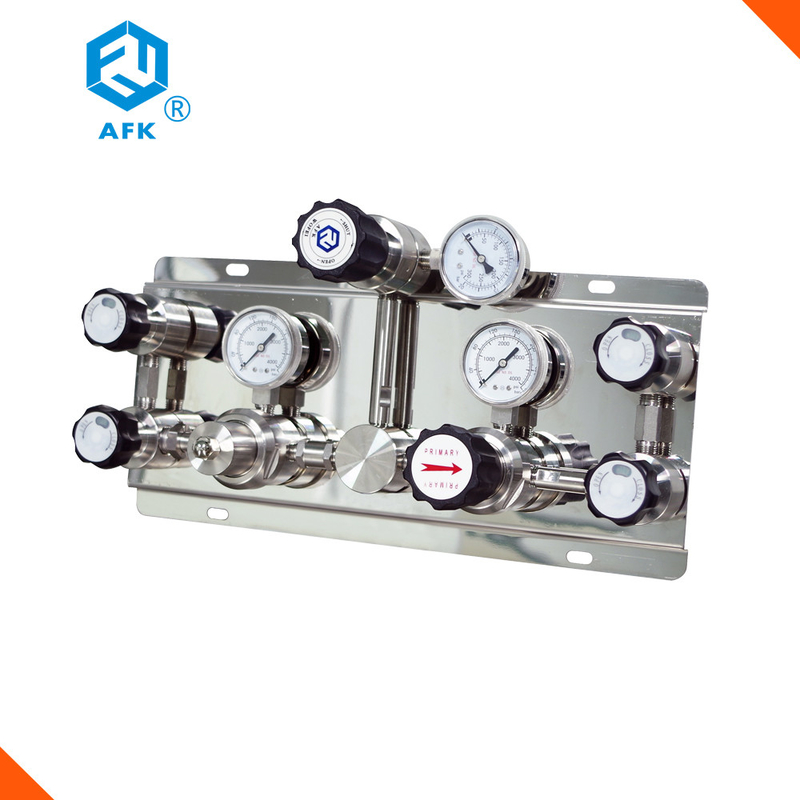

Semi Automatic Changeover Manifold AFK Stainless Steel Control Argon Gas

Semi Automatic Changeover Manifold AFK Stainless Steel Control Argon Gas
Semi Automatic Changeover Manifold AFK Stainless Steel Control Argon Gas

Large Image :  Semi Automatic Changeover Manifold AFK Stainless Steel Control Argon Gas

Product Details:
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: WL300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: WOODEN
Delivery Time: 20Day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200PC

Semi Automatic Changeover Manifold AFK Stainless Steel Control Argon Gas

Description
Material: Stainless Steel,SS316 Pressure: High Pressure
Standard Or Nonstandard: Standard Media: Gas
Color: Stainless Steel Medium: Gas
CV: 0.14 QTY: 1PCS
High Light:

Semi Automatic Changeover Manifold

,

AFK Stainless Steel Changeover Manifold

,

Argon Gas Stainless Steel Valve Regulator

It is suitable for high pressure gas cylinders and pressure relief gas supply on both sides, through the automatic changeover to realize continuous gas supply, with the function of purging.The maximum input pressure of 20.7Mpa (3000psi), corrosion, clean workshop assembly test, suitable for laboratory, high purity gas such as gas analysis.



pressure specification of semi automatic switching system
1 max. inlet pressure 3000,2200psi
2 max. inlet pressure 25,50,100,150,0~250psi
3 working temperature -40℃~74℃(~40℉~165℉)
4 leakage rate 2x10-8 atm.cc/sec He
5 Cv 0.14



design features of nitrogen/oxygen/argon pressure regulator
1 pressure regulator for special gas
2 equipped relief pressure valve
3 pressure regulator and pipe through the pressure test and leakage test
4 2" stainless steel pressure gauge,reading clearly
5 theknob of diaphragm valves with on/off logo



material of construction high pressure regulator
1 body stainless steel
2 seat PU,PTFE,PCTFE
3 inlet connection 1/4"tube fitting,1/4"FSR,1/2"FSR
4 outlet connection 1/4"tube fitting,1/4"FSR
5 body of diaphragm valve stainless steel

Semi Automatic Changeover Manifold AFK Stainless Steel Control Argon Gas 0

Semi Automatic Changeover Manifold AFK Stainless Steel Control Argon Gas 1

Semi Automatic Changeover Manifold AFK Stainless Steel Control Argon Gas 2

ORDERING INFORMATION

WL3 1 1 1 S H 1 1 -N2
Series Function Options Outlet Connection Inlet Connection Body Material

Input

Pressure

Outlet

Pressure

Gauge Gas Option
WL300 Series Semi-automatic Changeover Device 1.With emptying, purging distribution function 1:1/4”NPT(F) 1:1/4″Weldmg S:stainless H:3000psi 1:25psi 1:MPa Blank: None
  2.Wrthout Emptying, purging distribution function 2:1/4”Tube fitting 2:1/4”NPT(M) steel M:2200psi 2:50psi 2:Bar/psi N2:nitrogen
  3.Emptying. purging distnbuUon+pressure sensor 3:3/8”NPT(F) 3:3/8”Melding C:nickel plated L:1000psi 3:100psi 3:psi/KPa O2:oxygen
  4.With pressure sensor 4:3/8”Tube fitting 4:3/8”NPT(M) brass O: Other 4:150psi 4:Other H2:hydrogen
  5:Other 5:1/2”NPT(F) 5:1/2”Melding     5:250psi   C2H2:acetylene
    6:1/2”Tube fitting 6:1/2”NPT(M)     6:Other   CH4:methane
    7:Other 7:1/4”Tube fitting         Ar:argon
      8:3/8″Tube fitting         He:helium
      9:1/2″Tube fitting         Air:air
      10:Other
