Product Details:
|
| High Light: | High Pressure Nitrogen Gas Regulator,WL 400 Changeover Manifold,Two Stage Changeover Manifold |
||
|---|---|---|---|
WL400

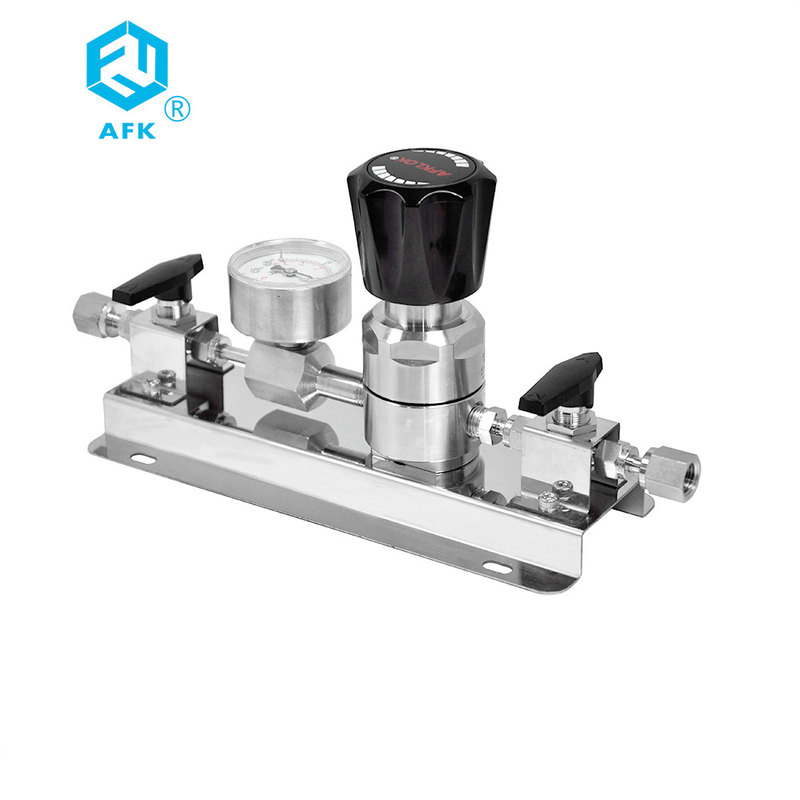

Secondary pressure reducing device assembly:Two ferrule ball valves, one R11 single meter pressure reducer, two joints and pipes, and one panel assembly
Materials of Construction
| 1 | Body | stainlees steel |
| 2 | Seat | PU,PTFE,PCTFE |
| 3 | Inlet Connection | 1/4"tube fitting,1/4FSR,1/2:FSR |
| 4 | Outlet Connection | 1/4"tube fitting,1/4"FSR |
| 5 | Body of Diaphragm Valve | stainless steel |
| Product Description | ||
| 1 | Maximum Inlet Pressure | 500,3000psig |
| 2 | Outlet Pressure | 0~25, 0~50, 0~50,0~250,0~500psig |
| 3 | Operating Temperature | -40°F to 165°F / -40°c to 74°c |
| 4 | Leakage Rate Against Atmosphere | 2*10-8atm cc/sec he |
| 5 | Cv value | 0.14 |
| Main Features | |
| 1 | Equipped R11 pressure regulator and high pressure ball valve. |
| 2 | Pipe through the pressure test and leakage test. |
| 3 | Wall installation,easy to use and safe. |
| 4 | 2″ stainless steel pressure gauge, reading clearly |
| Selection Table | |||||||
| WL4 | 2 | 1 | 5 | H | S | 1 | N2 |
| Series | Inlet connection | Outlet connection | Body | Inlet pressure | outlet pressure | Gauge | N2 |
| WL4 | 1:6mm barb fitting | 1: 1/4" welding | s: ss316 | H:1000PSI | 1:25PSI | 1:Mpa | O2 |
| 2:1/4"O.D. | 2: 3/8"welding | C:nickel plated brass | M:500psi | 2:50PSI | 2:bar/PSI | H2 | |
| 3:8mm barb fitting | 5.1/2" welding | L:300PSI | 3:100PSI | 3:PSI/kpa | C2H2 | ||
| 4:3/8"O.D. | 7: 1/4"O.D. | 4:150PSI | CH4 | ||||
| 5:10mm barb fitting | 8:3/8"O.D. | 5:250PSI | AR | ||||
| 6:1/2"O.D. | 9: 1/2"O.D. | HE | |||||
| Air | |||||||
FAQ
Q. Are you manufacturer?
A. Yes, we are manufacturer.
Q.What is lead time?
A.3-5days. 7-10 days for 100pcs
Q. How do I order?
A.You can order it from Alibaba directly or send us a inquiry. We will reply you within 24 hours
Q. Do you have any certificates?
A. We have CE certificate.
Q. What materials do you have?
A. aluminium alloy and chrome plated brass are available. The picture shown is chrome plated brass. If you need other material, pls contact us.
Q. What is maximum inlet pressure?
A.3000psi (about 206bar)
Q. How do I confirm inlet connnection for cylidner?
A. Pls check cylinder type and confirm it. Normally, it is CGA5/8 male for Chinese cylinder. Other cylidner adapter are also
available e.g CGA540, CGA870 etc.
Q. How many types for connecting cylinder?
A. Down way and side way. (you can choose it)
Q. What is product warranty?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
