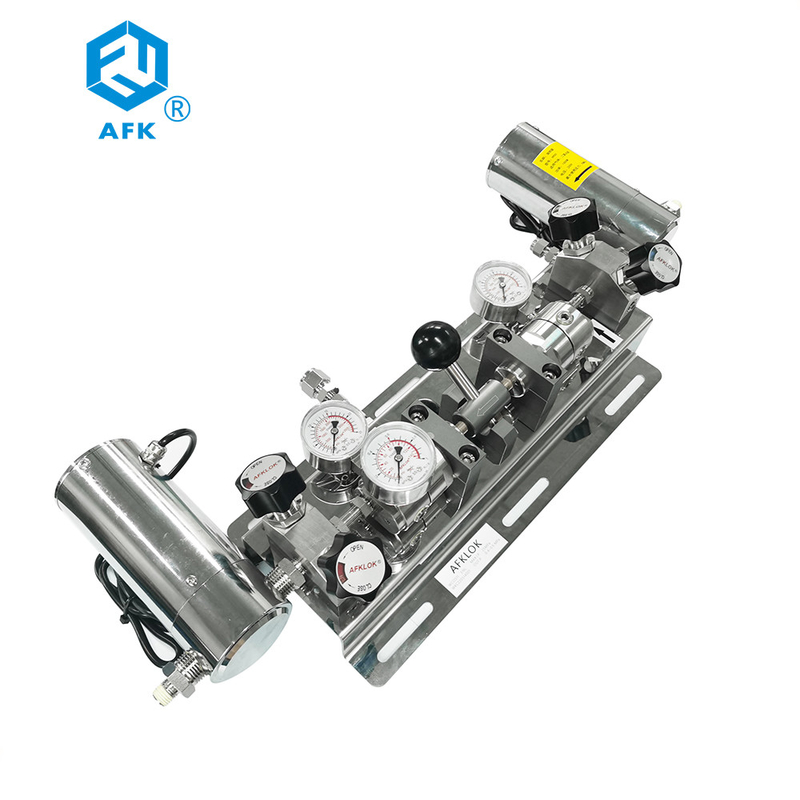

Double Side Gas Changeover Manifold Automatic Switching Heating Pressure Reducing Valve

  • Double Side Gas Changeover Manifold Automatic Switching Heating Pressure Reducing Valve
  • Double Side Gas Changeover Manifold Automatic Switching Heating Pressure Reducing Valve
  • Double Side Gas Changeover Manifold Automatic Switching Heating Pressure Reducing Valve
  • Double Side Gas Changeover Manifold Automatic Switching Heating Pressure Reducing Valve
  • Double Side Gas Changeover Manifold Automatic Switching Heating Pressure Reducing Valve
Place of Origin China
Brand Name AFK
Certification CE
Model Number WCOS11
Minimum Order Quantity 1
Price Negotiable
Packaging Details WOODEN
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000PC

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Stainless Steel Pressure Medium Pressure
Standard Or Nonstandard Standard Media Gas
Medium Gas Max Inlet Pressure 3500psi
Outlet Pressre 85~115,135~165,185~215,235~265 Cv 0.2
High Light

Double Side Gas Changeover Manifold

,

Changeover Manifold Pressure Reducing Valve

,

Automatic Switching Heating Changeover Manifold
Leave a Message
Product Description

Features


1. It is applicable to the occasion of uninterrupted gas supply. When one end is exhausted, it will automatically switch to the other end
2. With the air supply priority selection handle, you can set the priority air supply source
3. WR11 pressure reducer is used as the prototype valve, which can be used for corrosive and toxic gases
4. Wv4c diaphragm valve two-way three-way valve is adopted, with fewer links
5. Install a 20 micron filter element at the inlet
6. Oxygen environment application options are available
7. The output pressure is within a certain range and has been set at the factory



Working Principle



Double Side Gas Changeover Manifold Automatic Switching Heating Pressure Reducing Valve 0
1. Wcosr11 series switching device includes two independent pressure reducing valves. Adjust the outlet pressure on the left and right sides by operating the linkage lever, that is, when the left increases, the right decreases and the left supplies air; When the right increases, the left decreases, and the right supplies air
2. When one side of the air supply is exhausted, it will automatically switch to the other side of the air supply
3. Close the inlet diaphragm valve, open the pressure relief diaphragm valve, empty the air source on the exhausted side, and then replace with a new air source
4. The priority air supply source can be selected by turning the switch handle

Double Side Gas Changeover Manifold Automatic Switching Heating Pressure Reducing Valve 1

Double Side Gas Changeover Manifold Automatic Switching Heating Pressure Reducing Valve 2

Model selection table

6L 35 100 00 10 RC O2
body material Inlet pressure P1 Outlet pressure range P2 Inlet / outlet specifications Accessory options Cleaning process
6L SS316L  35:3500PSI 100:85-115PSIG 00:1/4"NPT F No requirement Standard (grade BA)
    150:135-165PSIG 01:1/4"NPT M P:Inlet equipped with pressure sensor C2:Oxygen cleaning
    200:185-215PSIG 10:1/4" OD R:Outlet equipped with unloading valve
    250:235-265PSIG 11:3/8" OD C:Inlet equipped with one-way valve
      HC:CGANo. with high pressure hose (USA)
      HDIN:DIN No. with high pressure hose (Germany)



FAQ



Q. Are you manufacturer?

A. Yes, we are manufacturer.



Q.What is lead time?

A.3-5days. 7-10 days for 100pcs



Q. How do I order?

A.You can order it from Alibaba directly or send us a inquiry. We will reply you within 24 hours



Q. Do you have any certificates?

A. We have CE certificate.



Q. What materials do you have?

A. aluminium alloy and chrome plated brass are available. The picture shown is chrome plated brass. If you need other material, pls contact us.



Q. What is maximum inlet pressure?

A.3000psi (about 206bar)



Q. How do I confirm inlet connnection for cylidner?

A. Pls check cylinder type and confirm it. Normally, it is CGA5/8 male for Chinese cylinder. Other cylidner adapter are also

available e.g CGA540, CGA870 etc.



Q. How many types for connecting cylinder?

A. Down way and side way. (you can choose it)



Q. What is product warranty?

A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
