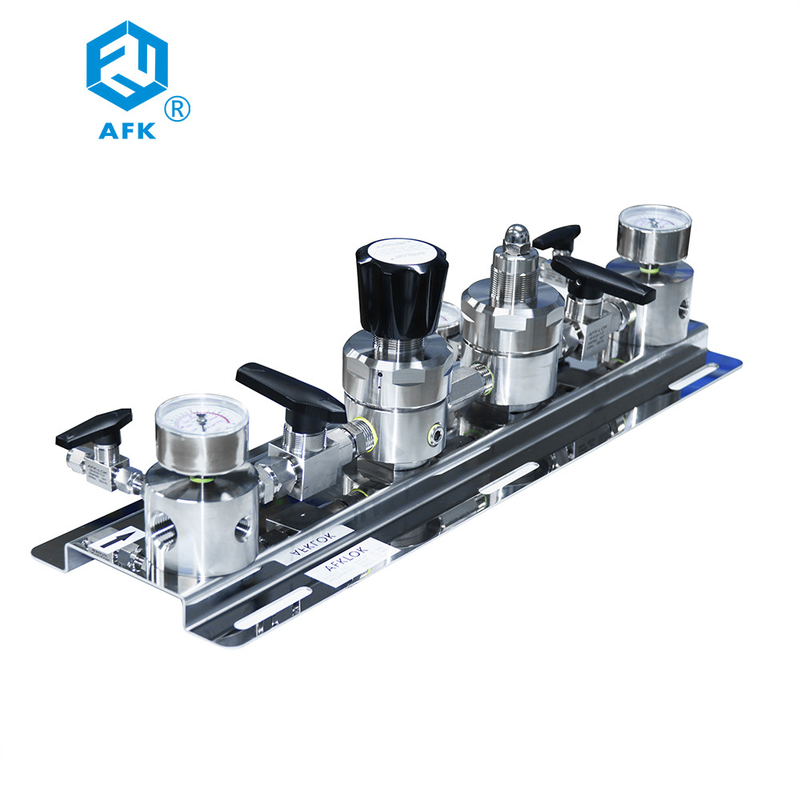

AFK Stainless Steel Changeover Manifold Semi Automatic Switching System Gas Regulator

  • AFK Stainless Steel Changeover Manifold Semi Automatic Switching System Gas Regulator
  • AFK Stainless Steel Changeover Manifold Semi Automatic Switching System Gas Regulator
  • AFK Stainless Steel Changeover Manifold Semi Automatic Switching System Gas Regulator
Place of Origin China
Brand Name AFK
Certification CE
Model Number WL300
Minimum Order Quantity 1
Price Negotiable
Packaging Details Expotrt Packing
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000PC

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Stainless Steel,SS316 Media Gas
Max.inlet Pressure 3500psi Outlet Pressure 85~115,135~165,185~215,235~235
Working Temperature -40℃~+74 ℃（-40℉~+165℉） Cv 0.2
Inlet Connection 1/4NPT Outlet Pressure 1/4NPT
Gauge Pressure 1/4 NPT
High Light

Stainless Steel Changeover Manifold

,

Switching System Changeover Manifold

,

Gas Regulator Changeover Manifold
Leave a Message
Product Description

Technical Data
1. Maximum inlet pressure: 3500psig
2. Outlet pressure range: 85~115135~165185~215235~265
3. Materials of internal components:
Valve seat: PCTFE
Diaphragm: Hastelloy
Filter element: 316L
4. Working temperature: -40 ℃ ~+74 ℃ (-40 ℉~+165 ℉)
5. Leakage rate (helium):
Inside the valve: ≤ 1x107 mbar l/s
Valve external: ≤ 1X109 mbar l/s
Connections: visible bubbles
6. Flow coefficient (CV):
Pressure reducing valve: cv=0.2
Diaphragm valve: cv=0.17
7. Parent port:
Inlet: 1/4npt
Outlet: 1/4npt
Pressure gauge port: 1/4npt



Working Principle

1. Wcosr11 series switching device includes two independent pressure reducing valves. Adjust the outlet pressure on the left and right sides by operating the linkage lever, that is, when the left increases, the right decreases and the left supplies air; When the right increases, the left decreases, and the right supplies air
2. When one side of the air supply is exhausted, it will automatically switch to the other side of the air supply
3. Close the inlet diaphragm valve, open the pressure relief diaphragm valve, empty the air source on the exhausted side, and then replace with a new air source
4. The priority air supply source can be selected by turning the switch handle

AFK Stainless Steel Changeover Manifold Semi Automatic Switching System Gas Regulator 0

Features


1. It is applicable to the occasion of uninterrupted gas supply. When one end is exhausted, it will automatically switch to the other end
2. With the air supply priority selection handle, you can set the priority air supply source
3. WR11 pressure reducer is used as the prototype valve, which can be used for corrosive and toxic gases
4. Wv4c diaphragm valve two-way three-way valve is adopted, with fewer links
5. Install a 20 micron filter element at the inlet
6. Oxygen environment application options are available
7. The output pressure is within a certain range and has been set at the factory

AFK Stainless Steel Changeover Manifold Semi Automatic Switching System Gas Regulator 1

Model selection table

6L 35 100 00 10 RC O2
body material Inlet pressure P1 Outlet pressure range P2 Inlet / outlet specifications Accessory options Cleaning process
6L SS316L 35:3500PSI 100:85-115PSIG 00:1/4"NPT F No requirement Standard (grade BA)
    150:135-165PSIG 01:1/4"NPT M P:Inlet equipped with pressure sensor C2:Oxygen cleaning
    200:185-215PSIG 10:1/4" OD R:Outlet equipped with unloading valve
    250:235-265PSIG 11:3/8" OD C:Inlet equipped with one-way valve
      HC:CGANo. with high pressure hose (USA)
      HDIN:DIN No. with high pressure hose (Germany)





FAQ



Q: Are you trading company or manufacturer?

A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.



Q: How long is your delivery time?

A: Group buying delivery time: 30-60 days; General delivery time: 20 days.



Q: What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery.



Q: What is the warranty ?

A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
