1.2MPa Automatic Gas Control Box For Nitrogen Oxygen Argon Helium Carbon Dioxide
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Temperature Of Media | Normal Temperature | Media | Gas |
|---|---|---|---|
| Outlet Pressure | ≤ 1.2MPa | Outlet Pressure Adjustment Range | 0-1.2mpa |
| Application | Laboratory, Industrial | Product Name | Automatic Gas Control Box |
| Weight | ≤20kg | ||
| High Light | CE PLC Automatic Gas Control Box,1.2MPa Automatic Gas Control Box,Argon Automatic Gas Control Box |
||
Product Description

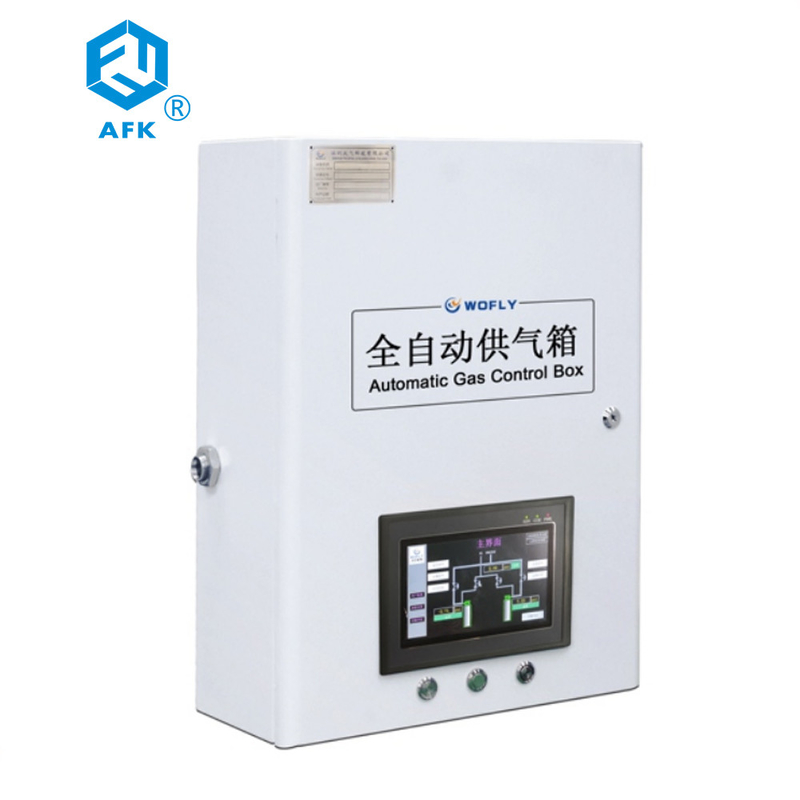

Automatic Gas Control Box
The device is designed for automatic conversion of two channels of the same gas, which can realize automatic switching, unattended, audible and visual alarm and other functions. Used for nitrogen, oxygen, argon, helium, carbon dioxide and other gases. High pressure resistance grade, automatic welding of pipes, smooth and beautiful weld junction, and selection of high-quality electrical and instrument equipment. The operation state of the two-way gas can be selected at will. PLC human-computer interaction intelligent control system.
technical parameter
Inlet pressure: ≤ 20MPa
Outlet pressure: ≤ 1.2MPa
Outlet flow: ≤ 100m ³/ H
Outlet pressure adjustment range: 0-1.2mpa
Power supply voltage: 220v.ac/50hz
Rated current: 3A
Alarm mode: audible and visual alarm (buzzer + indicator), which can be transformed into high-power audible and visual alarm equipment according to customer needs
Main control equipment: PLC + pressure transmitter
Box size: 500mm high * 400mm wide * 190mm deep
Device weight: ≤ 20kg
