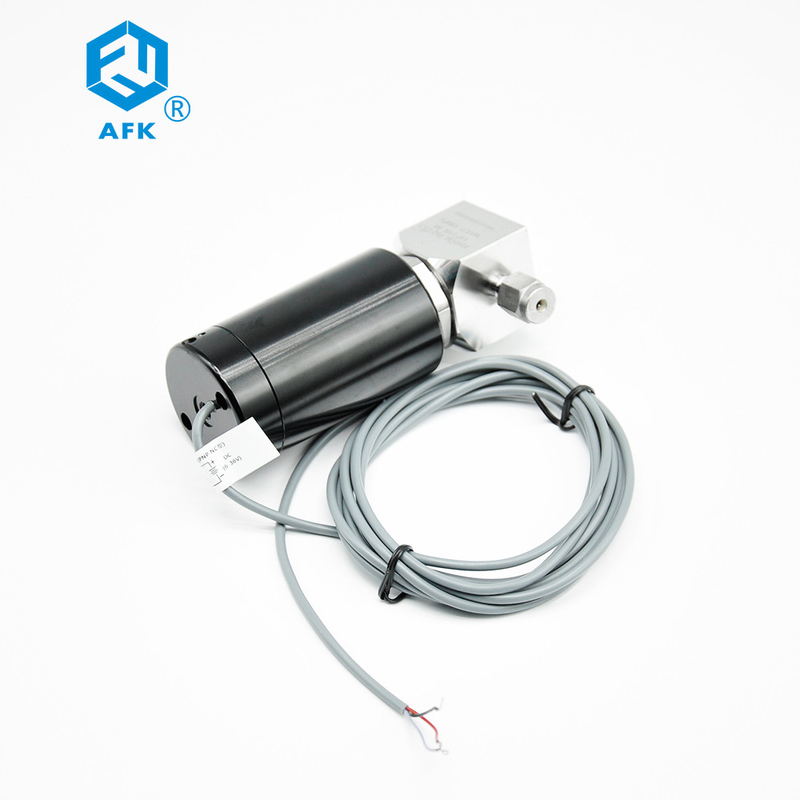

High Purity Gas Stainless Steel Pneumatic Diaphragm Valve 1/4 Inch High Pressure

Place of Origin China
Brand Name AFK
Certification CE
Model Number DV
Minimum Order Quantity 1
Price Negotiable
Packaging Details Special packaging
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000pcs

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Media Gas Material 316 Stainless Steel
Certificate ISO9001 CE Connection 1/4'NPT F
Product Name Pneumatic Diaphragm Valve Working Pressure 13MPA
MOQ 1 Pcs Port Size 1/4
High Light

High Pressure Pneumatic diaphragm valve

,

Pneumatic diaphragm valve 1/4 inch

,

Stainless Steel Pneumatic Diaphragm Valve

Leave a Message
Product Description

Features
▶The maximum working pressure can reach 31mpa
▶Fully wrapped valve seat design, with superior anti expansion and anti pollution ability
▶Nickel cobalt alloy diaphragm has higher durability and corrosion resistance▶The standard roughness is Ra0 twenty-five μ M (grade BA), or electropolishing Ra0 thirteen μ M (EP grade) optional

▶Helium test leakage rate < 1 × 10-9std cm3/s
▶Optional pneumatic actuator
▶The service life of pneumatic valve can reach 100000 times

High Purity Gas Stainless Steel Pneumatic Diaphragm Valve 1/4 Inch High Pressure 0

Technical Data
Port size 1/4"
discharge coefficient (Cv) 0.2
Maximum working pressure Manual 310 bar (4500 psig)
Pneumatic 206 bar (3000 psig)
Working pressure of pneumatic actuator 4.2~6.2 bar (60~90 psig)
working temperature PCTFE:-23~65℃(-10~150℉)
Leakage rate (helium) inside ≤1×10-9 mbar l/s
external ≤1×10-9 mbar l/s



Flow data
air@ 21℃(70℉) water @ 16℃(60℉)
Pressure drop of maximum air pressure bar (psig ) air (lmin) water (l/min)
0.68 (10) 64 2.4
3.4 (50) 170 5.4
6.8 (100) 300 7.6



Cleaning process

▶standard(WK-BA)
All welded joints shall be cleaned according to the company's standard cleaning and packaging specifications.
When ordering, there is no need to add suffix
▶Oxygen cleaning(WK-O2)
Product cleaning and packaging specifications for oxygen environment can be provided. This product meets the
requirements of astmg93c cleanliness. When ordering, please add - O2 after the order number
▶Ultra high purity(WK-EP)
Can provide controlled surface finish, electropolishing Ra0 thirteen μ m. Deionized
water ultrasonic cleaning. To order, add - EP after the order number



High Purity Gas Stainless Steel Pneumatic Diaphragm Valve 1/4 Inch High Pressure 1
Main structural materials
Serial number element texture of material
1 Handle aluminium
2 Actuator aluminium
3 Valve stem 304 SS
4 Bonnet S17400
5 Bonnet nut 316 SS
6 Button brass
7 diaphragm (5) Nickel cobalt alloy
8 valve seat PCTFE
9 valve body 316L SS



Dimensions and ordering information
Straight through type
size
Dimensions are in inches (mm) is for reference only

High Purity Gas Stainless Steel Pneumatic Diaphragm Valve 1/4 Inch High Pressure 2

Basic order number Port type and size sizein.(mm)
A B C L
WV4H-6L-TW4- 1/4" Tube -W 0.44 (11.2) 0.30 (7.6) 1.12 (28.6) 1.81 (45.9)
WV4H-6L-FR4- 1/4" FA-MCR 0.44 (11.2) 0.86 (21.8) 1.12 (28.6) 2.85 (72.3)
WV4H-6L-MR4- 1/4" MA-MCR1/4 0.44 (11.2) 0.58 (14.9) 1.12 (28.6) 2.85 (72.3)
WV4H-6L-TF4- OD 0.44 (11.2) 0.70 (17.9) 1.12 (28.6) 2.85 (72.3)



Industries involved

TFT-LCD

The process special gases used in the CVD deposition process of TFT-LCD manufacturing process are silane (S1H4), ammonia (NH3), phosphine (PH3), nitrous oxide (N2O), NF3, etc. In addition, high purity hydrogen and high purity nitrogen and other bulk gases are also involved in the process. Argon is used in the sputtering process, and the sputtered film forming gas is the main material for sputtering. First, it is required that the film-forming gas cannot react with the target, and the most appropriate gas is inert gas. A large amount of special gas will also be used in the etching process, while the electronic special gas is mostly flammable, explosive and highly toxic, so the requirements for gas circuit and technology are very high. Wofei Technology specializes in the design and installation of ultra-high purity special gas transmission system

High Purity Gas Stainless Steel Pneumatic Diaphragm Valve 1/4 Inch High Pressure 3

Special gases are mainly used in film forming and dry etching processes in LCD industry. There are many kinds of LCD, among which TFT-LCD is the most widely used LCD technology due to its fast response time, high imaging quality and gradually lower cost. The manufacturing process of TFT-LCD panel can be divided into three stages: front array, middle cell and rear module assembly. The electronic special gas is mainly used in the film forming and dry etching stages of the front array process. After multiple film forming processes, SiNx non-metallic films and metal films such as grid, source, drain and ITO are respectively deposited on the substrate.

High Purity Gas Stainless Steel Pneumatic Diaphragm Valve 1/4 Inch High Pressure 4
