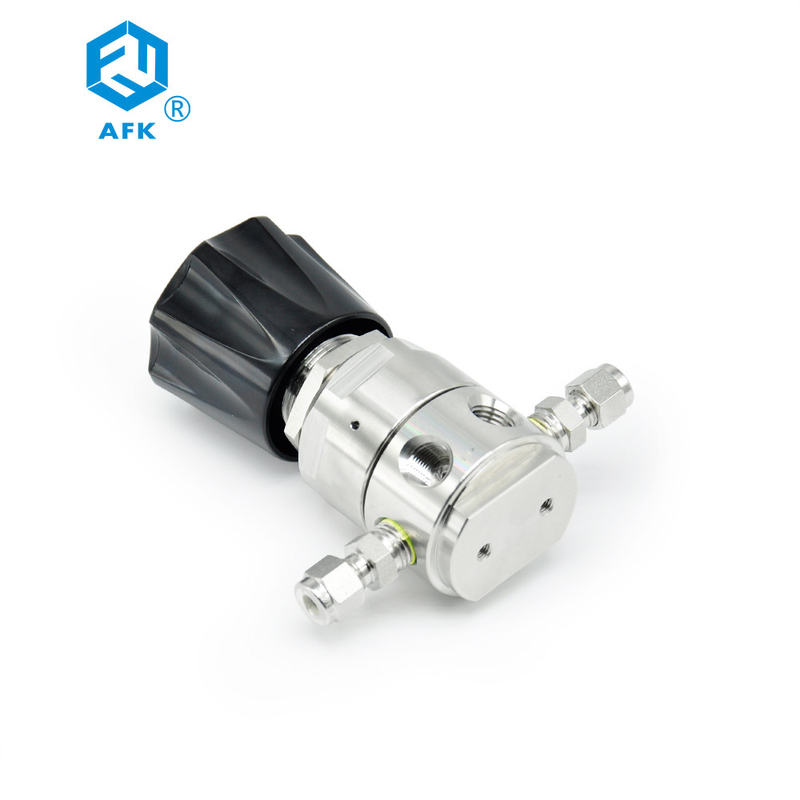

Corrugated Diaphragm Pressure Measuring Instruments Gas Pressure Regulator Valve
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| After-sales Service Provided | Online Support | Condition | New |
|---|---|---|---|
| Weight | 0.9kg | Dimension(l*w*h) | Customerized |
| Material | Stainless Steel,316 | Warranty | 1 Year |
| Application | Industry Equipment | Color | Silver |
| Product Name | Pressure Measuring Instruments Gas Pressure Regulator Valve | Max Inlet Pressure | 500,3000psi |
| Outlet Pressure | 0~25,0~50,0~100,0~250,0~500psi | CV | 0.08 CV |
| High Light | SS316 Pressure Measuring Instruments,Corrugated Diaphragm Pressure Measuring Instruments,0.08CV Gas Pressure Regulator Valve |
||
Product Description
Product Description of Pressure Measuring Instruments Gas Pressure Regulator Valve
Features of Pressure Measuring Instruments Gas Pressure Regulator Valve
Single-stage diaphragm structure
Corrugated diaphragm design for excellent
sensitivity and cycle life
Suitable for corrosive and toxic gases
20 μm filter element installed at inlet
Oxygen environment options are available
| 1 | Single-stage design | Single-stage pressure reducers are designed to reduce the pressure of high-pressure gases to a lower, more usable pressure in a single step. |
| 2 | Inlet and outlet connectors | The pressure reducer will typically include an inlet connector for connection to a high-pressure gas source and an outlet connector for connection to a low-pressure gas line. |
| 3 | Maximum inlet pressure | The maximum inlet pressure of the pressure reducer is 600psi, which means it can be used with high-pressure gas sources up to this limit. |
| 4 | Outlet pressure range | The outlet pressure range of the pressure reducer is up to 100psi, which means it can be used to regulate the pressure of gases down to this level. |
| 5 | Pressure adjustment | The pressure reducer will typically include a pressure adjustment knob or screw that allows the user to adjust the outlet pressure to the desired level. |
| 6 | High accuracy | The pressure reducer can provide a high degree of accuracy in pressure regulation, typically with a tolerance of +/- 5%. |
| 7 | Compact size | The pressure reducer is typically compact in size, making it easy to install and transport. |
| 8 | Durable construction | The pressure reducer is typically made of durable materials, such as brass or stainless steel, that can withstand high pressures and resist corrosion. |
| 9 | Safety features | The pressure reducerwill typically include safety features such as a pressure relief valve, which automatically opens if the pressure exceeds a certain level, and a pressure gauge, which allows the user to monitor the pressure levels. |
Overall, a single-stage pressure reducer with inlet and outlet connectors is a reliable and cost-effective tool for regulating the pressure of high-pressure gases down to a more usable and safe level. The compact size, high accuracy, and durable construction make it suitable for a wide range of industrial and laboratory applications where precise pressure control is required.
Specific parameters of single-stage pressure reducer inlet and outlet with connector maximum inlet pressure 600psi, outlet pressure 100psi
| 1 | Maximum inlet pressure | 600psi |
| 2 | Maximum outlet pressure | 100psi |
| 3 | Pressure adjustment range | The pressure reducer will typically include a pressure adjustment knob or screw that allows the user to adjust the outlet pressure within the range of 0-100psi. |
| 4 | Inlet and outlet connectors | The pressure reducer will typically include an inlet connector for connection to a high-pressure gas source, and an outlet connector for connection to a low-pressure gas line. The connectors are typically 1/4 inch or 3/8 inch in size. |
| 5 | Body material | The body of the pressure reducer is typically made of brass or stainless steel, which can withstand high pressures and resist corrosion. |
| 6 | Accuracy | The pressure reducer can provide a high degree of accuracy in pressure regulation, typically with a tolerance of +/- 5%. |
| 7 | Flow rate | The flow rate of the pressure reducer will depend on the specific model and size, but typical flow rates range from 5 to 100 cubic feet per hour (CFH). |
| 8 | Safety features | The pressure reducer will typically include safety features such as a pressure relief valve, which automatically opens if the pressure exceeds a certain level, and a pressure gauge, which allows the user to monitorthe pressure levels. |
| 9 | Dimensions | The dimensions of the pressure reducer will depend on the specific model and size, but typical dimensions for a compact model are around 2 inches in diameter and 3-4 inches in length. |
| 10 | Weight | The weight of the pressure reducer will depend on the specific model and size, but typical weights range from 0.5 to 1 pound. |
| 11 | Operating temperature range | The pressure reducer can typically operate within a temperature range of -20°C to 60°C (-4°F to 140°F). |
| 12 | Port configuration | The pressure reducer may have different port configurations, such as straight-through or angled, to accommodate different installation requirements. |
Specification of Pressure Measuring Instruments Gas Pressure Regulator Valve
| Technical Data of Pressure Measuring Instruments Gas Pressure Regulator Valve | ||
| 1 | Maximun Input Pressure | 500,3000 psig |
| 2 | Output Pressure Range | 0~25, 0~50, 0~100, 0~250, 0~500 psig |
| 3 | Safety Testing Pressure | 1.5 times of maximum input pressure |
| 4 | Working Temperature | -40°F~ +165°F (-40°C~ +74°C ) |
| 5 | Leakage Rate | 2×10-8 atm cc/sec He |
| 6 | CV Value | 0.08 |
| Material List of Pressure Measuring Instruments Gas Pressure Regulator Valve | ||
| 1 | Body | SS316L, brass, nickel plated brass ( Weigh :0.9kg) |
| 2 | Cover | SS316L, brass, nickel plated brass |
| 3 | Diaphragm | SS316L |
| 4 | Strainer | SS316L(10um) |
| 5 | Valve Seat | PCTFE,PTFE,Vespel |
| 6 | Spring | SS316L |
| 7 | Plunger Valve Core | SS316L |
| Ordering Information of Single-Stage Regulator | ||||||||
| R11 | L | B | D | F | G | 00 | 00 | P |
| Item |
Body Materia |
Body Hole |
Inlet pressure |
Outlet pressure |
Pressure gauge | Inlet size | Outlet size | mark |
| R11 | L:316 | A | D:3000 psi | F:0-500 psi | G:MPa gauge | 00:1/4 ” NPT (F) | 00: 1/4 ” NPT(F) | P:Panel mounting |
| B:Brass | B | E:2200 psi | G:0-250 psi | 01:1/4 ” NPT (M) | 01: 1/4 ” NPT(M) | N:Needle valve | ||
| D | F:500 psi | l:0-100 psi | P:Psig/bar gauge | 23: CGA330 | 10:1/8 ” OD | N:Needle valve | ||
| G | K:0-50 psi | 24: CGA350 | 11:1/4 ” OD | D:Diaphragm valve | ||||
| J | L:0-25 psi | W:No gauge | 28: CGA660 | 12:3/8 ” OD | ||||
| M | 28: CGA660 | 15:6mm OD | ||||||
| 30: CGA590 | 16:8mm OD | |||||||
| 52: G5/8 “-RH(F) | ||||||||
| 63: W21.8-14H(F) | ||||||||
| 64: W21.8-14LH(F) | ||||||||
Applications
The main products sold by Wofei Technology are industrial gas pressure reducers, semiconductor pressure reducers, pressure regulators, diaphragm valves, bellows valves, stainless steel valves, tube fittings, VCR fittings, stainless steel pipes, high pressure hoses, flame arrestors, check valves, precision filters, instruments, gas alarms, analytical instruments, purifiers, gas proportioners, cryogenic valves, gas supply manifolds, BSGS, GC (special gas cabinets) In order to pursue better quality and to provide customers with higher and safer technology, we strictly follow the ISO9001 standard in the management of various gas related equipment and accessories.
