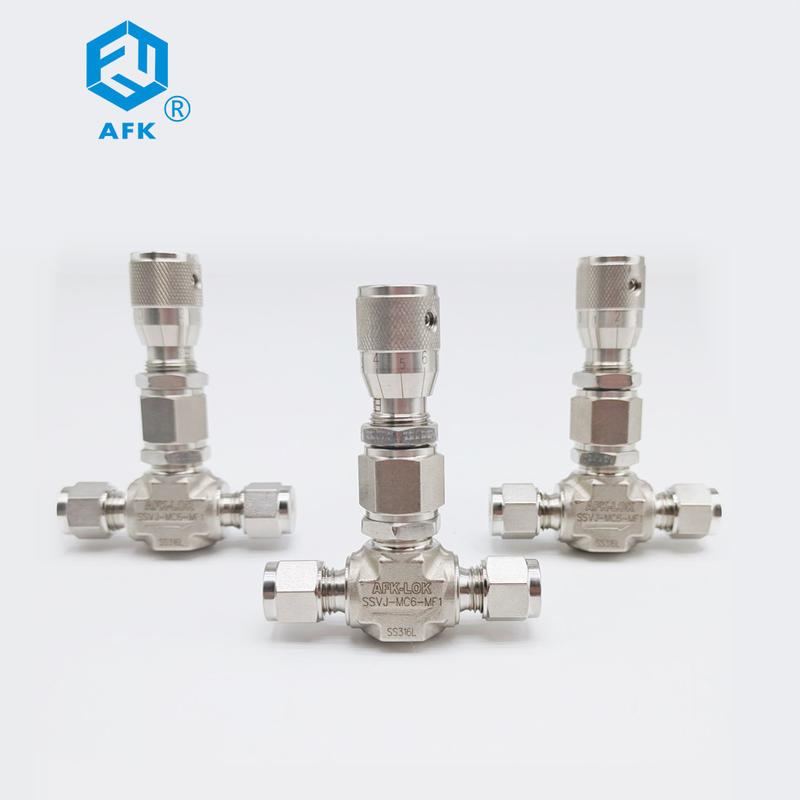

Straight Union Ss Needle Valve 6000psi 1/8in-1/2in
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xType | Straight Union | Maximum Work Pressure | Not To Exceed 6000psi |
---|---|---|---|
Connection | Ferrule | Medium | Water Oil Gas |
ValveType | Needle Valve | Application | Laboratory Instruments, Flow Measurement, Chemical Processing, Pharmaceutical Industry, Biochemical Analysis |
Temperature | -20℃- 280 ℃ | Size | 3mm~12mm,1/8in~1/2in |
High Light | 1 2 stainless steel needle valve,6000 psi needle valve,1 8 needle valve stainless |
Product Description:
Stainless Steel Needle Valve is a precision instrument designed for micro metering, flow control and measurement of liquids and gases. It is available in size from 3mm to 12mm, 1/8in to 1/2in, suitable for many different applications, such as Laboratory Instruments, Flow Measurement, Chemical Processing, Pharmaceutical Industry, Biochemical Analysis, etc. It has the features of stainless steel construction, PTFE packing, adjustable packing gland, Nitrogen gas metering needle valve, and stainless steel metering valve. Moreover, it is designed with Ferrule connection type and Straight Union type. The high precision design and superior performance makes it an ideal choice for a variety of applications.
Features:
- Product Name: Stainless Steel Needle Valve
- Size: 3mm~12mm,1/8in~1/2in
- Valve Type: Needle Valve
- Connection: Ferrule
- Temperature: -20℃- 280 ℃
- Maximum Work Pressure: Not To Exceed 6000psi
- Special Features: Nitrogen Gas Metering Needle Valve, Micro Metering Needle Valve
Features of Micro Flow Regulating Needle Valves
High Accuracy: Micro Flow Regulating Needle Valves are capable of very precise flow control, often with small flow ranges and high resolution. Fast Response: Micro flow control needle valves have a fast response time, allowing for rapid flow adjustments and stable control. Corrosion Resistant: Micro Flow Regulating Needle Valves are typically made of corrosion resistant materials and are suitable for handling a wide range of chemicals and solvents. Reliability and Durability: These valves are typically of high quality manufacture and design and are capable of stable operation for long periods of time.
Technical Parameters:
Parameter | Value |
---|---|
Material | Stainless Steel 316 |
Application | Laboratory Instruments, Flow Measurement, Chemical Processing, Pharmaceutical Industry, Biochemical Analysis |
Connection | Ferrule |
Temperature | -20℃- 280 ℃ |
Size | 3mm~12mm,1/8in~1/2in |
Medium | Water Oil Gas |
Maximum Work Pressure | Not To Exceed 6000psi |
ValveType | Needle Valve |
Type | Straight Union |
serial number | component | Material Grade/ASTM Specification | |||
SS316 | Alloy 400 | SS304 | Alloy C-276 | ||
1 | handwheel | SS304/AL | |||
2 | Set Screws | SS304 | |||
3 | Lock Screws |
SS316/A479 SS316/A182 |
Alloy 400/B164 B127/B564 | SS316/A479 SS316/A182 |
Alloys C-276/B564 |
4 | Combination Spacer | PEEK/PCTFE/PTFE/PPL | |||
5 | Spacer | SS316/A479 SS316/A182 |
Alloy 400/B164 B127/B564 | SS316/A479 SS316/A182 |
Alloys C-276/B564 |
6 | Gasket | PEEK/PCTFE | |||
7 | Seat | SS316/A479 SS316/A182 |
Alloy 400/B164 B127/B564 | SS316/A479 SS316/A182 |
Alloys C-276/B564 |
8 | Valve body | SS316/A479 SS316/A182 |
Alloy 400/B164 B127/B564 | SS316/A479 SS316/A182 |
Alloys C-276/B564 |
9 | Stem | SS316/A479 SS316/A182 |
Alloy 400/B164 B127/B564 | SS316/A479 SS316/A182 |
Alloys C-276/B564 |
10 | Bonnet | SS316/A479 SS316/A182 |
Alloy 400/B164 B127/B564 | SS316/A479 SS316/A182 |
Alloys C-276/B564 |
11 | Lock nut | SS316/A479 SS316/A182 |
Alloy 400/B164 B127/B564 | SS316/A479 SS316/A182 |
Alloys C-276/B564 |
12 | Ferrule | SS316/A479 SS316/A182 |
Alloy 400/B164 B127/B564 | SS316/A479 SS316/A182 |
Alloys C-276/B564 |
13 | Nut | SS316/A479 SS316/A182 |
Alloy 400/B164 B127/B564 | SS316/A479 SS316/A182 |
Alloys C-276/B564 |
Applications:
AFKLOK's SSVJ Stainless Steel Needle Valve is a nitrogen gas metering needle valve for micro metering, specially designed for laboratory instruments, flow measurement, chemical processing, pharmaceutical industry, and biochemical analysis. It is manufactured from stainless steel 316 for durability and strength, and has a connection type of ferrule. It has a temperature range of -20℃- 280 ℃, and is available in sizes from 3mm to 12mm, or 1/8in to 1/2in. It has a minimum order quantity of 1PCS, and is offered at a negotiable price. Packaging is specialized for safe delivery, with delivery time of 5~10 days, and payment terms of L/C, D/A, D/P, T/T, Western Union, MoneyGram. The supply ability of this product is 5000.
Customization:
Stainless Steel Needle Valve
Brand Name: AFKLOK
Model Number: SSVJ
Place of Origin: China Guangdong
Certification: CE
Minimum Order Quantity: 1PCS
Price: negotiable
Packaging Details: Specialized Packaging
Delivery Time: 5~10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000
valveType: Needle Valve
temperature: -20℃- 280 ℃
size: 3mm~12mm,1/8in~1/2in
Type: Straight Union
application: Laboratory Instruments, Flow Measurement, Chemical Processing, Pharmaceutical Industry, Biochemical Analysis
Features: Micro Metering Needle Valve, Nitrogen Gas Metering Needle Valve.
Packing and Shipping:
Stainless Steel Needle Valve is packaged in a standard cardboard box for protection and safe delivery. The box is then placed in an outer box for further protection. All shipments are sent via a reputable courier service.
FAQ:
- Q: What is the brand name of this stainless steel needle valve?
A: The brand name of this stainless steel needle valve is AFKLOK. - Q: What is the model number of this stainless steel needle valve?
A: The model number of this stainless steel needle valve is SSVJ. - Q: Where is this stainless steel needle valve made?
A: This stainless steel needle valve is made in China Guangdong. - Q: What kind of certification does this stainless steel needle valve have?
A: This stainless steel needle valve has a CE certification. - Q: How many pieces of this stainless steel needle valve can be purchased at minimum?
A: This stainless steel needle valve can be purchased at a minimum order quantity of 1PCS.
