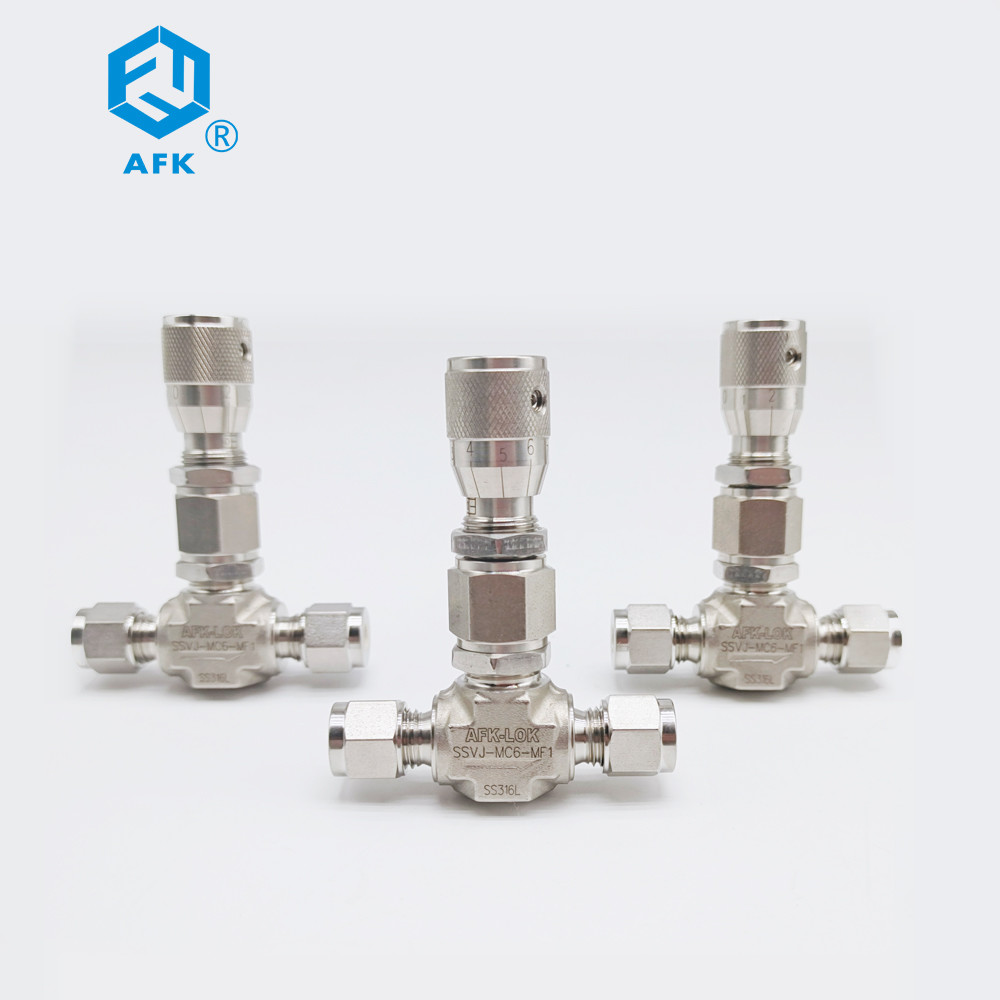

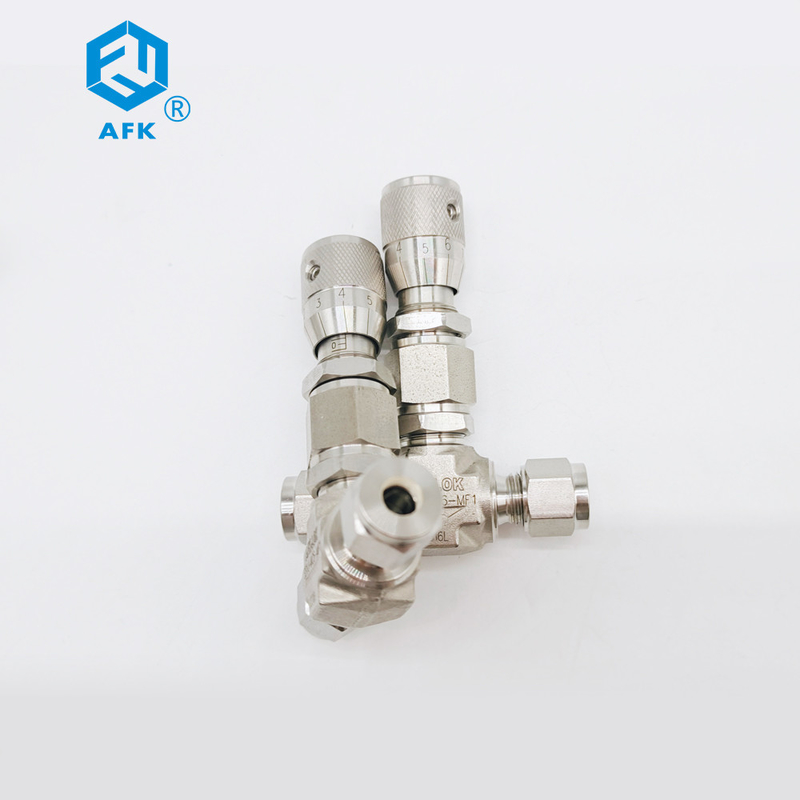

Industrial Grade 1 2 Ss Needle Valve Ferrule Connection
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Maximum Work Pressure | Not To Exceed 6000psi | ValveType | Needle Valve |
|---|---|---|---|
| Size | 3mm~12mm，1/8in~1/2in | Material | Stainless Steel 316 |
| Connection | Ferrule | Medium | Water Oil Gas |
| Application | Laboratory Instruments, Flow Measurement, Chemical Processing, Pharmaceutical Industry, Biochemical Analysis | Temperature | -20℃- 280 ℃ |
| High Light | industrial grade 1 2 ss needle valve,ferrule connection 1 2 ss needle valve,1 2 inch stainless needle valve |
||
Product Description
Product Description:
Stainless Steel Needle Valve is widely used in Laboratory Instruments, Flow Measurement, Chemical Processing, Pharmaceutical Industry, Biochemical Analysis and other applications. It is a type of gas metering valve, micro metering needle valve and precision needle valve. It is available in sizes ranging from 3mm to 12mm, 1/8in to 1/2in. The maximum work pressure for this valve is Not To Exceed 6000psi and it has a Ferrule connection. It is highly accurate and reliable and is perfect for applications that require precise control of flow.
Features:
- Product Name: Stainless Steel Needle Valve
- Size: 3mm~12mm,1/8in~1/2in
- Type: Straight Union
- Application: Metering Valve, Stainless Steel Metering Valve, Laboratory Instruments, Flow Measurement, Chemical Processing, Pharmaceutical Industry, Biochemical Analysis
- Maximum work pressure: Not To Exceed 6000psi
- Temperature: -20℃- 280 ℃
Technical Parameters:
| Parameter | Value |
|---|---|
| Connection | Ferrule |
| Size | 3mm~12mm, 1/8in~1/2in |
| Temperature | -20℃- 280 ℃ |
| Maximum work pressure | Not To Exceed 6000psi |
| Valve Type | Needle Valve |
| Application | Laboratory Instruments, Flow Measurement, Chemical Processing, Pharmaceutical Industry, Biochemical Analysis |
| Material | Stainless Steel 316 |
| Medium | Water Oil Gas |
| Type | Straight Union |
| serial number | component | Material Grade/ASTM Specification | |||
| SS316 | Alloy 400 | SS304 | Alloy C-276 | ||
| 1 | handwheel | SS304/AL | |||
| 2 | Set Screws | SS304 | |||
| 3 | Lock Screws |
SS316/A479 SS316/A182 |
Alloy 400/B164 B127/B564 | SS316/A479 SS316/A182 |
Alloys C-276/B564 |
| 4 | Combination Spacer | PEEK/PCTFE/PTFE/PPL | |||
| 5 | Spacer | SS316/A479 SS316/A182 |
Alloy 400/B164 B127/B564 | SS316/A479 SS316/A182 |
Alloys C-276/B564 |
| 6 | Gasket | PEEK/PCTFE | |||
| 7 | Seat | SS316/A479 SS316/A182 |
Alloy 400/B164 B127/B564 | SS316/A479 SS316/A182 |
Alloys C-276/B564 |
| 8 | Valve body | SS316/A479 SS316/A182 |
Alloy 400/B164 B127/B564 | SS316/A479 SS316/A182 |
Alloys C-276/B564 |
| 9 | Stem | SS316/A479 SS316/A182 |
Alloy 400/B164 B127/B564 | SS316/A479 SS316/A182 |
Alloys C-276/B564 |
| 10 | Bonnet | SS316/A479 SS316/A182 |
Alloy 400/B164 B127/B564 | SS316/A479 SS316/A182 |
Alloys C-276/B564 |
| 11 | Lock nut | SS316/A479 SS316/A182 |
Alloy 400/B164 B127/B564 | SS316/A479 SS316/A182 |
Alloys C-276/B564 |
| 12 | Ferrule | SS316/A479 SS316/A182 |
Alloy 400/B164 B127/B564 | SS316/A479 SS316/A182 |
Alloys C-276/B564 |
| 13 | Nut | SS316/A479 SS316/A182 |
Alloy 400/B164 B127/B564 | SS316/A479 SS316/A182 |
Alloys C-276/B564 |
| Type | Port Connection Types and Specifications | Dimensions, in(mm) | |||||
| inlet | outlet | A | B | C | D | E | |
| SSVJ-FC2- | 1/8”GITO | 1/8”GITO |
Off 2.56(65) On 2.87(73) |
2.28(58) | 0.71(18) | 1.1(28) | 0.55(14) |
| SSVJ-MC3- | 3mm GITO | 3mm GITO | |||||
| SSVJ-FC4- | 1/4”GITO | 1/4”GITO | 2.3(60) | ||||
| SSVJ-MC6- | 6mm GITO | 6mm GITO | |||||
| SSVJ-MC8- | 8mm GITO | 8mm GITO | |||||
| SSVJ-FC6- | 3/8”GITO | 3/8”GITO | 2.51(64) | ||||
| SSVJ-MC10- | 10mm GITO | 10mm GITO | |||||
| SSVJ-FC8- | 1/2”GITO | 1/2”GITO | 2.68(68) | ||||
| SSVJ-MC12- | 12mm GITO | 12mm GITO | |||||
| SSVJ-FN2- | 1/8NPT F | 1/8NPT F | 2.13(50) | ||||
| SSVJ-MN2- | 1/8NPT F | 1/8NPT F | |||||
| SSVJ-FN4- | 1/4NPT F | 1/4NPT F | 1.97(54) | ||||
| SSVJ-MN4- | 1/4NPT F | 1/4NPT F | |||||
| SSVJ-FN6- | 3/8NPT F | 3/8NPT F | 2.36(60) | ||||
| SSVJ-MN6- | 3/8NPT F | 3/8NPT F | |||||
Applications:
The AFKLOK SSVJ stainless steel needle valve is designed for extreme durability and performance. It is certified CE by the manufacturer and has a minimum order quantity of 1PCS. The price is negotiable and it comes with specialized packaging for safe delivery. Delivery time is usually within 5-10 days and payment options include L/C, D/A, D/P, T/T, Western Union and MoneyGram. The manufacturer has a supply capability of up to 5000 pieces.
The stainless steel needle valve is ideal for applications such as laboratory instruments, flow measurement, chemical processing, pharmaceutical industry, and biochemical analysis. It is a needle type valve with a temperature resistant range of -20°C to 280°C and made out of stainless steel 316. It is a straight union valve and is particularly useful for applications such as gas metering, nitrogen gas metering, and stainless steel micro metering.
Customization:
We provide custom services for Stainless Steel Needle Valve with the following features:
- Brand Name: AFKLOK
- Model Number: SSVJ
- Place of Origin: China Guangdong
- Certification: CE
- Minimum Order Quantity: 1PCS
- Price: Negotiable
- Packaging Details: Specialized Packaging
- Delivery Time: 5~10 days
- Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
- Supply Ability: 5000
- Material: Stainless Steel 316
- Medium: Water Oil Gas
- Type: Straight Union
- Temperature: -20℃- 280 ℃
- Maximum Work Pressure: Not To Exceed 6000psi
Our Stainless Steel Needle Valve is perfect for micro metering and offers superior performance, accuracy, and durability.
Packing and Shipping:
Packaging and Shipping
Stainless Steel Needle Valve is shipped in a protective box with cushioning material to prevent any damage during transit. The box will be marked with the product name, quantity, and weight to ensure safe and accurate delivery.
FAQ:
Q1: What is the brand name of Stainless Steel Needle Valve?
A1: The brand name of Stainless Steel Needle Valve is AFKLOK.
Q2: What is the model number of Stainless Steel Needle Valve?
A2: The model number of Stainless Steel Needle Valve is SSVJ.
Q3: Where is the origin of Stainless Steel Needle Valve?
A3: Stainless Steel Needle Valve is from China Guangdong.
Q4: What is the minimum order quantity of Stainless Steel Needle Valve?
A4: The minimum order quantity of Stainless Steel Needle Valve is 1PCS.
Q5: What is the payment terms for Stainless Steel Needle Valve?
A5: The payment terms for Stainless Steel Needle Valve are L/C, D/A, D/P, T/T, Western Union, MoneyGram.
