Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Certification: CE

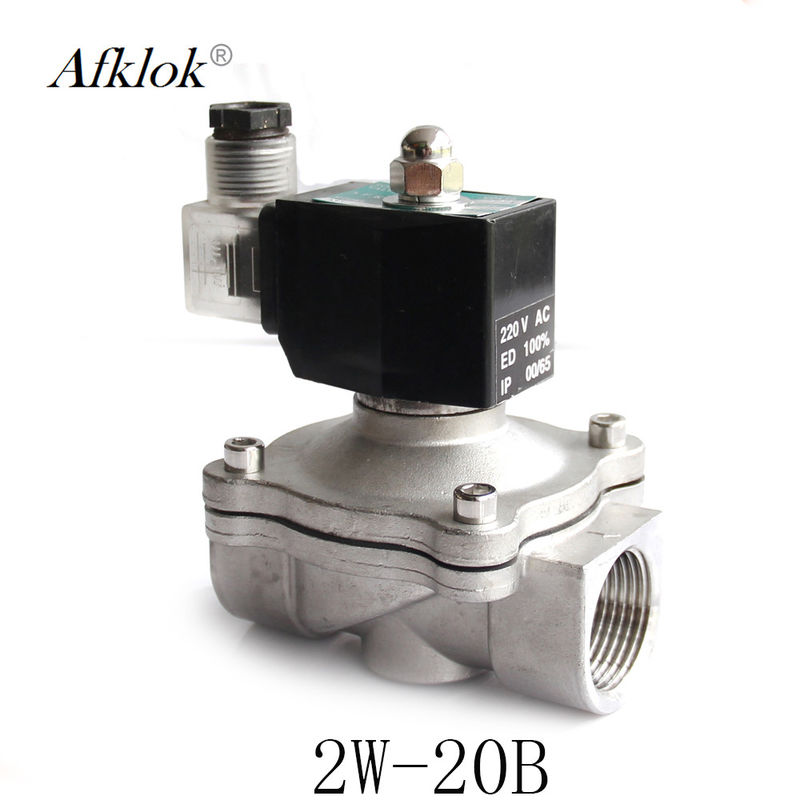

Model Number: 2W-20B
Payment & Shipping Terms
Minimum Order Quantity: 1 - 9 Sets
Price: Negotiable
Packaging Details: White box + Export packing
Supply Ability: 30000 Set/Sets per Week
Material: |
Stainless Steel |
Orifice Size: |
20 Mm |
Medium: |
Water Oil Gas |
Working Pressure: |
(water, Air ): 0-10bar, (Oil): 0-7bar |
Type: |
Normally Closed |
Seal: |
NBR VITON EPDM |
Material: |
Stainless Steel |
Orifice Size: |
20 Mm |
Medium: |
Water Oil Gas |
Working Pressure: |
(water, Air ): 0-10bar, (Oil): 0-7bar |
Type: |
Normally Closed |
Seal: |
NBR VITON EPDM |
|
Model NO.
|
2W-200-20
|
2W-250-25
|
2W-320-32
|
2W-400-40
|
2W-500-50
|
|
Pipe size
|
3/4'
|
1'
|
1 1/4‘’
|
1 1/2‘’
|
2‘’
|
|
Orifice size
|
20mm
|
25mm
|
32mm
|
40mm
|
50mm
|
|
CV value
|
7.6
|
12
|
24
|
29
|
48
|
|
Fluid
|
Air water oil, the neutral gasliquid
|
||||
|
Servise voltage
|
AC380V AC220V AC110V AC24V DC24V DV12V ( allow ± 10%)
|
||||
|
Operating
|
Type
|
Normally Closed
|
|||
|
Body Material
|
viscosity
|
( Below )20CST
|
|||
|
Working pressure
|
( water, air ) :0~10 kgf/cm² ( oil ) : 0~7 kgf/m²
|
||||
|
Material of seal
|
Standard : below 80℃ fluid temperature use NBR, below 120℃ use EPDM, below 150℃ use VITON
|
||||
|
Packaging
|
|
|
Size
|
17cm*17cm*17cm
|
|
Weight
|
Different size has different weight
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). Or according to customers special request.
|
