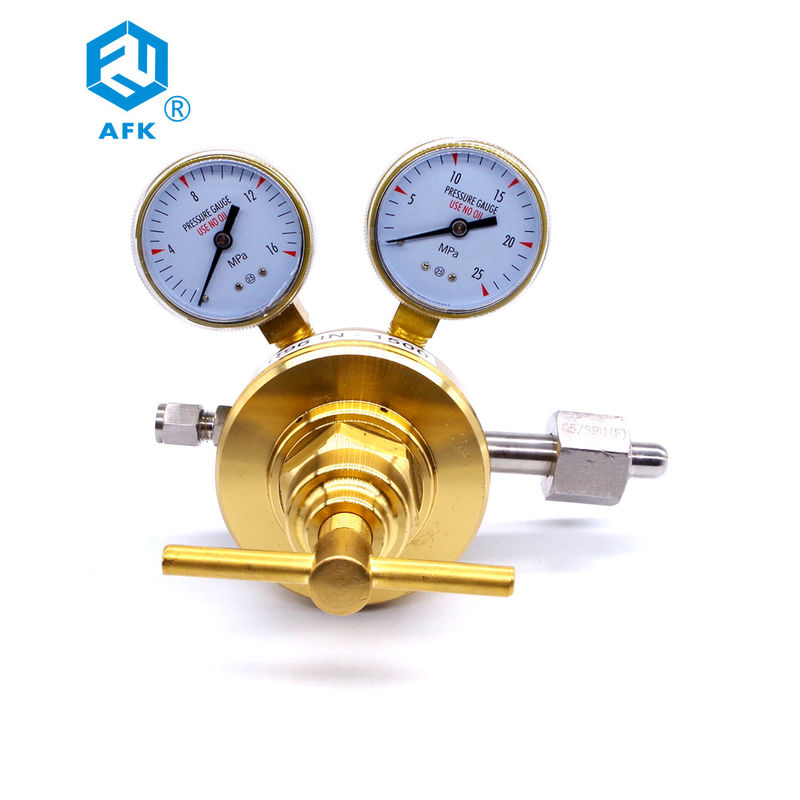

High Flow High Pressure 5000PSI Piston Oxygen Argon Nitrogen Helium Hydrogen Air Gas pressure regulator

  • High Flow High Pressure 5000PSI Piston Oxygen Argon Nitrogen Helium Hydrogen Air Gas pressure regulator
  • High Flow High Pressure 5000PSI Piston Oxygen Argon Nitrogen Helium Hydrogen Air Gas pressure regulator
  • High Flow High Pressure 5000PSI Piston Oxygen Argon Nitrogen Helium Hydrogen Air Gas pressure regulator
  • High Flow High Pressure 5000PSI Piston Oxygen Argon Nitrogen Helium Hydrogen Air Gas pressure regulator
  • High Flow High Pressure 5000PSI Piston Oxygen Argon Nitrogen Helium Hydrogen Air Gas pressure regulator
Place of Origin Guangdong, China (Mainland)
Brand Name AFK
Certification CE
Model Number R96
Minimum Order Quantity 10 - 49 Pieces
Price Negotiable
Packaging Details PP box+ gift box+ export carton
Supply Ability 5000 Piece/Pieces per Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Structure Single Stage Max.inlet Pressure 35Mpa, 20Mpa
Gauge One Body Material Brass
Medium O2, Ar, N2, He, Air, H2 Certificate CE,ISO
Product Name Single Stage Pressure Regulator Body Ports 1/4NPT F
Application Lab, GC Etc Warranty 1 Year
Port Yantian
High Light

brass air regulator

,

plumbing pressure reducer
Leave a Message
Product Description

R96 Series piston pressure regulator, output stability, high flow, safe and reliable, designed for high outlet pressure.It's applied for manual manufacturing and laboratory etc

Features of Structure
Piston pressure reducing pressure structure
Superity forged brass
2-1/2”pressure gauge
CE:EN334:2005+A1:2009
Standard:UL
Material
Body
Brass
Bonnet
Brass
Diaphragm
Neoprene
Stainer
Bronze
Application
Non-corrosive gas
Purge System
Laboratory test
Industrial Manufacture



Product Selection

Model Application Gas Max.Inlet Pressure(MPa) Outlet Pressure(MPa) Inlet Gauge(Mpa) Outlet Gauge(Mpa) Inlet thread Outlet thread
R96X-750 oxygen 20 0.35~5 25 10 G5/8"-RH(F) ∮6/ Ferrule joint
R96X-1500 20 0.7~10 25 16 G5/8"-RH(F) ∮6/ Ferrule joint
R96X-3000 20 1.4~20 25 25 G5/8"-RH(F) ∮6/ Ferrule joint
R96X-3000-577 25 1.4~20 40 40 CGA577 ∮6/ Ferrule joint
R96X-3000-701 35 1.4~20 40 40 CGA701 ∮6/ Ferrule joint
R96IN-1500 Argon, helium, nitrogen 20 0.07~10 25 16 G5/8"-RH(F) ∮6/ Ferrule joint
R96IN-3000 20 1.4~20 25 25 G5/8"-RH(F) ∮6/ Ferrule joint
R96IN-3000-677 35 1.4~20 40 40 CGA677 ∮6/ Ferrule joint
R96Q-1500 air 20 0.35~5 25 10 G5/8"-RH(F) ∮6/ Ferrule joint
R96Q-3000 20 0.7~10 25 16 G5/8"-RH(F) ∮6/ Ferrule joint
R96Q-3000-680 20 1.4~20 25 25 CGA680 ∮6/ Ferrule joint
R96H-750 hydrogen 20 0.35~5 25 10 W21.8-14LH ∮6/ Ferrule joint
R96H-1500 20 0.7~10 25 16 W21.8-14LH ∮6/ Ferrule joint
R96H-3000 20 1.4~20 25 25 W21.8-14LH ∮6/ Ferrule joint

RFQ

1.How to Select Model?

Pls see the ordering information and confirm whether the model is suitable.



2.How can get the correct product?

Pls inform specify the following information when you send inquiry to us:

1. What media is used for? e.g. o2 or?

2. How much is inlet pressure? e.g. 3000PSI or ?

3. How much is outlet pressure? e.g. 500PSI or?

4. How much is inlet connection? 1/4NPT or?

5.How much is outlet connection? 1/4NPT or?

6.How much is flow rate? 10m³/min or?



3. Are you manufacturer? Do you have any certificates?

 Yes, we are manufacturer. CE, ISO certificates are available.



4.What is your lead time? Can I get a sample to test?

1-3days for sample. 10-15days for 100-500pcs.

Yes, you can buy a sample to test quality.



5.What is your product warranty?

1 year
