Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Certification: CE

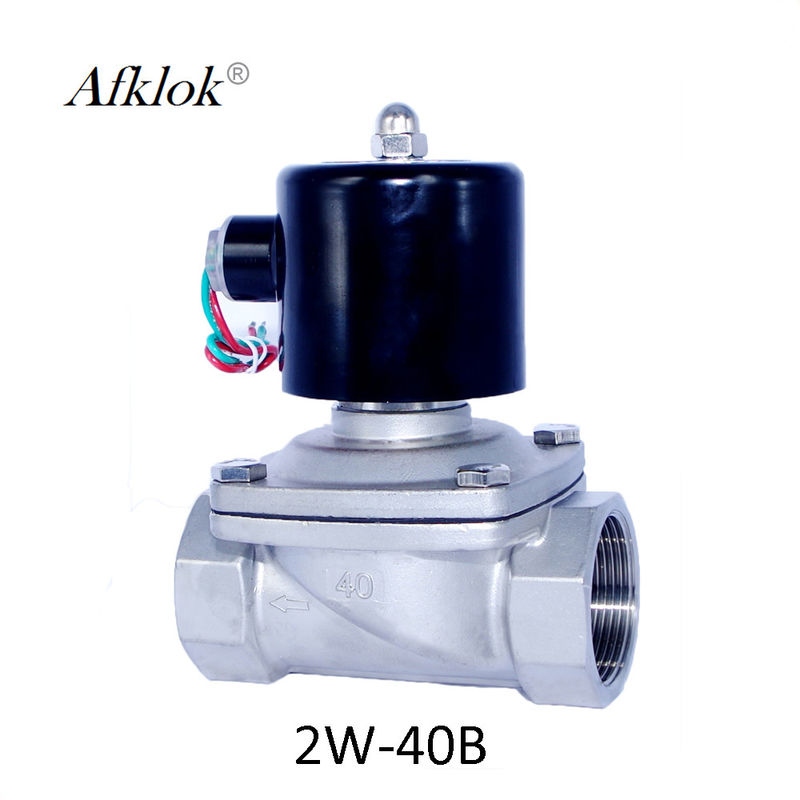

Model Number: 2W-40B
Payment & Shipping Terms
Minimum Order Quantity: 1 - 9 Sets
Price: Negotiable
Packaging Details: White box + Export packing
Supply Ability: 30000 Set/Sets per Week
Power: |
Solenoid |
Media: |
Water |
Port Size: |
1-1/2" |
Size: |
1-1/2 Inch |
Seal: |
NBR VITON EPDM |
Power: |
Solenoid |
Media: |
Water |
Port Size: |
1-1/2" |
Size: |
1-1/2 Inch |
Seal: |
NBR VITON EPDM |
DESIGN FEATURES | |
1. Direct acting | |
2. Fit for air, water, oil , the neutral gas liquid. | |
3. Type: normally closed. | |
4.Pipe size from 1/8' to 2' . | |
5. Service voltage : AC380V, 220V,110V,24V DC24,12V | |
6.Thread connnector : G, NPT | |
7. Material: Stainless steel | |
8.Large flow. |
Model NO. | 2W-025-06 | 2W-025-08 | 2W-040-10 | 2W-160-10 | 2W-160-15 |
Pipe size | 1/8' | 1/4' | 3/8' | 1/2' | |
Orifice size | 2.5mm | 4mm | 4mm | 16mm | 16mm |
CV value | 0.23 | 0.6 | 4.8 | 4.8 | |
Fluid | Air water oil , the neutral gasliquid | ||||
Service voltage | AC380V AC220V AC110V AC24V DC24V DC12V ( allow ± 10% ) | ||||
Operating | Direct acting | Type | |||
Body Material | Stainless Steel | viscosity | |||
Working pressure | ( water, air ) : 0~10 kgf/cm² ( oil ) : 0~7 kgf/m² | ||||
Material of seal | Standard : below 80℃ fluid temperature use NBR , below 120℃ use EPDM, below 150℃ use VISTON | ||||
Model NO. | 2W-200-20 | 2W-250-25 | 2W-320-32 | 2W-400-40 | 2W-500-50 |
Pipe size | 3/4' | 1' | 1 1/4'' | 1 1/2'' | 2'' |
Orifice size | 20mm | 25mm | 32mm | 40mm | 50mm |
CV value | 7.6 | 12 | 24 | 29 | 48 |
Fluid | Air water oil, the neutral gasliquid | ||||
Servise voltage | AC380V AC220V AC110V AC24V DC24V DV12V ( allow ± 10%) | ||||
Operating | Type | Normally Closed | |||
Body Material | viscosity | ( Below )20CST | |||
Working pressure | ( water, air ) :0~10 kgf/cm² ( oil ) : 0~7 kgf/m² | ||||
Material of seal | Standard : below 80℃ fluid temperature use NBR, below 120℃ use EPDM, below 150℃ use VITON | ||||
