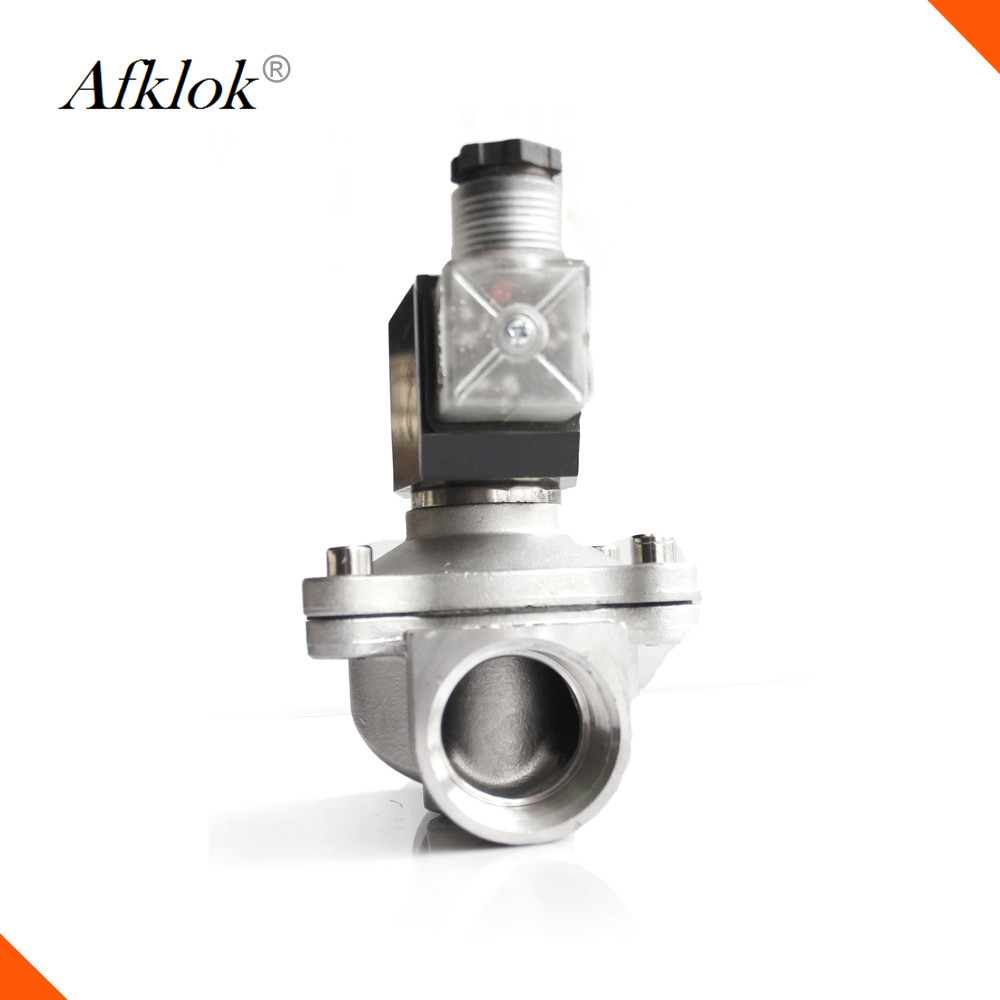

Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Certification: CE
Model Number: 2W-250-25B
Payment & Shipping Terms
Minimum Order Quantity: 1 - 9 Sets
Price: Negotiable
Packaging Details: White box + Export packing
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000 Set/Sets per Week
Application: |
Tube & Pipe |
Material: |
Stainless Steel |
Temperature Of Media: |
Medium Temperature |
Pressure: |
Low Pressure |
Power: |
Solenoid |
Media: |
Water |
Port Size: |
1" |
Structure: |
Diaphragm |
Size: |
1 Inch |
Orifice Size: |
25 Mm |
Medium: |
Water Oil Gas |
Working Pressure: |
(water, Air ): 0-10bar, (Oil): 0-7bar |
Applicable Medium: |
Water/ Gas / Oil |
Type: |
Normally Closed |
Seal: |
NBR VITON EPDM |
Standard Or Nonstandard: |
Standard |
Port: |
ShenZhen |
Application: |
Tube & Pipe |
Material: |
Stainless Steel |
Temperature Of Media: |
Medium Temperature |
Pressure: |
Low Pressure |
Power: |
Solenoid |
Media: |
Water |
Port Size: |
1" |
Structure: |
Diaphragm |
Size: |
1 Inch |
Orifice Size: |
25 Mm |
Medium: |
Water Oil Gas |
Working Pressure: |
(water, Air ): 0-10bar, (Oil): 0-7bar |
Applicable Medium: |
Water/ Gas / Oil |
Type: |
Normally Closed |
Seal: |
NBR VITON EPDM |
Standard Or Nonstandard: |
Standard |
Port: |
ShenZhen |
DESIGN FEATURES
|
|
1. Direct acting
|
|
2. Fit for air, water, oil , the neutral gas liquid.
|
|
3. Type: normally closed.
|
|
4.Pipe size from 1/8' to 2' .
|
|
5. Service voltage : AC380V, 220V,110V,24V DC24,12V
|
|
6.Thread connnector : G, NPT
|
|
7. Material: Stainless steel
|
|
8.Large flow.
|
Model NO.
|
2W-025-06
|
2W-025-08
|
2W-040-10
|
2W-160-10
|
2W-160-15
|
Pipe size
|
1/8'
|
1/4'
|
3/8'
|
1/2'
|
|
Orifice size
|
2.5mm
|
4mm
|
4mm
|
16mm
|
16mm
|
CV value
|
0.23
|
0.6
|
4.8
|
4.8
|
|
Fluid
|
Air water oil , the neutral gasliquid
|
||||
Service voltage
|
AC380V AC220V AC110V AC24V DC24V DC12V ( allow ± 10% )
|
||||
Operating
|
Direct acting
|
Type
|
|||
Body Material
|
Brass
|
viscosity
|
|||
Working pressure
|
( water, air ) : 0~10 kgf/cm² ( oil ) : 0~7 kgf/m²
|
||||
Material of seal
|
Standard : below 80℃ fluid temperature use NBR , below 120℃ use EPDM, below 150℃ use VISTON
|
Model NO.
|
2W-200-20
|
2W-250-25
|
2W-320-32
|
2W-400-40
|
2W-500-50
|
Pipe size
|
3/4'
|
1'
|
1 1/4‘’
|
1 1/2‘’
|
2‘’
|
Orifice size
|
20mm
|
25mm
|
32mm
|
40mm
|
50mm
|
CV value
|
7.6
|
12
|
24
|
29
|
48
|
Fluid
|
Air water oil, the neutral gasliquid
|
||||
Servise voltage
|
AC380V AC220V AC110V AC24V DC24V DV12V ( allow ± 10%)
|
||||
Operating
|
Type
|
Normally Closed
|
|||
Body Material
|
viscosity
|
( Below )20CST
|
|||
Working pressure
|
( water, air ) :0~10 kgf/cm² ( oil ) : 0~7 kgf/m²
|
||||
Material of seal
|
Standard : below 80℃ fluid temperature use NBR, below 120℃ use EPDM, below 150℃ use VITON
|
Packaging
|
|
Size
|
17cm*17cm*17cm
|
Weight
|
Different size has different weight
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). Or according to customers special request.
|
