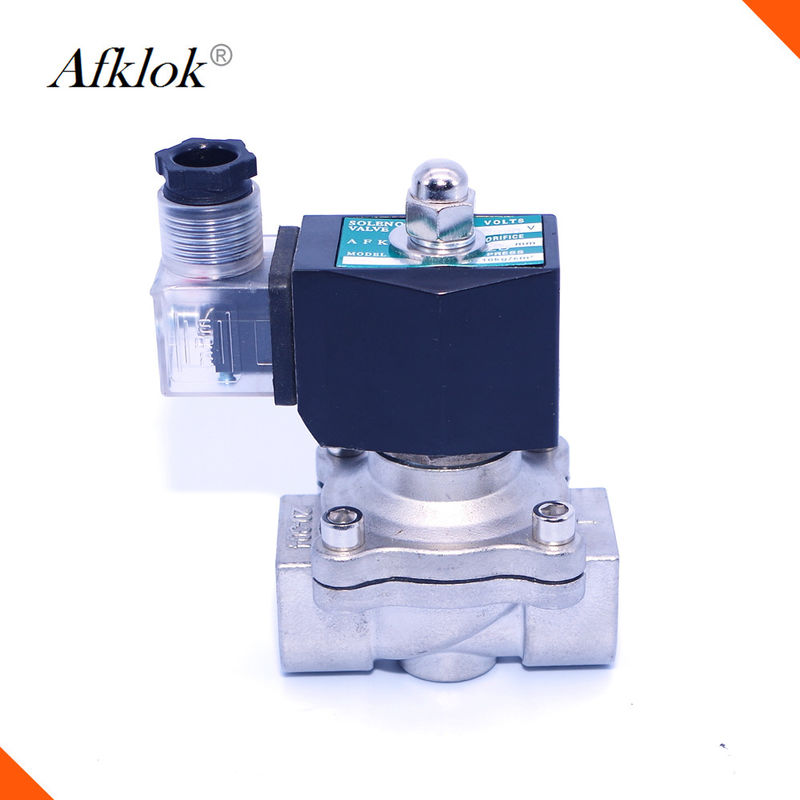

Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Certification: CE
Model Number: 2W-320-32B
Payment & Shipping Terms
Minimum Order Quantity: 10 - 49 Pieces
Price: Negotiable
Packaging Details: pp box + export carton
Supply Ability: 5000 Piece/Pieces per Week
Material: |
Stainless Steel |
Port Size: |
1-1/4" |
Structure: |
Diaphragm |
Size: |
3/8", 1/2", 1" 1-1/4", 1-1/2",2" |
End Connection: |
BSP, NPT |
Working Pressure: |
0-10bar |
Material: |
Stainless Steel |
Port Size: |
1-1/4" |
Structure: |
Diaphragm |
Size: |
3/8", 1/2", 1" 1-1/4", 1-1/2",2" |
End Connection: |
BSP, NPT |
Working Pressure: |
0-10bar |
|
Pipe size |
3/8" |
1/2" |
3/4" |
1" |
1-1/4" |
1-1/2" |
2" |
|
Orfice size
|
16mm |
16mm |
20mm |
25mm |
32mm |
40mm |
50mm |
|
Cv value
|
4.8 |
4.8 |
7.6 |
12 |
24 |
29 |
48 |
|
Fluid
|
Air, water, ol, the neutral gas,liquid
|
||||||
|
Voltage
|
AC380V,AC220V,AC110V,AC24V,DC24V, (allow)±10%
|
||||||
|
Operating
|
Pilot operating
|
Type
|
Normally closed
|
||||
|
Body material
|
stainless teel 304
|
viscosity
|
(Below)20CST
|
||||
|
Working pressure
|
Water, air;0-10bar oil:0-7bar
|
||||||
|
Material of seal |
Standard: below 80 °C fuild temperature use NBR below 120°C use EPDM below 150 °C use VITON
|
||||||
1. What media is used for? water, oil, gas or others?
2. How much is working pressure?
3. What size do you need?
4. What is voltage?
5. What type do you need? normally closed or normally opened?
6. If you have special demands, pls advise media temperature and thread type.
