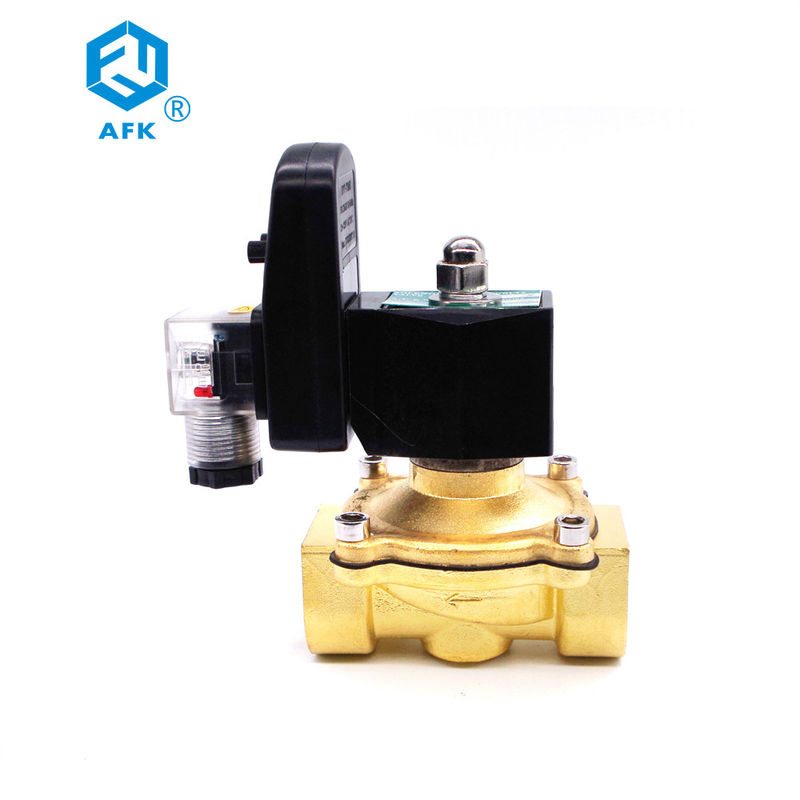

Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Certification: CE
Model Number: 2W-500-50
Payment & Shipping Terms
Minimum Order Quantity: 10 - 99 Pieces
Price: Negotiable
Packaging Details: pp bag+inner box+ export carton
Supply Ability: 50000 Piece/Pieces per Week
Body Material: |
Brass, Ss304 |
Size: |
1/8", 1/4", 3/8", 1/2", 3/4" ,1", 1-1/4",1-1/2", 2" |
Max. Working Pressure: |
10bar |
Operation: |
Direct Acting |
Voltage: |
220VAC, 12VDC, 24VDC, 24VAC, 110VAC |
Warranty: |
1year |
Body Material: |
Brass, Ss304 |
Size: |
1/8", 1/4", 3/8", 1/2", 3/4" ,1", 1-1/4",1-1/2", 2" |
Max. Working Pressure: |
10bar |
Operation: |
Direct Acting |
Voltage: |
220VAC, 12VDC, 24VDC, 24VAC, 110VAC |
Warranty: |
1year |
|
2W series
|
Model NO.
|
pipe size
|
Orifice size
|
CV
|
|
Size range |
2W-025-06
|
1/8"
|
2.5mm
|
0.23
|
|
2W-025-08
|
1/4"
|
4mm
|
||
|
2W-040-10
|
3/8"
3/8"
|
4mm
|
0.6
|
|
|
2W-160-10
|
16mm
|
4.8
|
||
|
2W-160-15
|
1/2"
|
16mm
|
4.8
|
|
|
2W-200-20
|
3/4"
|
20mm
|
7.6
|
|
|
12W-250-25
|
1"
|
25mm
|
12
|
|
|
2W-320-32
|
1-1/4"
|
32mm
|
24
|
|
|
2W-400-40
|
401-1/2"
|
40mm
|
29
|
|
|
2W-500-50
|
2"
|
50mm
|
48
|
|
|
Application
|
Air, water, oil, the neutral gas liquid
|
|||
|
Operating
|
direct acting
|
type
|
normally closed
|
|
|
body material
|
brass
|
viscosity
|
(below) 20CST
|
|
|
Working pressure
|
0-10abr (water, air), 0-7bar(oil)
|
|||
|
Voltage
|
220VAC, 24VAC, 24VDC, 12VDC, 110VAC,38VAC (allow ±10%)
|
|||
|
|
-5-80℃ (Normal)
|
-5-120℃
|
-5-150℃
|
|
|
NBR
|
EPDM
|
Viton
|
||
the direct-acting type diaphragm structure without pressure to open to extend the using field.
Using the plate diaphragm structure opening and closing with reliable. Then extent product life.
Can choose plastic type,. Explosion-proof energy-saving.
